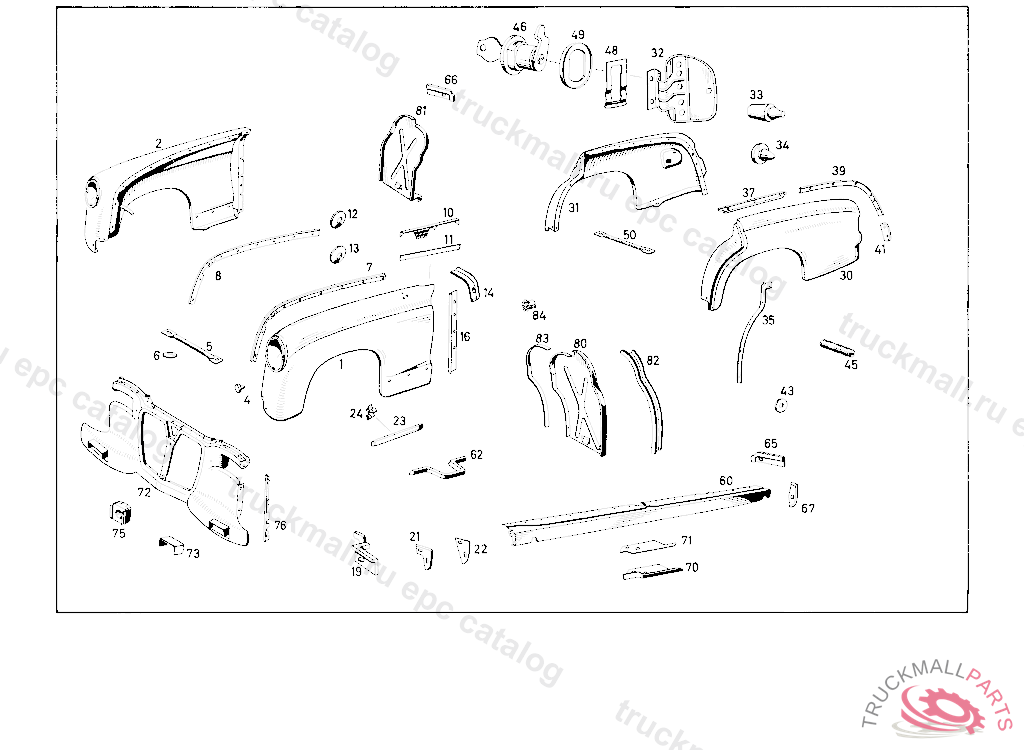

Поз.
Артикул
Описание
1
FRONT FENDER, LEFT
2
FRONT FENDER, RIGHT
4
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
5
STRUT FOR FRONT FENDER
6
WASHER
7
SEALING STRAP, LEFT FRONT FENDER AT WHEEL ARCH
8
SEALING STRAP FOR FRONT MUDGUARD, RIGHT, AT WHEEL ARCH
10
SEALING STRAP WINDSCREEN FOR FRONT MUDGUARD AT FRONT WALL STATE COLOUR WHEN ORDERING
11
ADHESIVE TAPE 6 MM DIA.50 MM LONG, ORDER BY THE METER
12
WASHER
13
WASHER
14
GASKET, LEFT. SEALING STRAP, LEFT FOR FRONT MUDGUARD AT FRONT WALL
16
SEALING STRAP, LEFT AT HINGE SIDE FOR FRONT MUDGUARD AT ENTRANCE PLATE PROFILE NO. 000 987 45 30
18
WASHER
19
GASKET, LEFT, INSIDE. SEALING, LEFT, INSIDE FOR FRONT MUDGUARD AT ENTRANCE SILL
21
GASKET, LEFT AND RIGHT, OUTSIDE FRONT FENDER AT ENTRANCE SILL
22
SHIM FOR FROM MUDGUARD AT ENTRANCE SILL
23
ORNAMENTAL BAR FOR FRONT MUDGUARD
24
SPREADER CLAMP FOR ORNAMENTAL BAR TO REAR DOOR, BOTTOM
30
REAR FENDER, LEFT
31
REAR FENDER. REAR MUDGUARD WITH FLAP, RIGHT
32
FLAP WITH HINGE. FLAP AT REAR FENDER, RIGHT
33
RUBBER BUFFER
34
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
35
SEALING STRAP, LEFT. SEALING STRAP, WHEEL ARCH, LEFT LOCK SIDE FOR REAR MUDGUARD AT BODY OR WHEEL AR ARCH PAN RESP.
37
SEALING STRAP, LEFT FROM EYEBOLT AND KEY TO REAR COVER GROOVE FOR REAR MUDGUARD AT BODY AND WHEEL ARCH
39
SEALING STRAP, LEFT. SEAL FROM REAR GROOVE TO CENTER PART, LEFT, BOTTOM
41
SEALING STRAP. GASKET FOR REAR MUDGUARD AND CENTER PIECE, BOTTOM
43
RUBBER RING , Replaced By: A0009873841
45
STUD BOLT FOR REAR MUDGUARD AT BODY OR WHEEL ARCH PAN, RESP.
46
LOCK FOR FLAP AT REAR MUDGUARD WITH KEY LOCKING SAME AS AT DOOR HANDLE
48
LOCK
49
RUBBER WASHER BETWEEN LOCK AND REAR LID
50
STRUT FOR FRONT FENDER
60
ENTRANCE PLATE, LEFT. ENTRANCE SILL, LEFT
62
GASKET AT CENTER PILLAR UNDER ENTRANCE SILL
65
GASKET, LEFT. SEALING STRAP, LEFT FOR FRONT MUDGUARD AT FRONT WALL
66
GASKET, RIGHT FOR FRONT MUDGUARD AT FRONT WALL FROM CHASSIS NO. 55 10780
67
GASKET. SEAL RUBBER BLACK BETWEEN ENTRANCE SILL AND REAR MUDGUARD, LEFT AND RIGHT, OUTSIDE
70
DOOR SEALING, LEFT ON ENTRANCE SILL BETWEEN DRIVER'S DOOR AND REAR DOOR
71
FIXING PLATE, LEFT FOR DOOR SEALING RUBBER
72
COVER PLATE, FRONT
73
COVERING, FRONT, LEFT , WITH MODEL 120.0 UP TO CHASSIS 007600 WITH MODEL 120.1 UP TO CHASSIS 008260
75
NUT RETAINER , Replaced By: A0019906791
76
SEALING STRAP FOR COVER PLATE AT FRONT MUDGUARD STATE COLOUR WHEN ORDERING
80
PARTITION PLATE, LEFT UNDER FRONT MUDGUARD UP TO CHASSIS 7520473 BORE A HOLE WITH A DIA. OF 5.1 MM IN REINFORCEMENT PLATE UNDER FRONT MUDGUARD
81
PARTITION PLATE, RIGHT UNDER FRONT MUDGUARD UP TO CHASSIS 7504454 BORE A HOLE WITH A DIA. OF 5.1 MM IN REINFORCEMENT PLATE UNDER FRONT MUDGUARD
82
RUBBER SEAL , Replaced By: A1108840098
83
ADHESIVE TAPE , Replaced By: A0019875646
84
NUT RETAINER , Replaced By: A0009900148, +001N007976005202
999
WASHER , Replaced By: A1119903640
999
NUT RETAINER DRIVE TO REAR PILLAR
999
ENTRANCE PLATE, RIGHT
999
SEALING STRAP, RIGHT. SEALING STRAP RIGHT AT HINGE SIDE FOR FRONT MUDGUARD AT ENTRANCE PLATE PROFILE NO. 000 987 45 30
999
SEALING STRAP, RIGHT. SEALING STRAP AT WHEEL ARCH, RIGHT SIDE OF LOCK AT REAR MUDGUARD
999
SEALING STRAP, RIGHT. SEALING STRAP FROM REAR COVER GROOVE TO CENTER PIECE, RIGHT BOTTOM FOR REAR MUDGUARD AT BODY OR WHEEL ARCH PAN, RESP.
999
SEALING STRAP, RIGHT. SEALING STRAP FROM EYEBOLT AND KEY TO REAR COVER GROOVE, RIGHT AT REAR MUDGUARD
999
FIXING PLATE, RIGHT FOR DOOR SEALING RUBBER
999
DOOR SEALING, RIGHT ON ENTRANCE PLATE BETWEEN DRIVER'S DOOR AND REAR DOOR
999
GASKET, RIGHT, INSIDE FOR FRONT MUDGUARD AT ENTRANCE SILL
999
PARTITION PLATE, LEFT FOR AUTOMATIC ANTENNA SPECIAL REQUEST
999
FRONT FENDER, LEFT , FOR CARS WITH TIRES 6.40-15
999
FRONT FENDER, RIGHT , FOR CARS WITH TIRES 6.40-15
999
COVERING, FRONT, RIGHT , WITH MODEL 120.0 UP TO CHASSIS 007600 WITH MODEL 120.1 UP TO CHASSIS 008260
