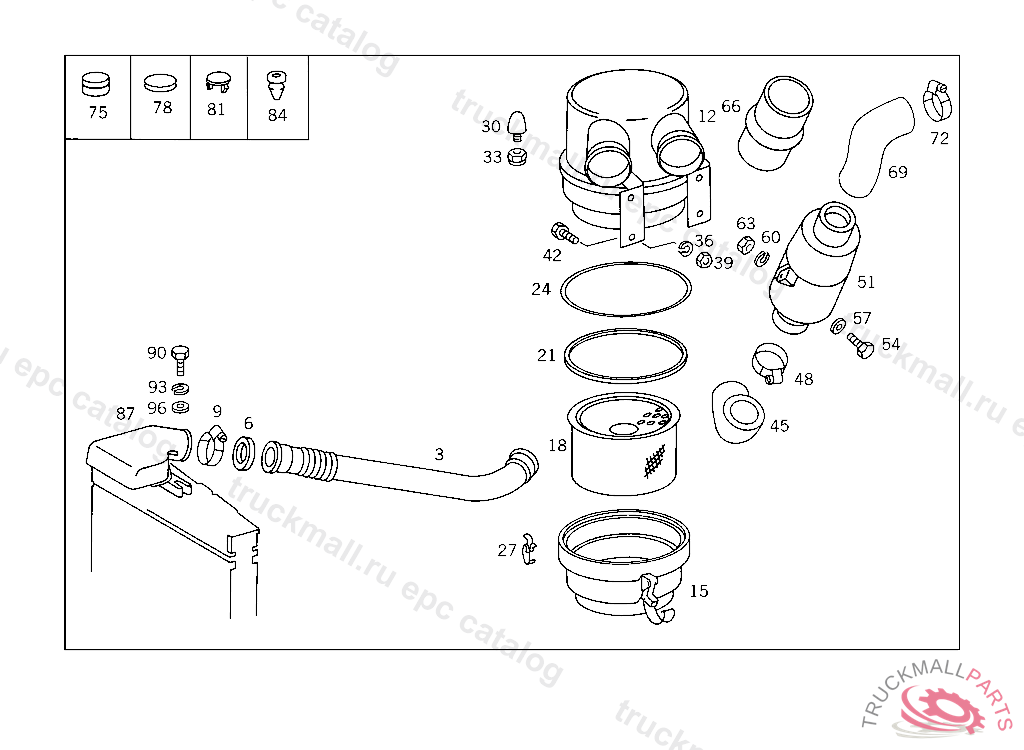

Поз.
Артикул
Описание
3
AIR INTAKE PIPE TO OIL BATH AIR CLEANER,4 1972178 000001
3
HOSE ,4 197216, Replaced By: A3145280508, +002A3145280060
6
SEAL RING TO OIL BATH AIR CLEANER,4 1972178 000001
9
CLAMP HOSE 70-90X13 MM
9
CLAMP , Replaced By: N000000000674
12
AIR CLEANER OIL BATH MANN & HUMMEL
12
AIR CLEANER , Replaced By: A0070941502
15
FILTER BOWL LOWER PART
18
FILTER ELEMENT
21
GASKET INSIDE
24
GASKET OUTSIDE
27
FASTENER
30
RUBBER BUFFER OIL BATH AIR CLEANER MOUNTING,701361-965592
33
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
33
NUT , Replaced By: N913004008001
36
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
39
NUT STRAP TO BRACKET
39
NUT , Replaced By: N910113010000
39
NUT
42
SCREW BRACKET TO SIDE MEMBER
42
SCREW , Replaced By: N304017010002
42
SCREW END PIECE TO EXHAUST PIPE M 10X25
42
SCREW END PIECE TO EXHAUST PIPE M 10X25
42
SCREW HEATING PIPE TO BRACKET M 10X30
42
SCREW BRACKET TO CROSS CONNECTION STRUT
42
SCREW , Replaced By: N304017008034
45
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE,035923
45
HOSE , Replaced By: A3140941082
45
HOSE , Replaced By: A3140941082
45
HOSE OIL BATH AIR CLEANER,611434035922
45
HOSE OIL BATH AIR CLEANER,611433 ORDER BY THE METER
48
CLAMP HOSE 70-90X13 MM
48
CLAMP , Replaced By: N000000000674
51
AIR INTAKE PIPE
51
AIR INTAKE PIPE
51
AIR INTAKE PIPE , Replaced By: A3095280608
51
AIR CLEANER INTAKE MUFFLER,611434035922
51
AIR CLEANER ,611433, Replaced By: A3140900204, +001A3140900082
54
SCREW PIPE CLAMP
54
SCREW , Replaced By: N304017008021
57
WASHER EXHAUST MUFFLER TO STRAP
57
WASHER , Replaced By: N000125008443
60
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
63
NUT
66
BOOT INTAKE PIPE TO CAB,035922
66
BOOT , Replaced By: A3140940291
69
HOSE FROM AIR INTAKE PIPE TO ENGINE,4 657299
69
HOSE , Replaced By: A3140940882, +001A3140100878
72
CLAMP HOSE 70-90X13 MM
72
CLAMP , Replaced By: N000000000674
75
EXPANSION PLUG BREATHER HOSE THRU FLOOR PLATE,775095
78
GROMMET ENGINE COVERING
81
CAP STARTER PILOT, 808268
84
PLUG FIRE WALL,RIGHT
87
FAN SHROUD AIR INTAKE,4 755510
87
FAN SHROUD AIR INTAKE,4 755509
87
FAN SHROUD AIR INTAKE,4 755509
90
SCREW IN CASE OF SUBSEQUENT INSTALLATION
93
LOCK WASHER BRACKET TO STEERING COLUMN END
96
WASHER BOOT TO CAB FLOOR
96
WASHER , Replaced By: N000433005304
999
BRACKET AIR CLEANER,035922
999
BRACKET AIR CLEANER,035923701360
999
BRACKET AIR CLEANER,965592
