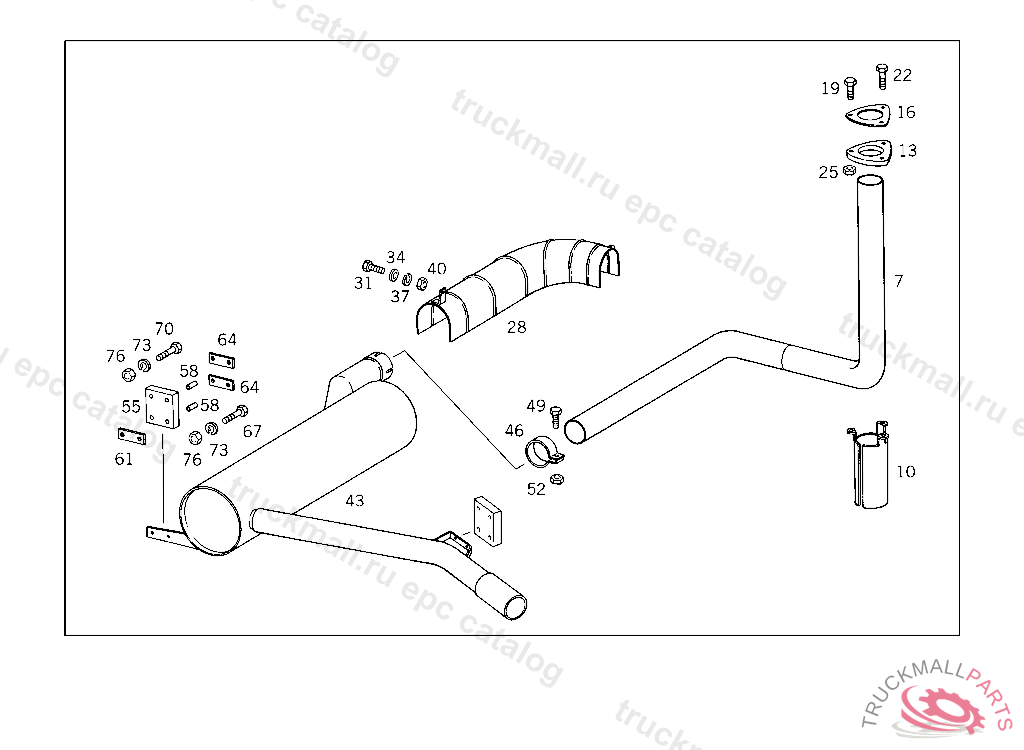

Поз.
Артикул
Описание
7
EXHAUST PIPE FRONT
10
PROTECTIVE PLATE
13
FLANGE EXHAUST PIPE TO EXHAUST MANIFOLD
16
FLANGE GASKET , Replaced By: A4424920280
19
SCREW RADIATOR M 10X45
22
SCREW LEFT BEARING BRACKET TO CASE
25
NUT END PIECE TO EXHAUST PIPE
25
NUT CONNECTING PIPE TO EXHAUST BRAKE
28
PROTECTIVE PLATE
31
SCREW COMPRESSED AIR ELBOW
34
WASHER , Replaced By: N000125008443
37
LOCK WASHER
40
NUT LEVER TO SHIFTING SHAFT
43
EXHAUST MUFFLER
46
CLAMP EXHAUST PIPE TO MUFFLER
49
SCREW COMPRESSED AIR ELBOW
52
NUT LEVER TO SHIFTING SHAFT
55
DAMPING PAD EXHAUST MUFFLER TO SUPPORT
58
SPACER TUBE BRACKET
61
INSULATION EXHAUST MUFFLER TO SUPPORT
64
BASE PLATE EXHAUST MUFFLER TO SUPPORT
67
SCREW EXHAUST MUFFLER TO SUBSTRUCTURE M 8X1X45
70
SCREW BRACKET TO SUPPORT M 8X35
73
LOCK WASHER
76
NUT
999
999
INSULATION EXHAUST MUFFLER TO SUBSTRUCTURE, UP TO CHASSIS 13021697
999
999
999
DAMPING PAD
999
BASE PLATE EXHAUST MUFFLER TO SUBSTRUCTURE, UP TO CHASSIS 13021697
