Поз.
Артикул
Описание

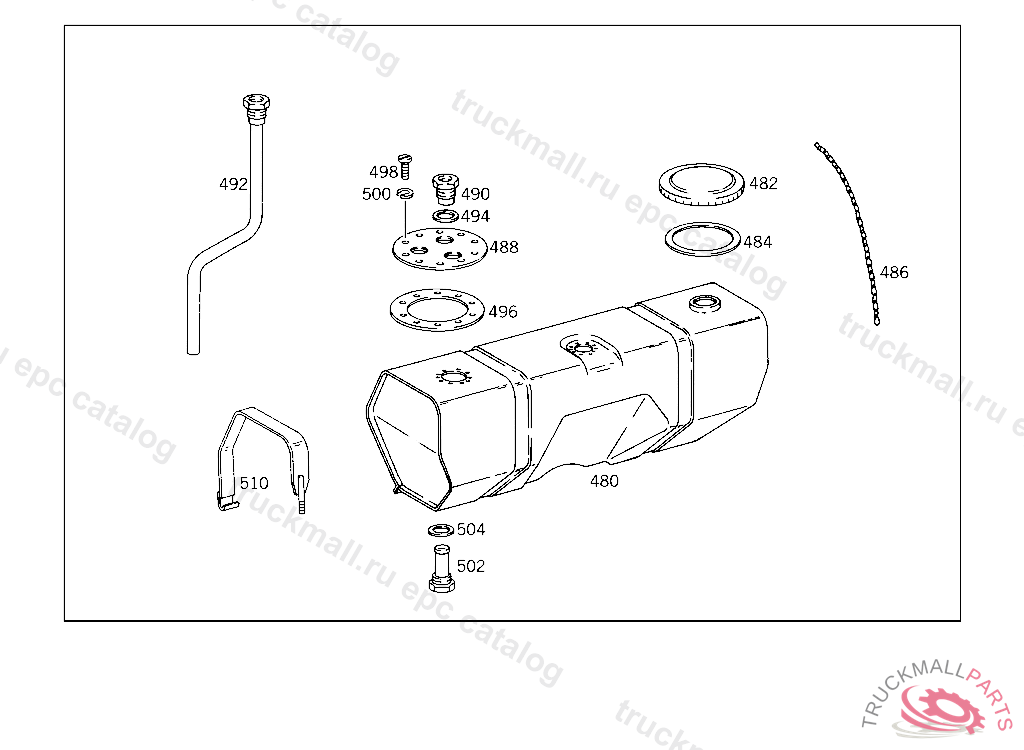

480
FUEL TANK
482
FILLER CAP
484
DICHTUNG. SEAL RINGTO 312 470 12 05
486
CHAIN FILLER CAP
488
FLANGE
490
FITTING
492
RISING PIPE
494
SEAL RING LOCKING VALVE 20X24
496
GASKET
498
SCREW CLAMP TO BRACKET
500
LOCK WASHER LINE MOUNTING
502
FUEL STRAINER AT TANK
502
FUEL STRAINER AT TANK
504
SEAL RING
510
STRAP FUEL TANK TO SUPPORT
999
LOCK WASHER
999
LOOM TIE , Replaced By: A0029978790
999
LOOM TIE LEAK LINE TO CYLINDER HEAD,NO. 341.042,044A 073578
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO SIDE MEMBER,5 105538
999
SCREW COMPRESSED AIR ELBOW
999
SCREW RIGHT COVERING
999
SCREW
999
LOCK WASHER CLAMP TO BRACKET
999
COTTER PIN DRAG LINK TO LEVER
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW COMPRESSED AIR LINE BELOW BATTERY BRACKET
999
RAIL , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A3218950070
999
RADIATOR CAP
999
RADIATOR CAP , Replaced By: A4315017015
999
FUEL STRAINER
999
UNIVERSAL JOINT YOKE , Replaced By: A3024110405
999
CABLE HARNESS FROM REGULATOR AND CUT-OUT TO ALTERNATOR
999
BRACKET
999
LEVER CLUTCH LINKAGE
999
KNOB WITH SPINDLE AND WIRE CABLE
999
RUBBER STRIP , Replaced By: A3459837391
999
BUSHING MANUAL CONTROL,D 249954
999
SPRING CLUTCH PEDAL
999
UNIVERSAL JOINT YOKE
999
SEALING CORD
