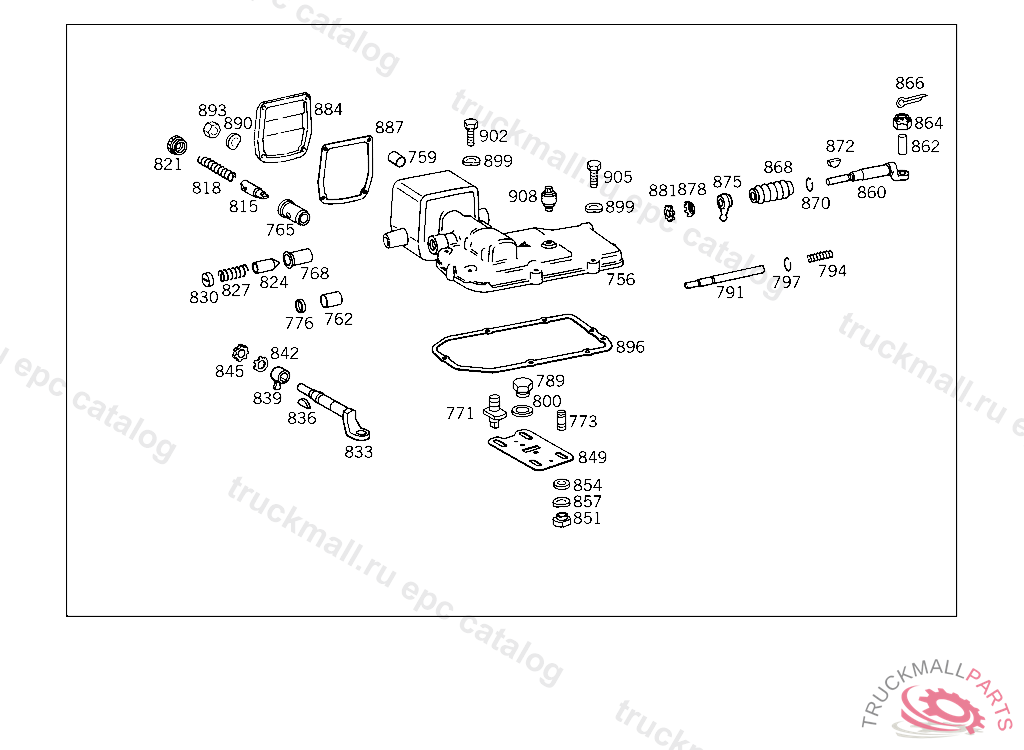

Поз.
Артикул
Описание
756
TRANSMISSION CASE COVER , Replaced By: A3212613105
756
TRANSMISSION CASE COVER TOP
759
BUSHING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
762
BUSHING20X30 MM,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
765
BUSHING
768
BUSHING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
771
GUIDE PIN , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
771
GUIDE PIN SHIFT CASE,4750584 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
771
INTERLOCK PLUG , Replaced By: A3442657044
773
STUD EXHAUST MANIFOLD M 8X25
776
EXPANSION PLUG
789
SCREW PLUG , Replaced By: N007604018101
791
PIN PRESSURE SWITCH
794
SPRING
797
LOCK
800
SEAL RING DETENT PLATE TO TRANSMISSION CASE TOP COVER
800
SEAL RING
815
THRUST PIECE
818
SPRING SHIFTING DOME, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MICROFICHE MODEL 712.0
821
PLUG CASE COVER,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
824
INTERLOCK PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
827
SPRING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
830
PLUG , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
833
SHIFTING ROD
833
SHIFTING ROD , Replaced By: A3212680029
836
WOODRUFF KEY FLANGE TO SHIFTING TUBE
839
SHIFTING FINGER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817
842
LOCK SHIFTING FINGER TO SHIFTING ROD,4 1471924 147193 SEE UNIT MICROFICHE,MODEL: 712.0014 147193 SEE UNIT MICROFICHE,MODEL: 712.001
842
LOCK PLATE , Replaced By: A3219940112
845
NUT SHIFTING ROD,4 1471924 147193 SEE UNIT MICROFICHE,MODEL: 712.0014 147193 SEE UNIT MICROFICHE,MODEL: 712.001
849
PLATE , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817
849
DETENT PLATE
851
NUT , FROM TRANSMISSION
854
WASHER DETENT PLATE TO COVER, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
857
SPRING WASHER
860
SHIFTING ROD
862
BUSHING
864
NUT ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
866
COTTER PIN DETENT PLATE TO COVER
868
BOOT , NOT USED
870
SNAP RING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
870
SNAP RING , NOT USED
872
WOODRUFF KEY FLANGE TO SHIFTING TUBE
875
SELECTOR LEVER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817
878
LOCK PLATE , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
878
LOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
881
NUT , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
884
TRANSMISSION CASE COVER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817
887
GASKET TRANSMISSION CASE SIDE COVER TO TRANSMISSION CASE TOP COVER
890
SPRING WASHER STEERING SHAFT BEARING TO CAB
893
NUT LEVER TO SHIFTING SHAFT
896
GASKET TRANSMISSION CASE TOP COVER
896
GASKET , Replaced By: A3212610680
899
SPRING WASHER STEERING SHAFT BEARING TO CAB
902
HEX. HEAD. SCREW ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
905
HEX. HEAD. SCREW TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
908
BREATHER TRANSFER CASE
999
CYLINDR. ROLLER BEARING MAIN SHAFT,REAR, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
GEAR 2ND SPEED
999
GEAR , Replaced By: A3442600844
999
GEAR
999
SYNCHRONIZER RING
999
GEAR
999
SYNCHRONIZER BODY 4TH AND 5TH SPEED, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
GEAR REVERSE SPEED
999
SYNCHRONIZER BODY 2ND AND 3RD SPEED
999
SNAP RING AS REQUIRED 2.93 MM, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
SNAP RING AS REQUIRED 2.83 MM, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
SNAP RING AS REQUIRED 2.78 MM,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
SNAP RING AS REQUIRED 2.73 MM, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
THREADED BUSHING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
SPRING , DISCONTINUED,PART IS NO LONGER REQUIRED
999
BALL SOCKET , DISCONTINUED,PART IS NO LONGER REQUIRED
999
SPACER WASHER AS REQUIRED 0.070 MM
999
SPACER WASHER0.15 MM
999
GASKET , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
