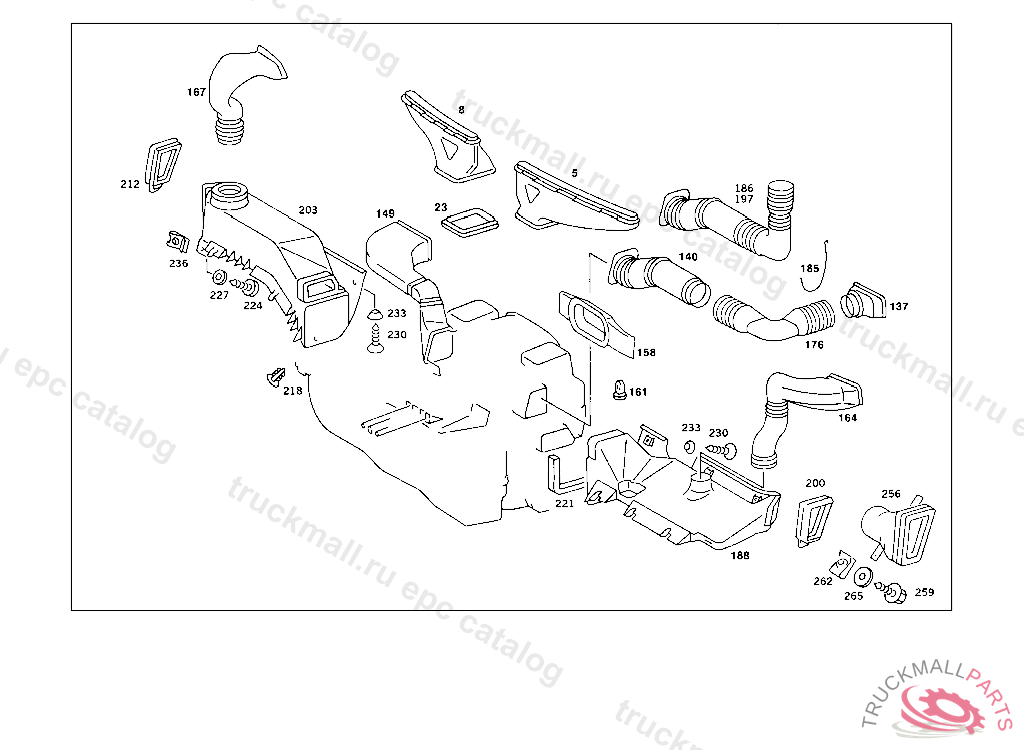

Поз.
Артикул
Описание
5
DEFROSTER NOZZLE INSTRUMENT PANEL,TO LEFT
8
DEFROSTER NOZZLE INSTRUMENT PANEL,TO RIGHT
23
SEAL DEFROSTER NOZZLE
137
DUCT BETWEN HEATER CASE AND LEFT FRESH AIR NOZZLE
140
DUCT BETWEN HEATER CASE AND LEFT FRESH AIR NOZZLE
149
AIR DUCT , Replaced By: A1268306644
149
AIR DUCT BETWEN HEATER CASE AND RIGHT FRESH AIR NOZZLE
158
HOSE BETWEN HEATER CASE AND CENTRAL FRESH AIR NOZZLE
161
RIVET HOSE TO CENTRAL FRESH AIR NOZZLE
164
AIR DUCT FROM AIR DUCT TO LEFT NOZZLE
167
DUCT FROM AIR DUCT TO RIGHT NOZZLE, FOR CO-DRIVER'S ONLY USED WITH AIRBAG
167
AIR DUCT FROM AIR DUCT TO RIGHT NOZZLE
176
HOSE AIR GUIDE, BETWEEN HEATER CASE AND LEFT FRESH AIR NOZZLE
176
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 376782, Replaced By: A1268322988
185
BRACKET HOSE TO FRONT CROSS MEMBER,OUTSIDE
186
DUCT BETWEN HEATER CASE & HOT AIR NOZZLE
186
DUCT BETWEN HEATER CASE & HOT AIR NOZZLE
186
DUCT , Replaced By: A1268317746
186
DUCT , Replaced By: A1268317646
188
AIR DUCT BETWEN HEATER CASE AND FRONT DOOR
197
DUCT BETWEN HEATER CASE & HOT AIR NOZZLE, RIGHT, FOR CO-DRIVER'S ONLY USED WITH AIRBAG
200
SEAL ,NO.9051I NO.9051I NO.9051I NO.8326I NO.8412I NO.6101 AI NO.3112I NO.7101I I NO.6122 BI
203
AIR DUCT BETWEN HEATER CASE AND RIGHT FRONT DOOR, FOR CO-DRIVER'S ONLY USED WITH AIRBAG
203
AIR DUCT BETWEN HEATER CASE AND RIGHT FRONT DOOR
212
SEAL AIR DUCT,NO.9051I NO.9051I NO.9051I NO.8326I NO.8412I NO.6101 AI NO.3112I NO.7101I I NO.6122 BI
218
CLIP FOOTREST
218
CLIP
221
SEAL AIR DUCT TO HEATER CASE
224
SHEET METAL SCREW FOOT PUMP TO BODY
227
WASHER BOOT TO CAB FLOOR
227
WASHER , Replaced By: N000433005304
230
SHEET METAL SCREW
230
SHEET METAL SCREW ELECTRIC CABLE TO CABLE DUCT
233
WASHER
236
LOCK COVERING TO INSTRUMENT PANEL,TOP
256
AIR DUCT RIGHT FRONT DOOR, FOR CO-DRIVER'S ONLY USED WITH AIRBAGNO.9051I NO.9051I NO.9051I NO.8326I NO.8412I NO.6101 AI NO.3112I NO.7101I I NO.6122 BI I
256
AIR DUCT LEFT FRONT DOOR
259
SHEET METAL SCREW CONTROL UNIT TO COVERING,LATERAL LEFT
262
LOCK BRACKET TO CROSS MEMBER
262
CLIP-TYPE NUT BRACKET TO RELAY PLATE, A 994528 F 110300
265
WASHER , Replaced By: N009021005205
265
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
