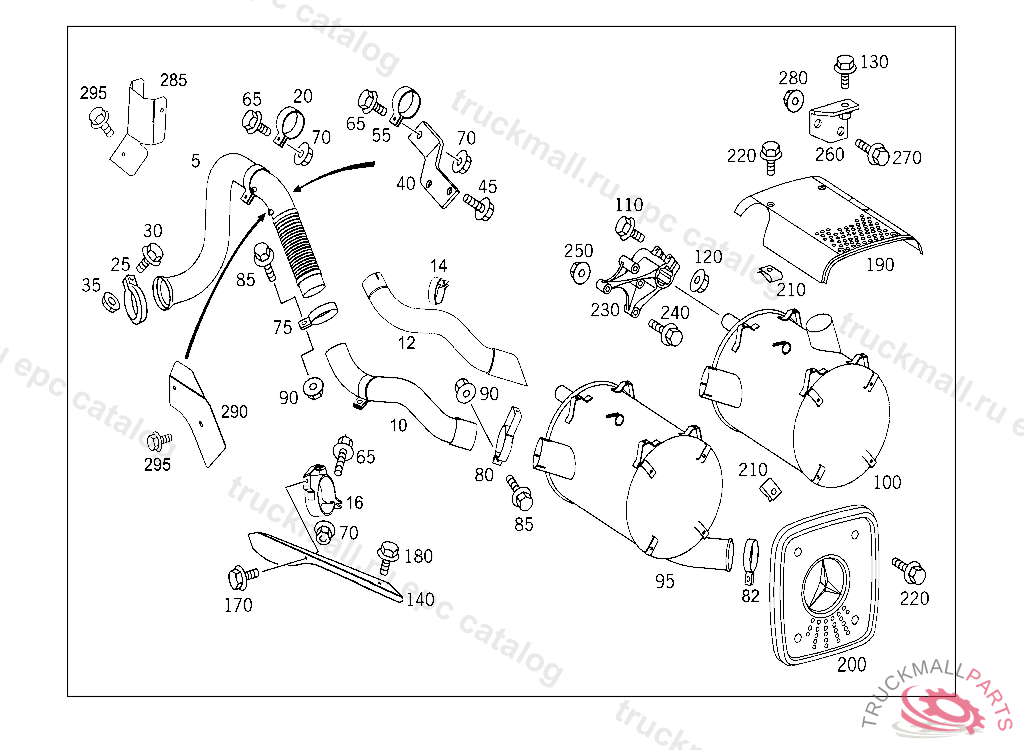

Поз.
Артикул
Описание
5
5
5
5
10
10
10
10
16
CLAMP HEAT PROTECTION PLATE ON EXHAUST PIPE
20
CLAMP MOUNTING PARTS
20
20
CLAMP , Replaced By: N071555090501
25
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
30
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
35
NUT HORN TO BRACKET M8
40
40
40
40
45
SCREWM 10X20
45
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
45
SCREW BRACKET TO CAB REAR PANEL M 8X20
45
SCREW , Replaced By: N910143008000
55
65
SCREW BRACKET TO SIDE MEMBER M10X35
70
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
75
CLAMP EXHAUST PIPE TO MUFFLER
75
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING, Replaced By: A6744920040
80
80
CLAMP END PIECE TO EXHAUST PIPE
82
85
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
85
SCREWM8X120,D 250888 NOT USED
85
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
90
NUT HORN TO BRACKET M8
90
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
95
EXHAUST MUFFLER
95
EXHAUST MUFFLER CONSTRUCTION SITE VEHICLE
95
95
95
100
EXHAUST MUFFLER
110
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
110
SCREW GENERATOR TO BRACKET
120
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
130
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
140
PROTECTIVE PLATE FRONT EXHAUST PIPE
170
HEXAGON HEAD BOLT
180
SCREW SPEED SENSOR TO REAR AXLE
190
PROTECTIVE PLATE AT MUFFLER
190
190
PROTECTIVE PLATE TOP
190
PROTECTIVE PLATE SHIELD, TOP SAR
200
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
210
NUT RETAINER , Replaced By: A0019902891
210
SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
220
SCREW BRACKET TO SIDE MEMBER M8X20
220
HEXAGON HEAD BOLT PROTECTIVE PLATE TO EXHAUST MUFFLER M8X12
220
SCREW PIPE ELBOW TO BRACKET M8X12
220
SCREW SPEED SENSOR TO REAR AXLE
230
BRACKET EXHAUST MUFFLER TO SIDE MEMBER,FRONT, NO.7390 IIIII
240
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
240
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
240
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
240
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
240
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
250
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
260
BRACKET EXHAUST MUFFLER TO SIDE MEMBER,REAR
270
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
280
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
285
PROTECTIVE PLATE FRONT
285
285
290
PROTECTIVE PLATE EXHAUST PIPE
295
SCREW SPEED SENSOR TO REAR AXLE
