Поз.
Артикул
Описание

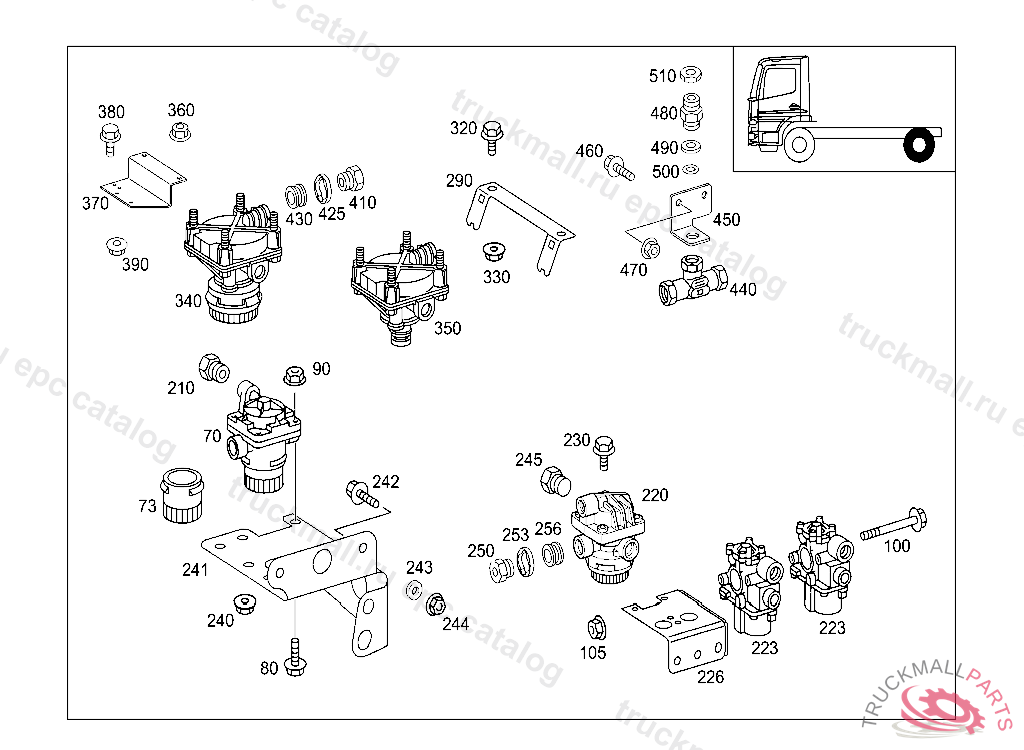

70
PRESSURE CONTROL VALVE. RELAY VALVE PARKING BRAKE WABCO, REPAIR IMPOSSIBLE
70
VALVE (RELAY VALVE)
73
MUFFLERBOSCH, TO 004 429 80 44
80
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
90
NUT HORN TO BRACKET M8
210
SCREW. UNION SCREW LINE CONNECTION
210
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
210
SCREW. UNION SCREW LINE CONNECTION
210
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
210
SCREW. UNION SCREW , Replaced By: A0009973734
223
VALVE FRONT AND REAR AXLE BRAKE PRESSURE KNORR 45.01
223
VALVE PRESSURE CONTROL VALVE ABS
253
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
253
LOCK , Replaced By: A0009945448
253
LOCK LINE CONNECTION
256
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
256
SEAL RING , Replaced By: A0009940747
256
LOCK RING LINE CONNECTION
410
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
410
SCREW. UNION SCREW LINE CONNECTION
