Поз.
Артикул
Описание

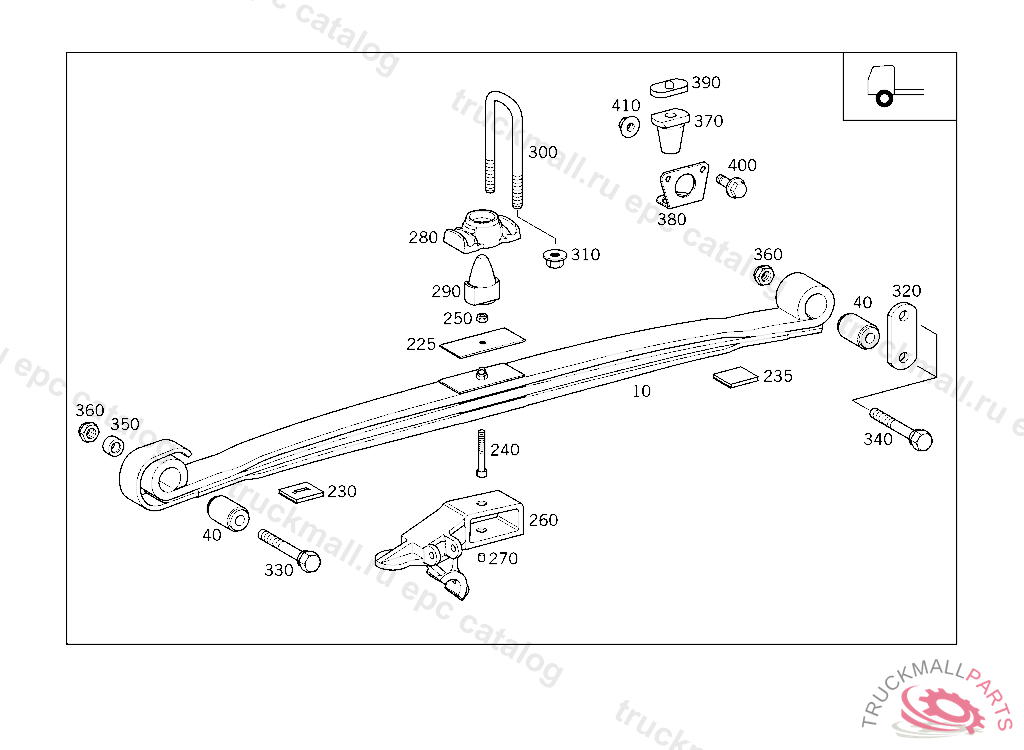

10
10
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
40
RUBBER MOUNTING , Replaced By: A0003223285
40
RUBBER MOUNTING , Replaced By: A0003223285
40
RUBBER MOUNTING , Replaced By: A0003223285
40
40
RUBBER MOUNTING
225
SHIM BETWEEN THE SPRING LEAVES
240
SCREW (SPRING BOLT)
250
NUT STEERING SUPPORT TO FRAME
260
260
SHIM (BRACKET) ANTI-ROLL BAR AND SHOCK ABSROBER RIGHT, NO.7390I I I I II
260
260
SHIM (BRACKET) ANTI-ROLL BAR AND SHOCK ABSORBER,LEFT, NO.7390I I I I II
260
260
270
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
270
PIN , Replaced By: A6573310074
270
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
280
PLATE FRONT SPRINGS TO FRONT AXLE, NO.7390I I I I II
280
280
PLATE FRONT SPRINGS TO FRONT AXLE, NO.7390I I I I II
280
SPRING CLAMP PLATE FRONT SPRINGS TO FRONT AXLE
280
PLATE , Replaced By: A9413310426
290
RUBBER BUFFER ON SPRING CLAMPING PLATE
290
RUBBER BUFFER ON SPRING CLAMPING PLATE
290
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 207MM
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 287MM
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 205MM
300
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 225MM
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 227MM
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 267MM
310
HEXAGON NUT W COLLAR MOUNTING PARTS M20X1.5
320
SHACKLE FRONT SPRING,REAR
330
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET M 24X180
340
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET M 24X150
350
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
360
HEXAGON NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M24X2
370
HELPER SPRING SPRING STOP
370
HELPER SPRING , Replaced By: A0003240908, +001A9413210040
380
BRACKET HELPER SPRING
400
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
410
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
