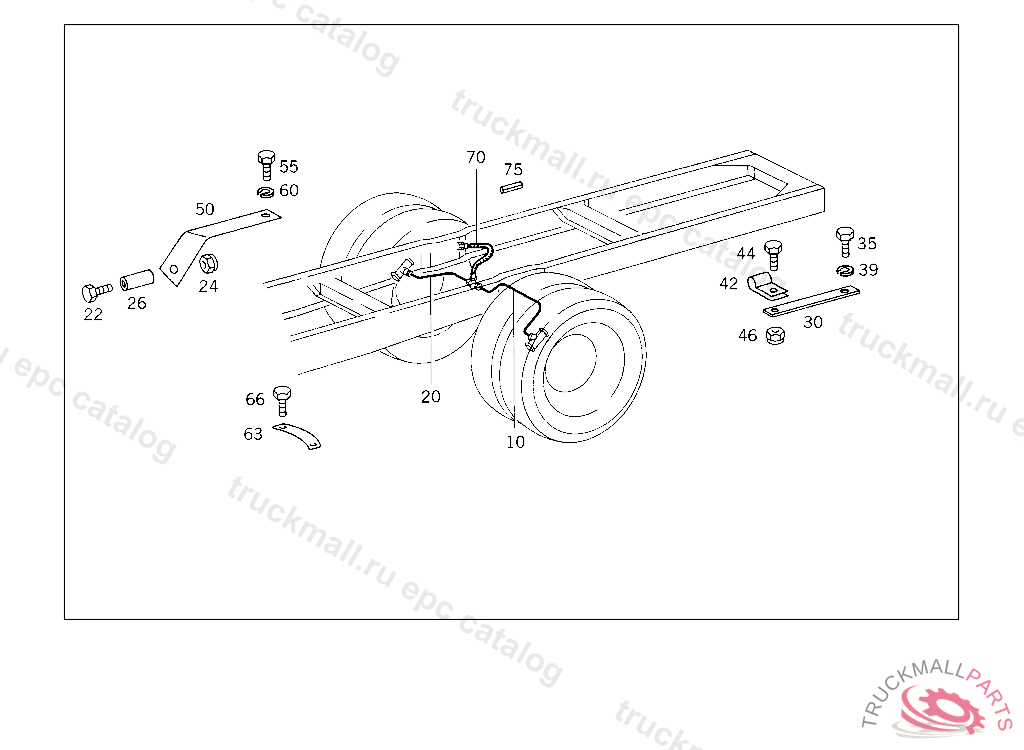

Поз.
Артикул
Описание
10
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1300 MM
10
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
10
LINE FROM TEST CONNECTION TO LEFT WHEEL CYLINDER 1350 MM,4 644237
20
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 800 MM,4 478330
20
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 700 MM,4 644237
20
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 900 MM
20
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1" 750 MM,4 478330
20
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 600 MM
22
SCREW , Replaced By: N304017008018
22
SCREW , Replaced By: N304017008034
22
SCREW SUPPORT TO FENDER
24
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
24
NUT , Replaced By: N913004008001
26
SPACER TUBE , Replaced By: A3872640974
26
PIN TEST CONNECTION TO REAR AXLE
26
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
30
BRACKET BRAKE LINE TO REAR AXLE
35
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
SCREW , Replaced By: N304017008016
39
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
42
CLAMP ,K 147121, Replaced By: N000000000319
42
CLAMP , Replaced By: N916016008200
42
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
44
SCREW , Replaced By: N304017006020
44
SCREW LICENSE PLATE TO BRACKET
44
SCREW CAB FLOOR COVERING M 6X25
46
NUT PUMP TO BRACKET
46
NUT , Replaced By: N913004006001
50
BRACKET TEST CONNECTION,4 645186
50
BRACKET TEST CONNECTION
55
SCREW , Replaced By: A0079903901
55
SCREW , Replaced By: N304017008016
55
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
55
SCREW CONSOLE TO FRAME SIDE MEMBER
60
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
60
LOCK WASHER FITTING TO BRACKET
63
SHIM BRACKET TO REAR AXLE HOUSING
66
SCREW BRACKET TO SIDE MEMBER
66
SCREW , Replaced By: N304017010002
70
BRAKE HOSE , Replaced By: A0024280735
70
BRAKE HOSE , Replaced By: A3454287135
70
BRAKE HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 424176, Replaced By: A0024280735
70
BRAKE HOSE , Replaced By: A0004280535
70
BRAKE HOSE600 MM
70
BRAKE HOSE
70
BRAKE HOSE
75
HOSE BRAKE LINE TO REAR AXLE,4 644238
999
CLAMP BRAKE LINE TO REAR AXLE,4 644238
999
BRACKET , Replaced By: A3812711640
999
BRACKET TEST CONNECTION
999
CLAMP , Replaced By: N916016008200
999
BRACKET DISTRIBUTOR TO BRACKET
999
CLAMP BRAKE LINE MOUNTING
999
BRAKE HOSE , Replaced By: A0024280135
999
BRAKE HOSE
999
BRAKE HOSE , Replaced By: A0024280735
