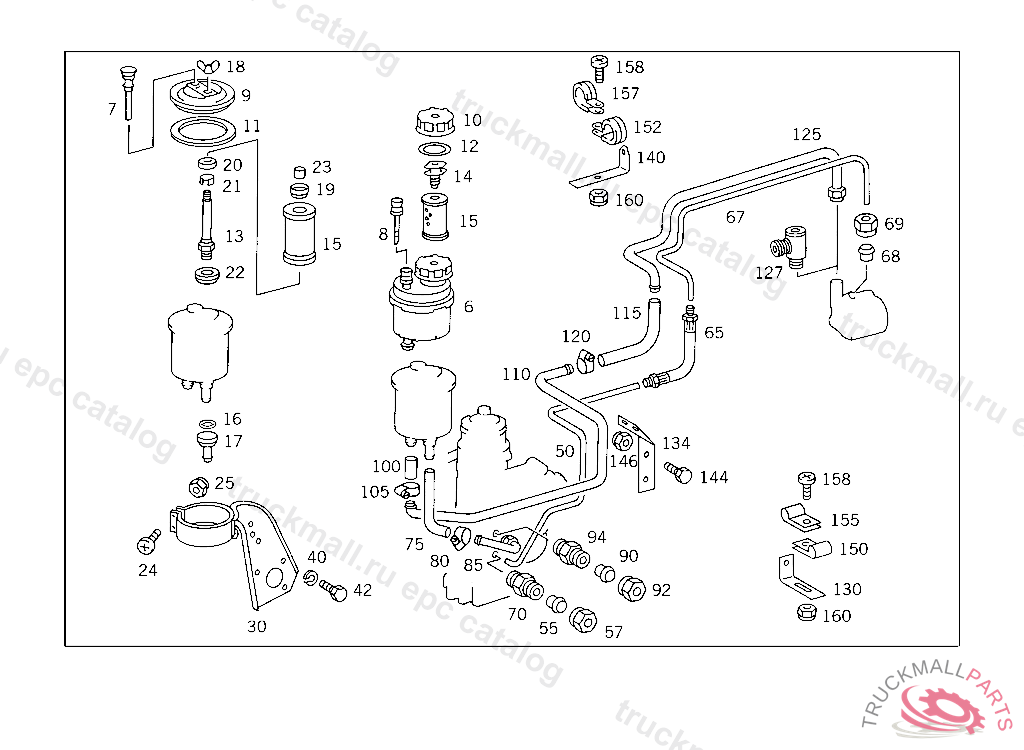

Поз.
Артикул
Описание
6
TANK , Replaced By: A0004664502
6
TANK OIL
7
PIPETO 000 466 38 02
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
9
COVERTO 000 466 38 02
10
FILLER CAP
11
SEAL RINGTO 000 466 38 02
12
SEAL RING
13
FILTER CARRIERTO 000 466 38 02
14
BRACKET
15
FILTER
16
SEAL RINGTO 000 466 38 02
17
CONNECTORTO 000 466 38 02
18
NUTTO 000 466 38 02
19
CENTERING RINGTO 000 466 38 02
20
WASHER , Replaced By: A9402680552
20
SPACER WASHERTO 000 466 38 02
21
SPACER TUBETO 000 466 38 02
22
COVER PLATETO 000 466 38 02
23
RUBBER SLEEVETO 000 466 38 02
24
SCREW , Replaced By: A0029903712
24
SCREW , Replaced By: N000000001149
24
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
24
SCREW OIL TANK TO BRACKET
25
NUT , Replaced By: N913004006001
25
NUT PUMP TO BRACKET
25
NUT , Replaced By: N913002006009
25
NUT OIL TANK TO BRACKET
30
BRACKET OIL TANK
30
BRACKET OIL TANK
40
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
42
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
50
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
50
LINE , NOT USED
55
GLAND , Replaced By: A0019901967
55
SEAL CONE LINE CONNECTION
57
UNION NUT LINE CONNECTION, Replaced By: N000000006239
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
67
LINE , NOT USED
67
LINE FROM POWER STEERING PUMP TO HOSE
68
GLAND , Replaced By: A0019901967
68
SEAL CONE LINE CONNECTION
69
UNION NUT LINE CONNECTION, Replaced By: N000000006239
70
SCREW-IN FITTING DELIVERY LINE TO PUMP
75
HOSE , Replaced By: A3439970582
75
HOSE , Replaced By: A6999974082
75
HOSE , Replaced By: A3859971682
75
HOSE , NOT USED
80
CLAMP HOSE TO FITTING AND TO OIL TANK
80
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
85
LINE FROM STEERING TO OIL TANK
90
GLAND LINE CONNECTION
92
UNION NUT LINE CONNECTION
94
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
100
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
100
HOSE , Replaced By: A3859971582
100
HOSE CONNECTION WITH TRANSMISSION CIRCUIT: "2", Replaced By: A3609970982
105
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
105
CLAMP , Replaced By: N000000000667
110
LINE FROM RETURN LINE TO OIL TANK, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
110
LINE FROM OIL TANK TO HOSE, NOT USED
110
LINE , Replaced By: A3834660765
115
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
115
HOSE , Replaced By: A3859971582
120
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
120
CLAMP , Replaced By: N000000000667
125
LINE FROM HOSE TO OIL PUMP
125
LINE , NOT USED
127
ELBOW FITTING SUCTION LINE TO OIL PUMP
130
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
130
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
130
BRACKET , Replaced By: A3812950440
134
BRACKET DELIVERY AND SUCTION LINES TO BRACKET AT FRAME
140
BRACKET , Replaced By: A6164660040
140
BRACKET , NOT USED
144
SCREW SUPPORT TO SIDE MEMBER
146
NUT SUPPORT TO SIDE MEMBER
150
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
152
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
155
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
155
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
157
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
158
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
160
NUT , Replaced By: N913004006001
160
NUT PUMP TO BRACKET
999
SHEET METAL SCREW PROTECTIVE SLEEVE TO CAB FLOOR,4 188586
999
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
999
WIRE STEERING BOX ASSEMBLY TO STEERING SUPPORT 600 MM
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
COTTER PINROCKINGER TYP 260 G140
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
HOSE , Replaced By: A3609971182
999
BRACKET , Replaced By: A3524290740
999
BRACKET , Replaced By: A3044760335
999
BRACKET DELIVERY AND SUCTION LINES TO FRAME
999
BRACKET , Replaced By: A3875015820
999
COVER PROTECTIVE SLEEVE TO CAB FLOOR,4 188586
999
DRAG LINK , Replaced By: A3834601405
999
HANDLE , Replaced By: A3834601369
999
BRACKET , Replaced By: A3604293140
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 716042, Replaced By: A3874660940
999
SLEEVE STEERING SHAFT
999
RING STEERING SHAFT
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
COVER
999
BRACKET , Replaced By: A6205244040
999
STEERING WHEEL ,4 430199, Replaced By: A3834640201, +001A0004640432
999
PROTECTIVE CAP
999
HOSE , Replaced By: A0009978152
999
HOSE , Replaced By: A0009978152
999
HOSE , Replaced By: A0009978152
999
HOSE , Replaced By: A0009978252
999
HOSE , Replaced By: A0009978252
999
NEEDLE BEARING
999
SEAL RING , Replaced By: A0059970848
999
SEALING CORD , Replaced By: A0059970848
999
FILTER , Replaced By: A0004660604
999
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
999
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
