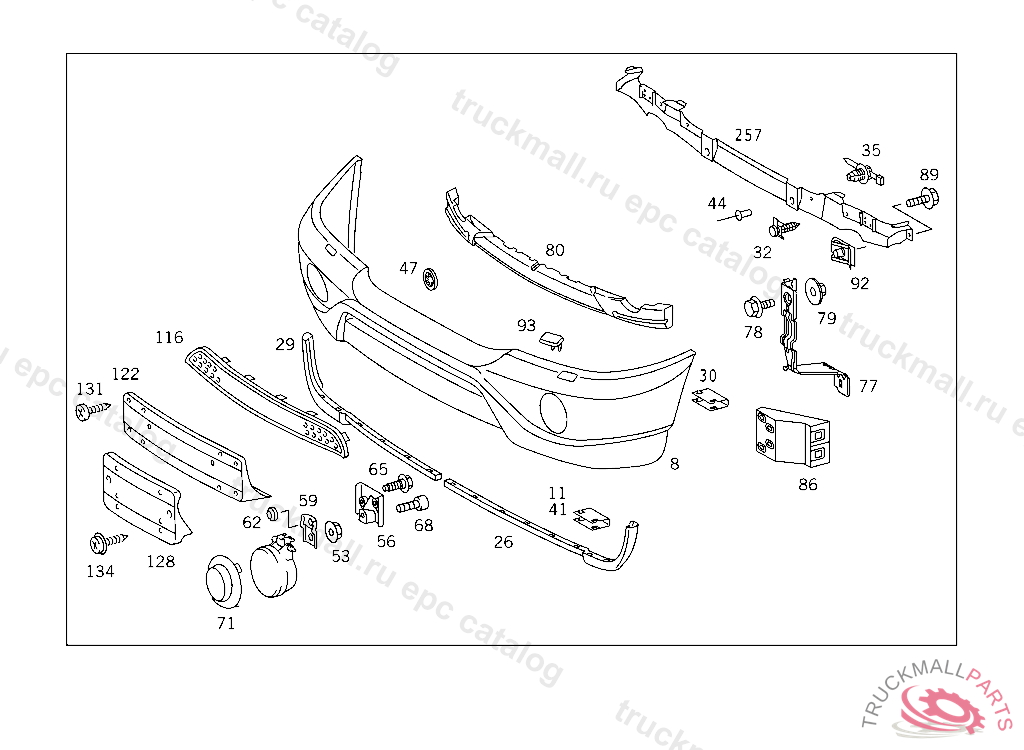

Поз.
Артикул
Описание
8
FRONT BUMPER FACE BAR HEADLAMP WIPER/WASHER
8
FRONT BUMPER FACE BAR , Replaced By: A1638805070
8
FRONT BUMPER FACE BAR , I COLOR NUMBERSI USED WITH OUTSIDE PAINTWORK I -----------------------------I-----------------------------------INO.7700 ALTO GREY I040,149,189,272,366,486,567,744I, Replaced By: A1638804070
8
FRONT BUMPER FACE BAR , I COLOR NUMBERSI USED WITH OUTSIDE PAINTWORK I -----------------------------I-----------------------------------INO.7700 ALTO GREY I040,149,189,272,366,486,567,744I, Replaced By: A1638804070
11
CLIP , NOT USED
26
SPOILER LEFT, I COLOR NUMBERSI USED WITH OUTSIDE PAINTWORK I -----------------------------I-----------------------------------INO.7C45 DEEP DARK GREYI040,189,272,366,486,567,744
29
SPOILER RIGHT, I COLOR NUMBERSI USED WITH OUTSIDE PAINTWORKI -----------------------------I--------------------------------------------------------------------------------------------INO.7C45 DEEP DARK GREYI040,149,189,197,247,272,345,353,359,366,486,567,693,723,744,816,960I
30
CLIP
32
CLIP CABLE HARNESS MOUNTING
35
CABLE STRAP LINE MOUNTING 260X3.3MM
41
CLIP LOWER PANELLING TO UPPER PANELLING
44
RIVET
47
LOCK , Replaced By: A0009940648
53
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
56
BRACKET FOGLAMP
59
BRACKET FOGLAMP
62
WASHER FOGLAMP TO BRACKET
65
SCREW HEADLAMP WIPER/WASHER
68
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
71
ORNAMENTAL COVER LEFT FOGLAMP, I COLOR NUMBERSI USED WITH OUTSIDE PAINTWORK I -----------------------------I-----------------------------------INO.9040 I CODE 040INO.9189 I CODE 189INO.6272 I CODE 272INO.5366 I CODE 366INO.8486 I CODE 486INO.3567 I CODE 567INO.9744 I CODE 744I
71
ORNAMENTAL COVER RIGHT FOGLAMP
77
BRACKET BUMPER,RIGHT, A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801
77
BRACKET BUMPER,LEFT
78
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
79
NUT
80
ENERGY-ABSORBING UNIT
80
ENERGY-ABSORBING UNIT , Replaced By: A1638850937
86
BRACKET MOUNTING BUMPER
89
BOLT. SCREW BRACKET AND ENERGY-ABSORBING UNIT TO BUMPER COVERING
92
LOCK
92
LOCK. NUT , Replaced By: A0039941745
93
COVERING HEADLAMP WIPER/WASHER RIGHT
93
COVERING HEADLAMP WIPER/WASHER LEFT
116
GRILLE AIR INLET
122
LICENSE PLATE MOULDING , TO BE PAINTED PRIOR TO INSTALLATION
128
LICENSE PLATE MOULDING , TO BE PAINTED PRIOR TO INSTALLATION
128
LICENSE PLATE MOULDING , I COLOR NUMBERSI USED WITH OUTSIDE PAINTWORK I -----------------------------I-----------------------------------INO.9040 I CODE 040INO.9189 I CODE 189INO.6272 I CODE 272INO.5366 I CODE 366INO.8486 I CODE 486INO.3567 I CODE 567INO.9744 I CODE 744I
131
BOLT LICENSE-PLATE MOUNTING
131
SCREW
134
SCREW
257
REINFORCEMENT AT RIGHT BRACKET
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER BRACKET TO CAB REAR PANEL
