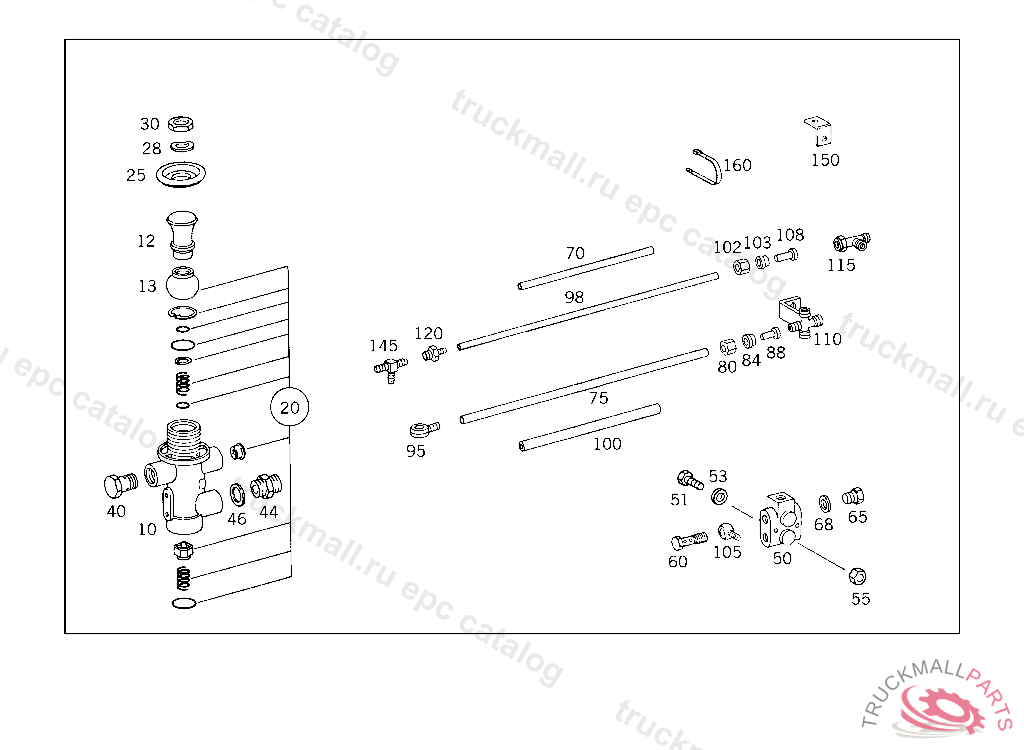

Поз.
Артикул
Описание
10
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
10
VALVE , Replaced By: A0004342301
10
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342301
12
HANDLETO 000 434 23 01
13
CUP 3/2-WAY VALVE WABCO
20
REPAIR KIT 3/2-WAY VALVE WABCO
25
SEAL RING VALVE TO CAB,4 278267
28
SPRING WASHER AT CAB FLOOR
30
NUT SUCTION LINE TO OIL PUMP
40
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
40
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
44
T-FITTING EXHAUST BRAKE 3/2-WAY VALVE
46
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
50
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
51
SCREW APPARATUS PLATE M 6X45
51
SCREW , Replaced By: N304017006027
53
WASHER COMPRESSED AIR LINE TO BRACKET
53
WASHER , Replaced By: N009021006208
55
NUT PUMP TO BRACKET
55
NUT , Replaced By: N913004006001
60
HOLLOW SCREW LINE CONNECTION
65
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
65
SCREW PLUG , Replaced By: N000908012009
68
SEAL RING LINE CONNECTION
70
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
70
LINE , Replaced By: A0004296201
75
PLASTIC PIPE RISING PIPE 4X6 MM
75
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
80
UNION NUT
84
SEAL CONE
84
GLAND , Replaced By: A0019901667
88
SLEEVE LEAK LINE
88
BUSHING , Replaced By: N915062004000
95
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
95
BANJO UNION , Replaced By: N915052004006
98
HOSE LEAK LINE, ORDER BY THE METER
100
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
102
UNION NUT LINE CONNECTION
102
UNION NUT , Replaced By: N915017008100
103
GLAND LINE CONNECTION
105
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
105
BANJO UNION , Replaced By: N915052006013
108
SLEEVE LINE CONNECTION
108
SLEEVE , Replaced By: N915062006000
110
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
110
BRACKET ,4 375135
115
T-FITTING EXHAUST-BRAKE POWER CYLINDER
120
FITTING LINE CONNECTION TO FIRE WALL,5 726664
120
FITTING , Replaced By: N915059004000
145
DISTRIBUTOR HOSE WIDTH, 6 MM
150
ANGLE LINE MOUNTING
160
LOOM TIE LINE MOUNTING 280 MM
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
STRAINERTO 000 434 21 01
999
CUP , Replaced By: A0004340486
999
CUPTO 000 434 10 01
999
BUSHINGTO 000 434 10 01
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342101
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
999
HOLLOW SCREW , Replaced By: N915047008100
999
BUSHING , Replaced By: N915062004000
999
FITTING , Replaced By: A0019972572
999
SPRINGTO 000 434 21 01
999
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 427
999
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 428
999
T-FITTING EXHAUST BRAKE LINE CONNECTION
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
LOOM TIE LINE MOUNTING
999
REPAIR KIT 3/2-WAY VALVE BOSCH
999
LOOM TIE BRAKE LINE MOUNTING
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
BRACKET ,4 416298
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
BANJO UNION HEATING CONNECTION,K 169122
