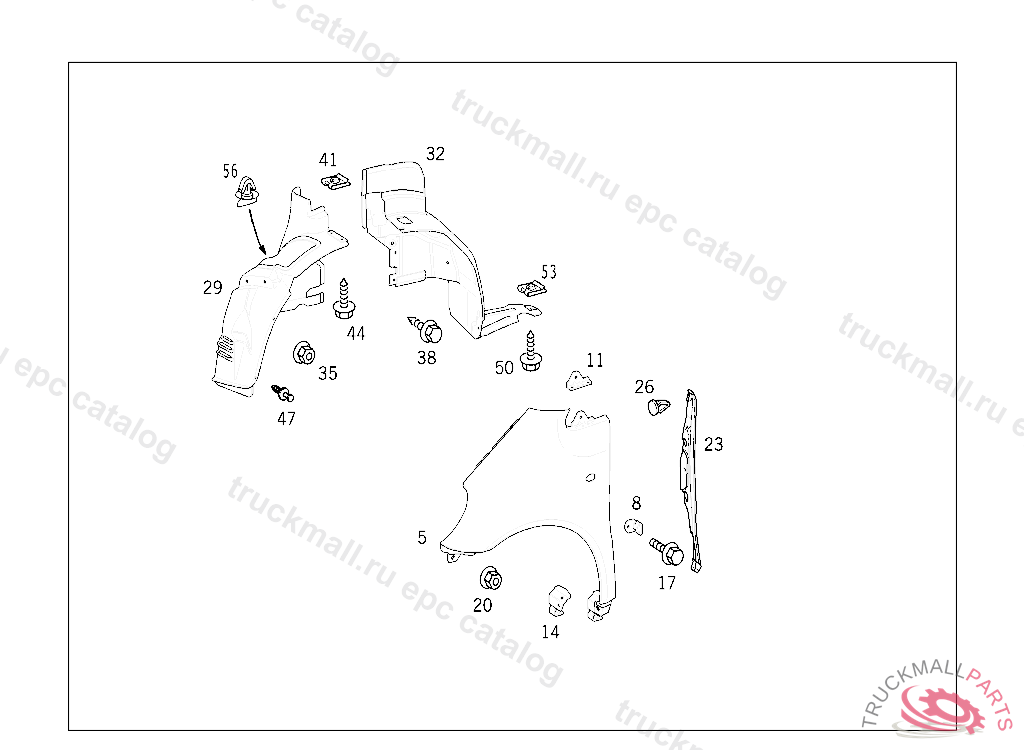

Поз.
Артикул
Описание
5
FRONT FENDER RIGHT
5
FRONT FENDER LEFT
8
BRACKET LEFT AND RIGHT, Replaced By: A1688800114
8
BRACKET LEFT AND RIGHT
11
BRACKET LEFT
11
BRACKET LEFT, Replaced By: A1688800514
11
BRACKET RIGHT, Replaced By: A1688800614
11
BRACKET RIGHT
14
BRACKET LEFT
14
BRACKET LEFT, Replaced By: A1688800714
14
BRACKET RIGHT, Replaced By: A1688800814
14
BRACKET RIGHT
17
BOLT BRACKET TO FENDER M6X18
20
NUT FENDER ON SIDE PANEL M6
23
COVER RIGHT
23
COVER LEFT
26
CLIP COVERING TO FENDER
29
COVER FRONT RIGHT, J 48100520010301801
29
COVER FRONT LEFT
29
COVER FRONT RIGHT, J 56858920010301802
29
COVER FRONT LEFT, J 48100520010301801
32
COVER REAR LEFT
32
COVER REAR RIGHT
35
PLASTIC NUT. NUT
38
SCREW
41
LOCK PROTECTIVE GRILLE
44
SCREW INTAKE SHELL TO BRACKET,A 213305
44
SCREW
47
RIVET COVERING TO SIDE MEMBER
50
SCREW. SHEET METAL SCREW
53
LOCK NUT. LOCK
56
CATCH COVERING TO COVERING
