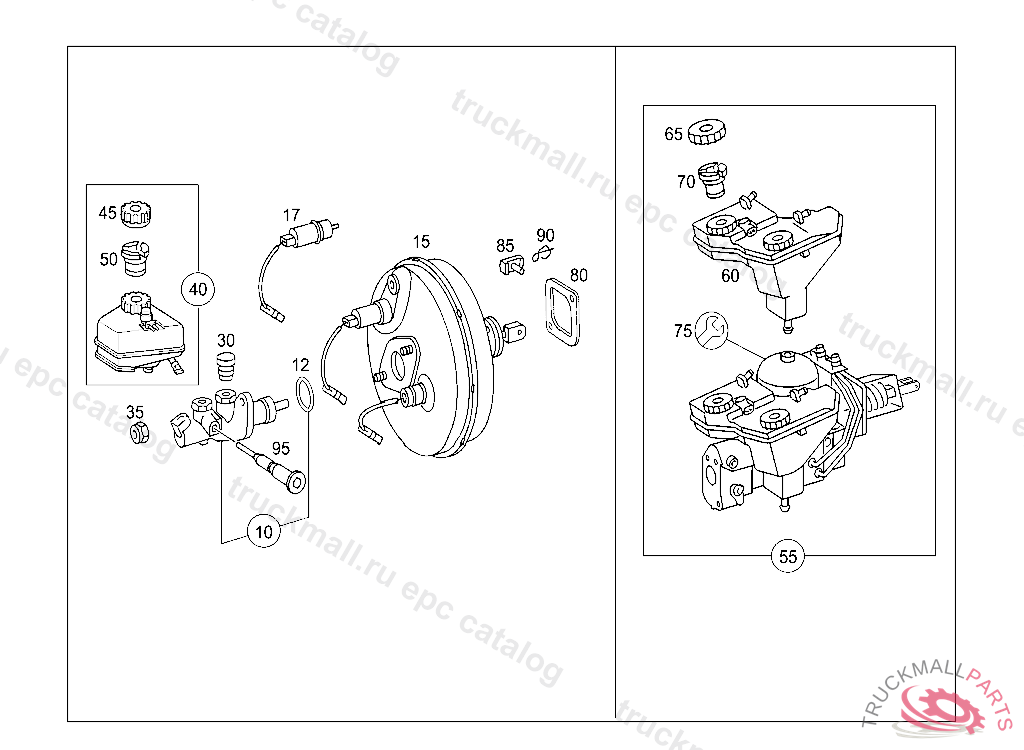

Mercedes A1242920074 - Болт

G 55 AMG 463.243 TO CHASSIS 144225
42 BRAKES - 060 BRAKE BOOSTER
  • Поз.
    Артикул
    Описание
  • 10
    BRAKE MASTER CYLINDER
  • 12
    SEAL RING
  • 15
    BRAKE BOOSTER ASSEMBLY PARTS KIT,F 187941 EXEPT FOR VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM F 187942 WITH CODE 809
  • 17
    SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS
  • 30
    BUSHING
  • 35
    NUT
  • 40
    RESERVOIR , A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057 ORDER WHEN USING CASE OR STRAINER
  • 45
    COVER , Replaced By: A2024300014
  • 45
    COVER
  • 50
    STRAINER
  • 80
    GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
  • 85
    PIN BRAKE PEDAL TO BRAKE BOOSTER, B 843549
  • 90
    LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
  • 95
    TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564
