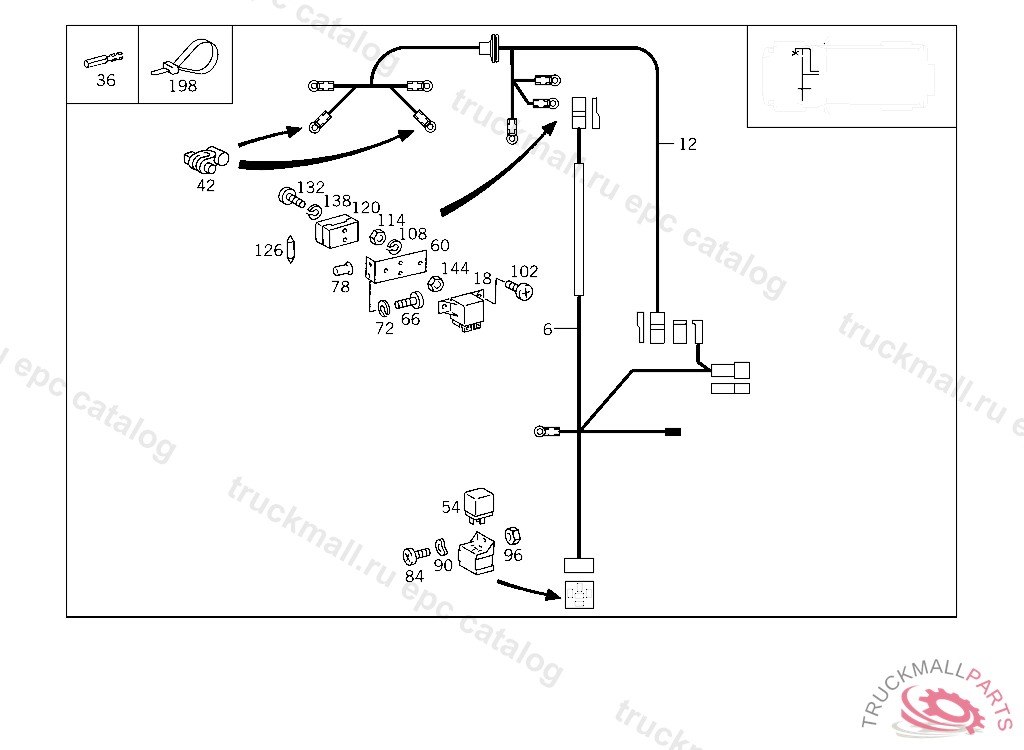

Поз.
Артикул
Описание
6
ELECTRIC CABLE RELAY CLUSTER
6
CABLE HARNESS RELAY CLUSTER
12
ELECTRIC CABLE
12
CABLE HARNESS
18
RELAY
18
RELAY (BATTERY CUT-OFF RELAY)
36
BUSHING2.5 MM2
42
SOLDERING TERMINAL BATTERY CABLE
42
SOLDERING TERMINAL FROM BATTERY TO STARTING MOTOR,D 001717
54
RELAY12 V
54
PULSE SENDER UNIT , Replaced By: A0035452705
54
RELAY REAR FOGLAMP
60
BRACKET AT BATTERY CASE COVER
66
SCREW CLAMP MOUNTING M 6X16
66
SCREW , Replaced By: N000000001146
72
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
78
RIVETED NUT SWITCH
84
SCREW , Replaced By: N007985005157
84
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
90
SPRING WASHER ALTERNATOR CONNECTION D+
96
NUT TACHOGRAPH TO BRACKET
102
SCREW CLAMP MOUNTING M 6X16
102
SCREW , Replaced By: N000000001146
108
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
114
NUT BALL PIVOT TO LEVER
120
FUSE BOX , Replaced By: A0005459901
126
FUSEA16
132
SCREW STEERING COLUMN PANELLING M 5X12
138
LOCK WASHER T-FITTING TO BRACKET
144
NUT CLAMP TO BRACKET
198
LOOM TIE LINE MOUNTING 280 MM
