Поз.
Артикул
Описание

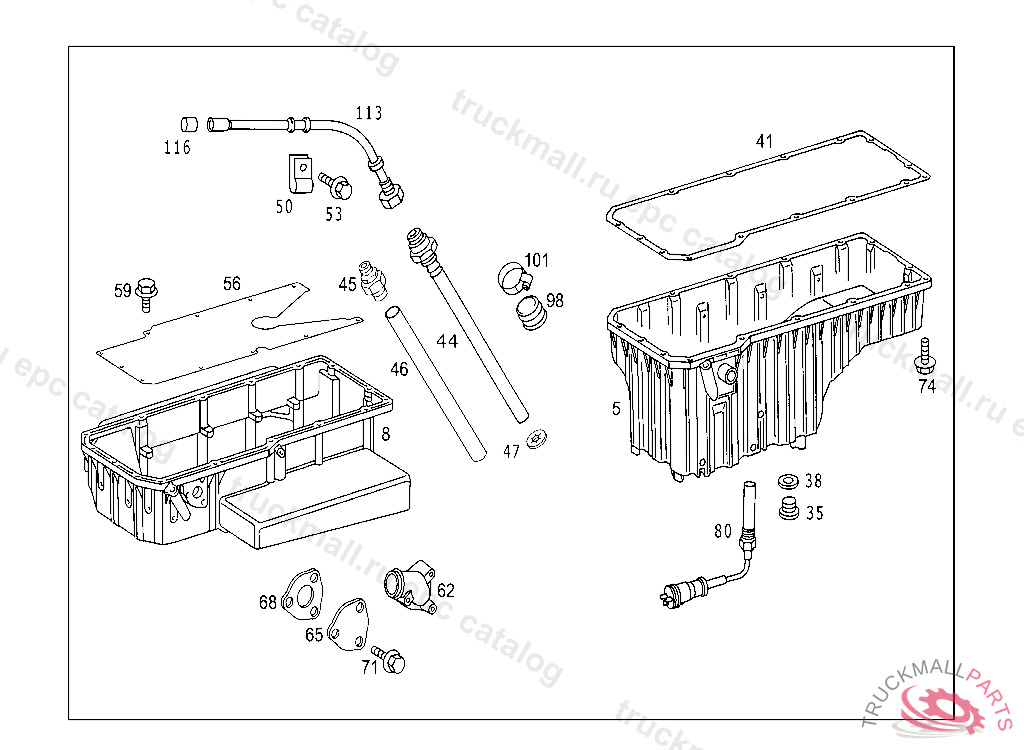

8
OIL PAN
35
SCREW PLUG
38
SEAL RING
41
GASKET OIL PAN TO CYLINDER CRANKCASE, RECOMMENDED FOR TAKING ON STOCK
44
SUCTION PIPE OIL SCAVENGING,ON OIL PAN,*0101898
44
SUCTION PIPE OIL SCAVENGING,ON OIL PAN,*0101898 EXHAUST STOCK OF OLD PARTS UP TO ENGINE 514933, Replaced By: A5421801852
45
FITTING OIL SCAVENGING,ON OIL PAN, EXHAUST STOCK OF OLD PARTS UP TO ENGINE 514933, Replaced By: A5419971372
45
FITTING OIL SCAVENGING,ON OIL PAN
46
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
50
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
56
PROTECTIVE PLATE
59
SCREW BRACKET TO SIDE MEMBER M8X20
62
OIL FILLER NECK
65
FLANGE
68
GASKET OIL FILLER NECK
71
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
71
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
74
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
74
SCREW CHARGING AIR ELBOW TO CYLINDER HEAD M 10X190
80
OIL LEVEL SENSOR OIL LEVEL,OIL TEMPERATURE
80
SENDER UNIT OIL LEVEL,099999
80
SENDER UNIT OIL LEVEL,OIL TEMPERATURE
98
LOCKING CAP OIL FILLING
101
CLAMP
113
GUIDE TUBE OIL DIPSTICK
116
PLUG GUIDE TUBE
116
CAP OIL DIPSTICK
