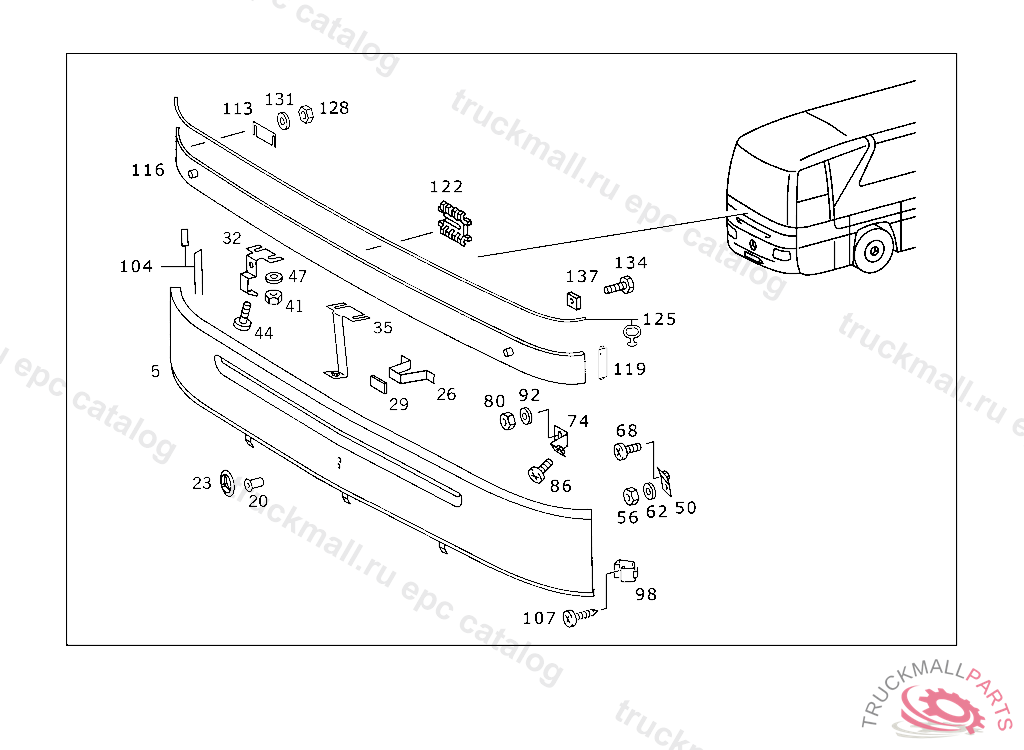

Поз.
Артикул
Описание
5
COVERING ,221905
5
COVERING ,221906228476
20
GROMMET CONTROL UNIT TO BRACKET
23
BADGE , Replaced By: A1298880116
23
BADGE , Replaced By: A6388170116
23
BADGE , Replaced By: A2078170316
26
REINFORCEMENT BRACING TO FRONT PANEL,221906228476
29
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
32
BRACKET AT TOP COVERING
35
BRACKET TOP COVERING,221906228476
41
NUT CLAMP TO BRACKET
41
NUT , Replaced By: N913023006001
41
NUT SPRING-LOADED PUSH ROD
44
SCREW BRACKET TO BRACKET M6X12
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
WASHER PLUG SOCKET TO BRACKET
50
BRACKET BOTTOM LEFT & RIGHT,221906228476
50
BRACKET BOTTOM LEFT & RIGHT
56
NUT CLAMP TO BRACKET
56
NUT , Replaced By: N913023006001
56
NUT SPRING-LOADED PUSH ROD
62
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
BRACKET CENTRAL BOTTOM
74
BRACKET BOTTOM CENTRAL
80
NUT , Replaced By: N913023006001
80
NUT SPRING-LOADED PUSH ROD
80
NUT CLAMP TO BRACKET
86
SCREW BRACKET TO BRACKET M6X12
92
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
98
SPRING BRACKET MOUNTING
104
RUBBER SEAL AT COVERING, ORDER BY THE METER
107
SHEET METAL SCREW INTERIOR LAMP B 3.5X13
113
PLATE COVERING BELOW WINDSHIELD
116
COVERING BELOW WINDSHIELD
119
COVERING BELOW WINDSHIELD
119
COVERING BELOW WINDSHIELD
122
CLIP
125
RUBBER SEAL SEAL TO COVERING, ORDER BY THE METER
128
NUT MOUNTING FRAME TO SUPPORT M6
131
WASHER SWITCH TO FIRE WALL
134
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
134
SCREW , Replaced By: N914146006102
137
NUT CONDENSER TO RADIATOR
