Mercedes N308765014022 - Болт

E 230 JAPAN 210.037 TO MODELLJAHR CODE 809

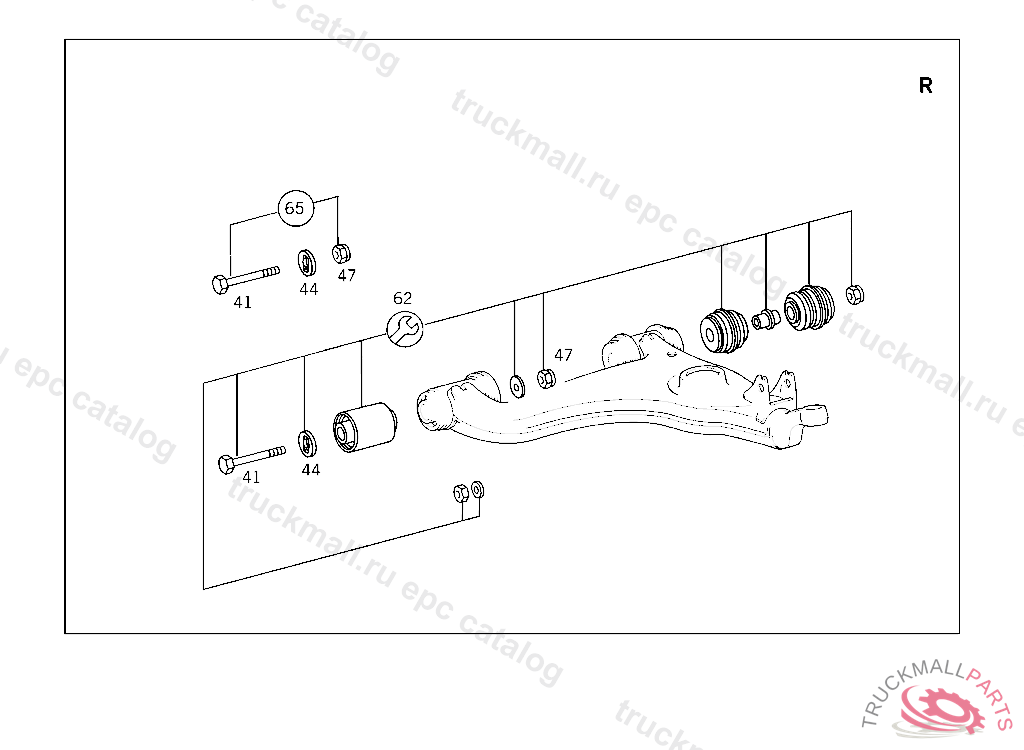

33 FRONT AXLE - 030 STEERING KNUCKLE AND CONTROL ARM IL. 1
  • Поз.
    Артикул
    Описание
  • 41
    SCREW BRACKET TO SPRING SADDLE M 14X1.5X130
  • 41
    SCREW CONSOLE TO FRAME AND TO AUXILIARY FRAME,RESP. M 14X1.5X130,K 100510
  • 44
    WASHER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 313878, J 036478, Replaced By: A2023330476
  • 44
    WASHER LOWER CONTROL ARM TO FRAME
  • 47
    SCREWED INSERT LOWER CONTROL ARM TO FRAME, F 204092
  • 47
    NUT FOR TAPPING SCREW SPRING CONTROL ARM TO WHEEL BEARING
  • 47
    NUT , Replaced By: N910113014001
  • 62
    REPAIR KIT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2103300475
  • 62
    REPAIR KIT LOWER CONTROL ARM TO FRAME
  • 65
    REPAIR KIT LOWER-CONTROL-ARM-TO-FRAME MOUNTING PARTS
