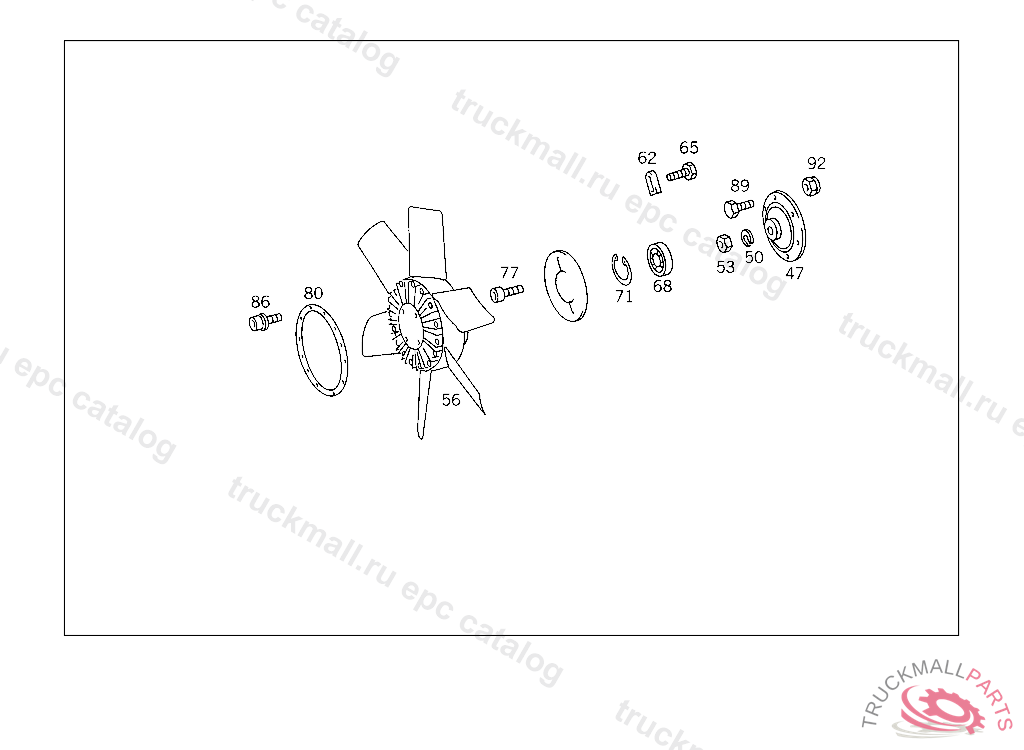

Mercedes A0009907420 - БОЛТ М8

80

RADIATOR , Replaced By: A3575012501

82

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

82

SCREW , Replaced By: N304017008016

84

WASHER BRACKET TO CROSS MEMBER

86

LOCK WASHER CLAMP TO BRACKET AND TO PIPE

88

NUT , Replaced By: N304032008006

90

FAN POWER SAVER FAN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

90

FAN , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 064153, Replaced By: A0022056606

92

GUIDE

94

SCREW

96

BALL BEARINGTO 002 205 19 06,63 06, TO BE ADAPTED DURING ASSEMBLY

96

BALL BEARING , Replaced By: A0059814825

98

LOCK AS REQUIRED 2.1 MM

98

LOCK AS REQUIRED 2.0 MM

98

LOCK AS REQUIRED 2.3 MM

98

LOCK AS REQUIRED 2.2 MM

102

SCREW COVER TO FAN TO 001 205 95 06

106

PULLEY TIGHTENER PULLEY

110

V-BELT TOOTHED,SET2 PIECES 12.5X1693 MM

999

CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR

999

CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE

999

FLEXIBLE METAL TUBE CONNECTOR

999

AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE INTAKE PIPE, FOR USE WITH MERCEDES-BENZ BODY 357.0 UP TO IDENT NO. 053930, 357.1 UP TO IDENT NO. 053939 ALSO INSTALLED ON 054199,054505,054697,054728,054744,054776,054828,054865,054879,054894,054939,054942,054976,054993, 055004,055022,055038,055077,055093,055097,055107,055111,055155,055211,055271,055294,055311,055322, 055393,055412,055458,055520,055533,055584,055633,055693,055749,055774,055847,055881,055898,055915. FOR VEHICULES LESS MERCEDES-BENZ BODY UP TO IDENT NO. 053881 ALSO INSTALLED ON 055191,055526.

999

LINE

999

SPACER TUBE

999

EXHAUST PIPE , Replaced By: A3574901319

999

EXHAUST PIPE , Replaced By: A3574901419

999

RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 60 CCM,TO 002 205 04 06

999

COVERTO 002 205 19 06

999

FLANGETO 002 205 19 06

999

PRIMARY CUPTO 002 205 19 06
