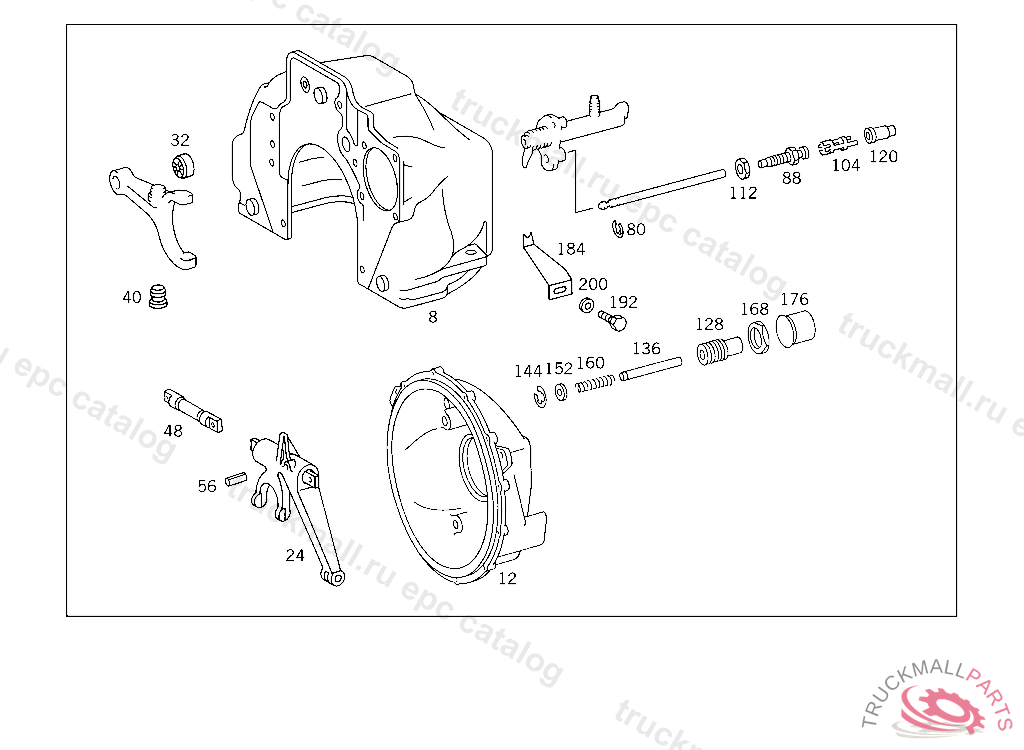

Поз.
Артикул
Описание
8
BELL HOUSING
12
BELL HOUSING
24
RELEASE LEVER
32
BEARING TOP
40
BUSHINGTO 688 250 00 13
48
SHAFT (CLUTCH RELEASE SHAFT)
56
CLAMPING SLEEVETO 684 250 04 13
80
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
88
SCREW WEAR INDICATOR
104
POINTER WEAR INDICATOR
104
POINTER CLUTCH LINING WEAR
104
POINTER , Replaced By: A6882540027
104
POINTER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6502540127
112
NUT WEAR INDICATOR
120
CAP CLUTCH SLAVE CYLINDER TO BELL HOUSING
128
SCREW WEAR INDICATOR
136
PIN , Replaced By: A3842547074
136
PIN WEAR INDICATOR
144
SNAP RING CLUTCH LINING WEAR INDICATOR
152
WASHER PULL ROD TO SHIFT LEVER
160
SPRING CLUTCH LINING WEAR INDICATOR
168
NUT CHECK VALVE TO AIR RESERVOIR
176
CAP WEAR INDICATOR
184
POINTER , Replaced By: A6822547027
184
POINTER WEAR INDICATOR
192
SCREW AT BELL HOUSING
200
WASHER GROUND CABLE
