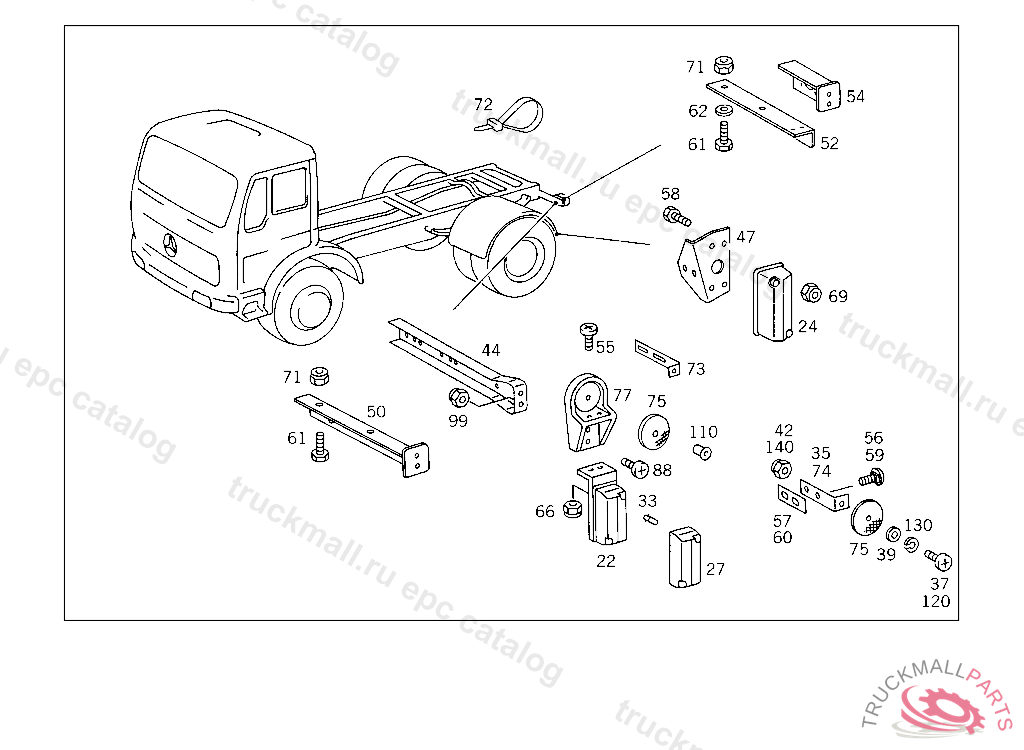

Поз.
Артикул
Описание
22
SIDE MARKER LAMP , Replaced By: A0005442311
22
SIDE MARKER LAMP
24
SIDE MARKER LAMP
27
LENS
27
LENS
33
BULB12 V
33
BULB24 V
35
MOUNTING ANGLE SIDE MARKER LAMP TO BRACKET
37
SCREW BRACKET MOUNTING M 6X20
39
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
39
WASHER COMPRESSED AIR LINE TO BRACKET
42
NUT , Replaced By: N913004006001
42
NUT PUMP TO BRACKET
44
BRACKET SIDE MARKER LAMP
44
BRACKET SIDE MARKER LAMP
47
BRACKET RIGHT
47
BRACKET LEFT
50
BRACKET RIGHT
50
BRACKET LEFT
52
BRACKET RIGHT
52
BRACKET LEFT
54
BRACKET RIGHT
54
BRACKET LEFT
55
SCREW CLAMP TO BRACKET
55
SCREW BRACKET MOUNTING M 6X20
55
SCREW , Replaced By: N007985006581
56
SCREW BRACKET TO REAR FENDER
57
SHIM BRACKET TO FENDER,5 952572
58
SCREW BRACKET MOUNTING
59
SCREW BRACKET TO REAR FENDER
60
SHIM BRACKET TO FENDER,5 952572
61
SCREW BRACKET ON LOAD SENSOR
61
SCREW CLAMP TO BRACKET AND TO PIPE
61
SCREW CLAMP TO BRACKET AND TO PIPE
62
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
62
WASHER COMPRESSED AIR LINE TO BRACKET
66
NUT , Replaced By: N913004006001
66
NUT PUMP TO BRACKET
66
NUT PUMP TO BRACKET
69
NUT ATTACHMENT, MARKER LIGHT
69
NUT , Replaced By: N913002004001
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
NUT , Replaced By: N913004008001
72
LOOM TIE LINE MOUNTING 280 MM
73
BRACKET REFLECTOR
74
BRACKET REFLECTOR TO FENDER,5 952572
75
REFLECTOR AMBER
75
REFLECTOR FENDER
77
BRACKET REFLECTOR
88
SCREW CLAMP MOUNTING M 6X16
88
SCREW CLAMP MOUNTING M 6X16
88
SCREW , Replaced By: N000000001146
99
NUT PUMP TO BRACKET
99
NUT PUMP TO BRACKET
99
NUT , Replaced By: N913004006001
110
RIVET REFLECTOR TO BRACKET
110
RIVET REFLECTOR TO BRACKET
120
SCREW REFLECTOR TO BRACKET
130
LOCK WASHER T-FITTING TO BRACKET
140
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
PLUG BRACKET,K 062690
999
BRACKET
999
BRACKET REFLECTOR
