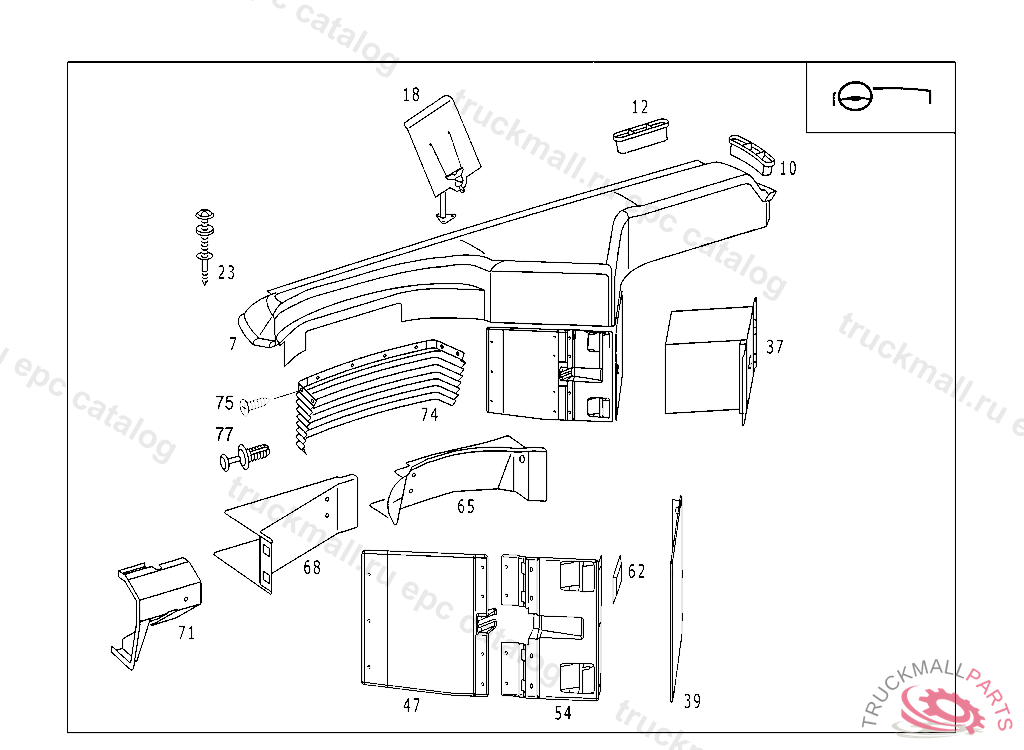

Поз.
Артикул
Описание
7
PANELLING WINDOW SILL 2550 MM, NO.7C52INO.8316 I I II I
10
DEFROSTER NOZZLE WITH SLANTING DISKS
12
AIR DUCT WITH STRAIGHT DISKS
18
BRACKET SCHEDULE BOARD, NO.7327I....... I I II I .......INO.8425 I I II I
23
RIVET WATER BAFFLE TO CROSS MEMBER,A 166303
37
PIGEONHOLE STRONG-BOX, NO.7331I....... I I II I
39
PANELLING PIGEONHOLE, NO.7C52I....... I I II I
47
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
54
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
62
RUBBER BUFFER TO GLASS PANE,BOTTOM
65
COVERING LEGROOM,RIGHT, NO.7C01I....... I I II I
68
COVERING LEGROOM,LEFT, NO.7C01I....... I I II I
71
COVERING LEGROOM,LEFT EPS
74
PANELLING BELLOWS
75
SHEET METAL SCREW ,F 122555
77
RIVET RESERVOIR TO FIRE WALL
