Поз.
Артикул
Описание

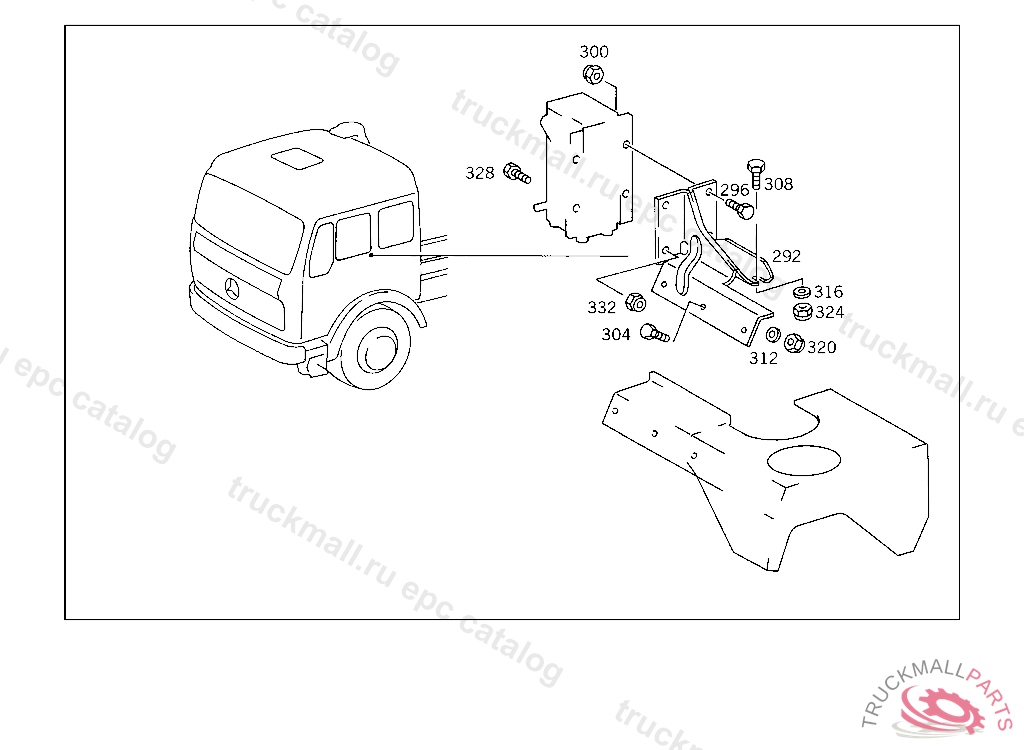

292
BRACKET HAND PUMP
296
SCREW , Replaced By: N304017010002
296
SCREW BRACKET TO SIDE MEMBER
300
NUT , Replaced By: N910113010000
300
NUT STRAP TO BRACKET
304
SCREW , Replaced By: N308676012012
304
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
308
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
312
WASHER
316
WASHER , Replaced By: N000125015019
316
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
320
NUT SUPPORT TO SIDE MEMBER
324
NUT , Replaced By: N910113014001
324
NUT BRACKET TO SIDE MEMBER
328
SCREW , Replaced By: N304017010002
328
SCREW BRACKET TO SIDE MEMBER
332
NUT , Replaced By: N910113010000
332
NUT STRAP TO BRACKET
999
SUPPORT AIR CLEANER,4 785295
999
SUPPORT AIR CLEANER
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
BRACKET AIR CLEANER,FRONT RIGHT
999
BRACKET AIR CLEANER,FRONT LEFT,K 000844
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
MUFFLER AIR CLEANER
999
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
999
BRACKET AIR CLEANER,REAR RIGHT
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
999
CONSOLE FRAME
999
STRAP AIR CLEANER
999
SUPPORT , Replaced By: A6565200133
999
SUPPORT , Replaced By: A6565200033
999
STRAP AIR CLEANER TO SUPPORT
999
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
999
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
999
RING WARNING INDICATOR
999
AIR CLEANER
999
FILTER BOWL
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANERMANN & HUMMEL,4 938205
999
AIR CLEANER , Replaced By: A0140948802
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER ,4 256253
999
AIR CLEANER
999
AIR CLEANER ,4 256254
999
AIR CLEANER ,4 256254
999
WARNING INDICATOR AIR CLEANER
