Поз.
Артикул
Описание

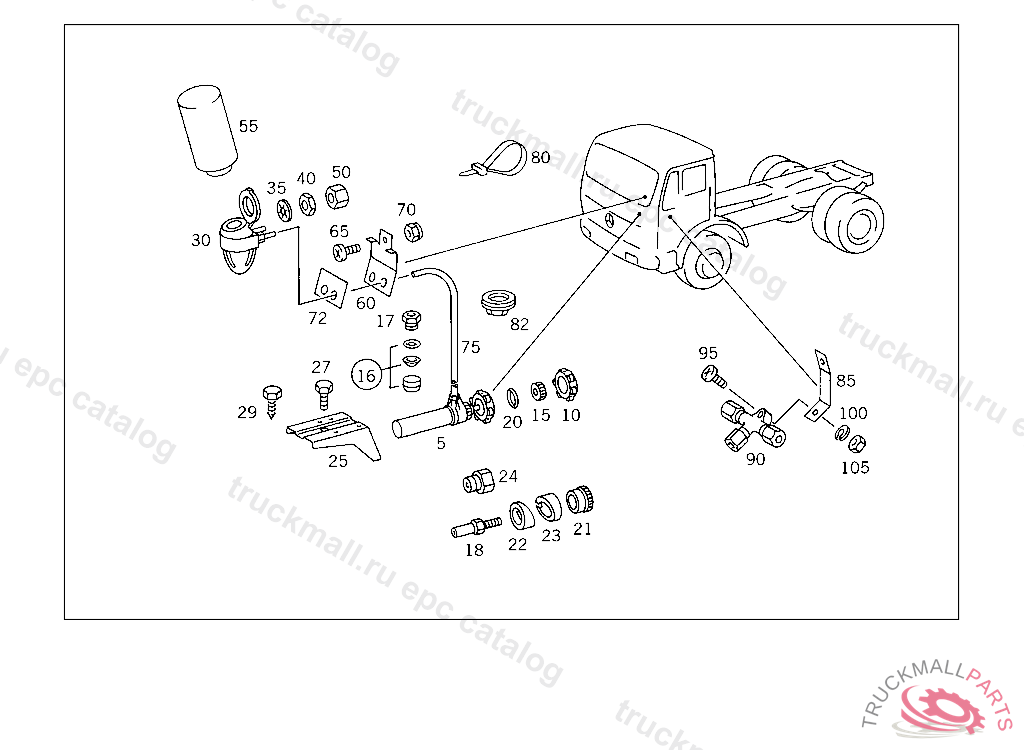

5
PUMP PRIMING FUEL
5
PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 162440, Replaced By: A0005502383
10
HANDLE , Replaced By: A0005550440
10
HANDLE
15
NUT
16
SEAL CONE , Replaced By: A0005550618
16
SEAL CONE REPAIR KIT
17
SCREW CONNECTION
18
ROD PUMP
20
WASHER STARTER PILOT PUMP
21
NUT STARTER PILOT PUMP TO WINDOW SILL
22
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
23
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
24
ADAPTER FITTING STARTER PILOT PUMP TO WINDOW SILL
25
BRACKET , Replaced By: A3813020240
25
BRACKET
27
SCREW , Replaced By: N304017006018
27
SCREW COVER PLATE TO COVER PLATE M 6 X 12
29
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
29
SHEET METAL SCREW , Replaced By: N914031005208
30
PRIMER CAPSULE , Replaced By: A0005501404
30
PRIMER CAPSULE PRIMING FUEL
35
SERRATED WASHER
40
NUT
50
NUT REPAIR KIT
50
SEAL CONE , Replaced By: A0009949454
50
NUT , Replaced By: A0009949454
55
FILLING CYLINDER PRIMING FUEL
60
BRACKET PRIMER CAPSULE
65
SCREW , Replaced By: N000000001146
65
SCREW CLAMP MOUNTING M 6X16
70
NUT PUMP TO BRACKET
70
NUT , Replaced By: N913004006001
72
GASKET PRIMER CAPSULE
75
HOSE FUEL LINE, ORDER BY THE METER
80
LOOM TIE LINE MOUNTING 280 MM
82
GROMMET
82
GROMMET
85
BRACKET , Replaced By: A3604293140
85
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
90
T-FITTING AT BRACKET
95
SCREW T-FITTING TO BRACKET
100
LOCK WASHER T-FITTING TO BRACKET
105
NUT T-FITTING TO BRACKET M 4
999
CLIP CABLE HARNESS TO ROOF RAIL
999
PUMP , Replaced By: A0005501083
