Поз.
Артикул
Описание

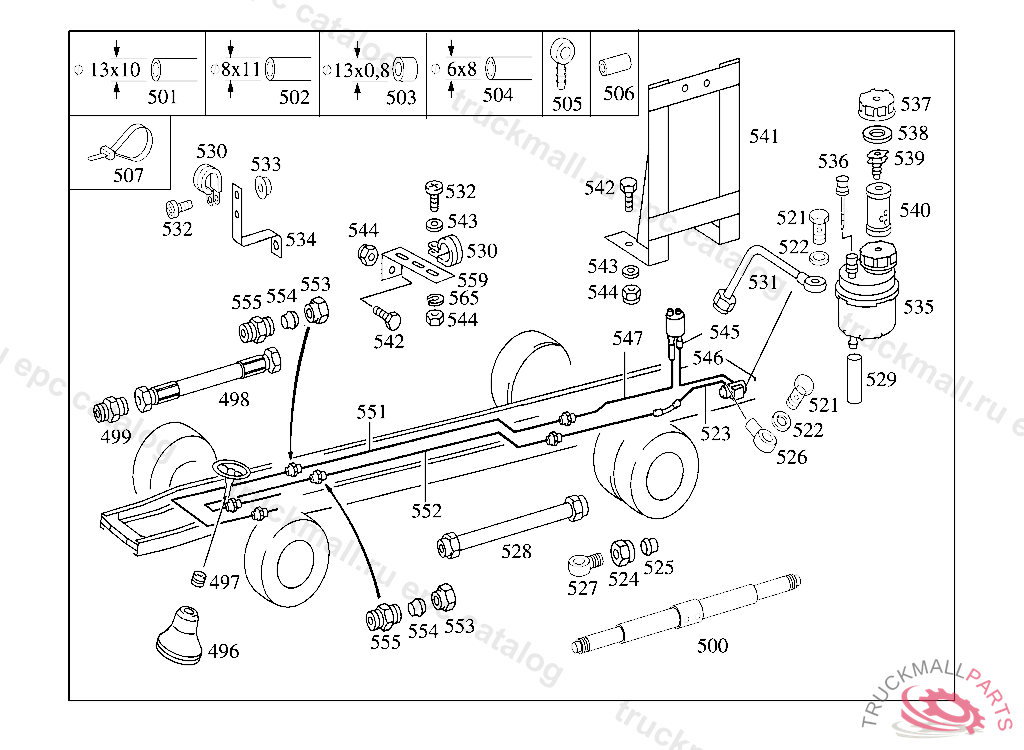

496
BOOT STEERING COLUMN TUBE THRU CAB FLOOR,D 591979
496
BOOT STEERING COLUMN TUBE THRU CAB FLOOR,D 591979
497
SEAL RING STEERING COLUMN TUBE THRU CAB FLOOR,D 591979
497
SEAL RING STEERING COLUMN TUBE THRU CAB FLOOR,D 591979
498
LINE
499
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
500
STEERING SHAFT ,D 523393
500
STEERING SHAFT ,D 523393
501
HOSE , Replaced By: A0009872827
501
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
501
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
501
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
502
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
502
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
502
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
502
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
502
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
503
HOSE GREEN
504
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
505
BANJO UNION10/14
506
INSULATING HOSE , ORDER BY THE METER
507
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
521
HOLLOW SCREW TO POWER STEERING PUMP ON DELIVERY SIDE M16X1,5
521
HOLLOW SCREW TO POWER STEERING PUMP ON DELIVERY SIDE M16X1,5
521
HOLLOW SCREW SUCTION LINE TO OIL PUMP
521
HOLLOW SCREW
521
HOLLOW SCREW
521
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
522
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
522
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
522
SEAL RING SOLENOID VALVE A 18X24
522
SEAL RING SOLENOID VALVE A 18X24
523
LINE FROM POWER STEERING PUMP TO HOSE
523
LINE FROM POWER STEERING PUMP TO HOSE
523
LINE FROM POWER STEERING PUMP TO HOSE
524
UNION NUT LINE CONNECTION
525
GLAND LINE CONNECTION
526
BANJO UNION COMPRESSED AIR LINE TO AIR COMPRESSOR
527
BANJO UNION
528
LINE FROM HOSE TO STEERING
528
LINE FROM HOSE TO STEERING
528
LINE FROM HOSE TO STEERING,D 441028D 523393
528
LINE FROM HOSE TO STEERING,D 441028D 523393
528
LINE HOSE TO OIL TANK
529
HOSE RETURN, FROM STEERING TO OIL TANK
529
HOSE RETURN, FROM STEERING TO OIL TANK
529
SCREW. HOSE LOW PRESSURE LINE ON PUMP
530
CLAMP20-30
530
CLAMP HOSE TO FLANGE AND TO VALVE
530
CLAMP HOSE TO FLANGE AND TO VALVE
531
LINE FROM HOSE TO POWER STEERING PUMP
532
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
532
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
532
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
532
SCREW. HOSE LOW PRESSURE LINE ON PUMP
533
NUT , Replaced By: N913023006001
534
BRACKET
535
TANK POWER STEERING
535
TANK POWER STEERING
535
TANK POWER STEERING
536
OIL DIPSTICK ,D 523393
536
OIL DIPSTICK ,D 523393
536
OIL DIPSTICK ,D 523393
537
FILLER CAP
537
FILLER CAP
537
FILLER CAP
538
SEAL RING
538
SEAL RING
538
SEAL RING
539
BRACKET
539
BRACKET
539
BRACKET
540
FILTER ELEMENT ,D 441028D 523393
540
FILTER ELEMENT ,D 441028D 523393
540
FILTER ELEMENT ,D 441028D 523393
541
BRACKET OIL COOLER
541
BRACKET OIL TANK
542
SCREW BRACKET TO SIDE MEMBER M10X30
542
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
542
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
542
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
542
SCREW BRACKET TO SIDE MEMBER
543
WASHER GROUND CABLE
544
NUT BRACKET TO SIDE MEMBER M12X1.5
544
NUT BRACKET TO FIRE WALL
544
NUT BRACKET TO FIRE WALL
544
NUT
544
NUT BRACKET TO SIDE MEMBER,XB209706
544
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
545
HOSE , Replaced By: A3849977482
545
HOSE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
546
LINE FROM OIL TANK TO HYDRAULIC PUMP
547
LINE FROM OIL TANK TO CONNECTION FITTING
551
LINE FROM OIL LINE TO OIL LINE
552
LINE FROM OIL LINE TO OIL LINE
553
UNION NUT LINE CONNECTION
553
UNION NUT LINE CONNECTION
553
UNION NUT LINE CONNECTION, Replaced By: N000000006243
553
UNION NUT LINE CONNECTION, Replaced By: N000000006243
554
GLAND , Replaced By: A0019901267
554
GLAND , Replaced By: A0019901267
554
GLAND LINE CONNECTION
554
GLAND LINE CONNECTION
555
FITTING HIGH PRESSURE LINE TO STEERING
555
FITTING HIGH PRESSURE LINE TO STEERING
555
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
555
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
559
BRACKET FUEL LINE
559
BRACKET FUEL LINE
559
BRACKET BATTERY CABLE MOUNTING
559
BRACKET , Replaced By: A3464296040
559
BRACKET , Replaced By: A3464296040
559
BRACKET AT CROSS MEMBER
559
BRACKET LINE MOUNTING
565
LOCK WASHER CABLE TO FUSE BOX
999
PART NAME MISSING
999
PART NAME MISSING PIPE ELBOW
999
PART NAME MISSING
999
PART NAME MISSING
999
HOSE
999
HOSE TO AIR CLEANER
999
HOSE RELAY VALVE,SHUT-OFF VALVE, NOT USED
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP OIL DIPSTICK TO RADIATOR
999
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
999
HOLLOW SCREW
999
NUT RETARDER HOUSING TO TRANSMISSION CASE
999
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
NUT HORN TO BRACKET M8
999
NUT , Replaced By: N910113010003
999
SCREW STEERING TO FRAME M18X1,5X90,D 473986
999
HEXAGON HEAD BOLT. SCREW STEERING TO FRAME M18X1,5X180,D 473986
999
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
999
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
999
SCREW BRACKET TO SIDE MEMBER M10X35
999
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
999
SCREWM8X120,D 250888 NOT USED
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
999
SCREW , Replaced By: N910143008010
999
SCREW , Replaced By: N910143008000
999
SCREW BRACKET AND CLAMP M6X20
999
RIVET SUPPORT TO SIDE MEMBER 14X30
999
RIVET12X36 MM
999
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
999
SCREW PLUG 4/2-WAY VALVE
999
SEAL RING INJECTION PUMP
999
SEAL RING
999
SEAL RING PNEUMATIC VALVE
999
LOCK PLATE
999
WASHER BRACKET TO FENDER BRACKET
999
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
NUT TO A6884608605
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
SCREW CROSS MEMBER TO SIDE MEMBERS
999
WASHER TRANSMISSION TO INTERMEDIATE RING
999
COTTER PIN DRAG LINK TO STEERING ARM
999
COTTER PIN
999
SCREW. HEXALOBULAR BOLT BRACKET TO RIGHT FRONT FENDER M8X30
999
SEALING RING
999
SEALING RING AT PRESSURE REGULATOR
999
HEXAGON HEAD BOLT. SCREW BEARING BRACKET TO AXLE M 18X180
999
CLAMP , Replaced By: A0059970690
999
CLAMP , Replaced By: A0059972990
999
CLAMP25-40X13 MM
999
BRACKET PIPE ELBOW TO CHARGING AIR INTERCOOLER
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
FILLER NECK FITTING
999
RUBBER SECTION ,D 339846D 437847
999
RUBBER MAT ,D 339846
999
SUPPORT FUEL TANK MOUNTING,D 339846
999
BEARING BRACKET TO SHACKLE
999
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
999
MUFFLER FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
CABLE HARNESS MANUAL CONTROL
999
REAR EXHAUST PIPE REAR
999
BRACKET AT MUFFLER
999
GUSSET PLATE BOTTOM RIGHT
999
GUSSET PLATE BOTTOM LEFT
999
GUSSET PLATE TOP RIGHT
999
GUSSET PLATE TOP LEFT
999
GUSSET PLATE RIGHT BOTTOM
999
GUSSET PLATE LEFT BOTTOM
999
CROSS MEMBER (REAR CROSS MEMBER)
999
HOSE
999
GROMMET BATTERY CABLE PASSAGE
999
FITTING CLUTCH HOSE M14X1 MM
999
FITTING CLUTCH SLAVE CYLINDER M 12X1TO 688 290 03 13
999
WASHER CAB TO FRONT CONSOLE
999
TYPE DESIGNATION , Replaced By: A6938170315
999
BRACKET LEFT, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER, Replaced By: A9795410140
999
HOSE
999
INTAKE CASE
999
HOSE FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
HOSE TO AIR CLEANER
999
BUMPER
999
COVERING
