Поз.
Артикул
Описание
5

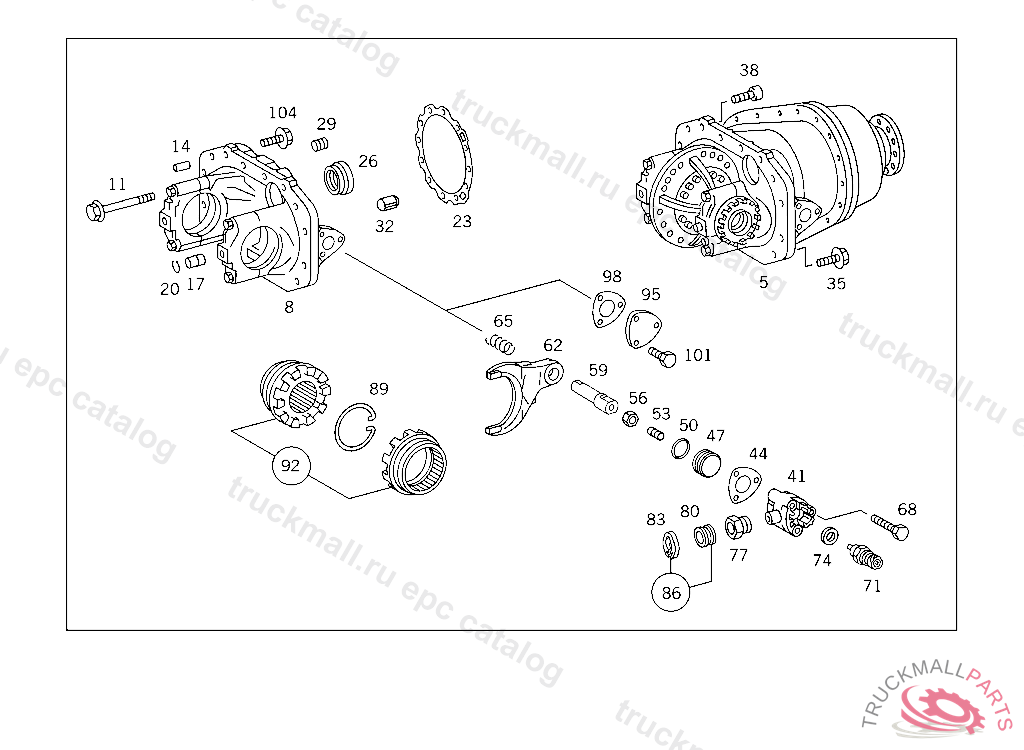

FINAL DRIVE , IDENTIFY MAJOR ASSEMBLY FROM VEDOC OR ORDER BY SPECIFYING THE VEHICLE IDENT NO. OR MAJOR ASSEMBLY NUMBER.
8
AXLE HOUSING DIFFERENTIAL GEAR BEARING, MAN AXLE
11
SCREW BEARING COVER TO AXLE HOUSING
14
CYLINDRICAL PIN
17
PIN AXLE HOUSING
20
SNAP RING
23
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
23
SPACER WASHER PINION HOUSING,AS REQUIRED 0.35 MM, NOT USED
23
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
23
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
23
SPACER WASHER PINION HOUSING,AS REQUIRED 0.20 MM
23
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
23
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
26
SEAL HOLDER PINION HOUSING TO AXLE HOUSING
29
THREADED INSERT
32
PIN PINION HOUSING TO AXLE HOUSING
35
SCREW PINION HOUSING TO AXLE HOUSING
38
SCREW IMPELLER TO COVER
38
SCREW , Replaced By: N000912010223
41
CYLINDER (OPERATING CYLINDER),TRANSVERSE DIFFERENTIAL LOCK
44
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
47
PISTON TRANSVERSE DIFFERENTIAL LOCK
47
PISTON TRANSVERSE DIFFERENTIAL LOCK
50
SEAL RING SHIFTING CYLINDER
53
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
56
NUT
59
SHAFT SHIFTING ROD,232175
62
SHIFTING FORK DIFFERENTIAL LOCK
65
SPRING SHIFTING FORK
68
SCREW BRACKET TO BEARING BRACKET
71
SWITCH OPERATING CYLINDER DIFFERENTIAL LOCK, Replaced By: A0015454909
71
SWITCH OPERATING CYLINDER DIFFERENTIAL LOCK, Replaced By: A0015458409
71
TAPPET SWITCH POWER TAKE-OFF UNIT CHECK (BAYONET TERMINAL)
74
SEAL RING SWITCH TO CASE COVER
77
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
77
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
77
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, VOSS 230
80
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
80
SEAL RING SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
83
LOCK SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
83
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
86
SEAL RING. REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
86
REPAIR KIT , Replaced By: A0309971648
89
LOCK FOLLOWER
92
DIFFERENTIAL LOCK PARTS KIT
95
COVER
98
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
101
SCREW BRACKET TO CAB REAR PANEL M 8X20
104
SCREW BRACKET TO BRACKET
104
SCREW REAR AXLE HOUSING TO AXLE CASING M 12X35
104
SCREW , Replaced By: A3559900604
