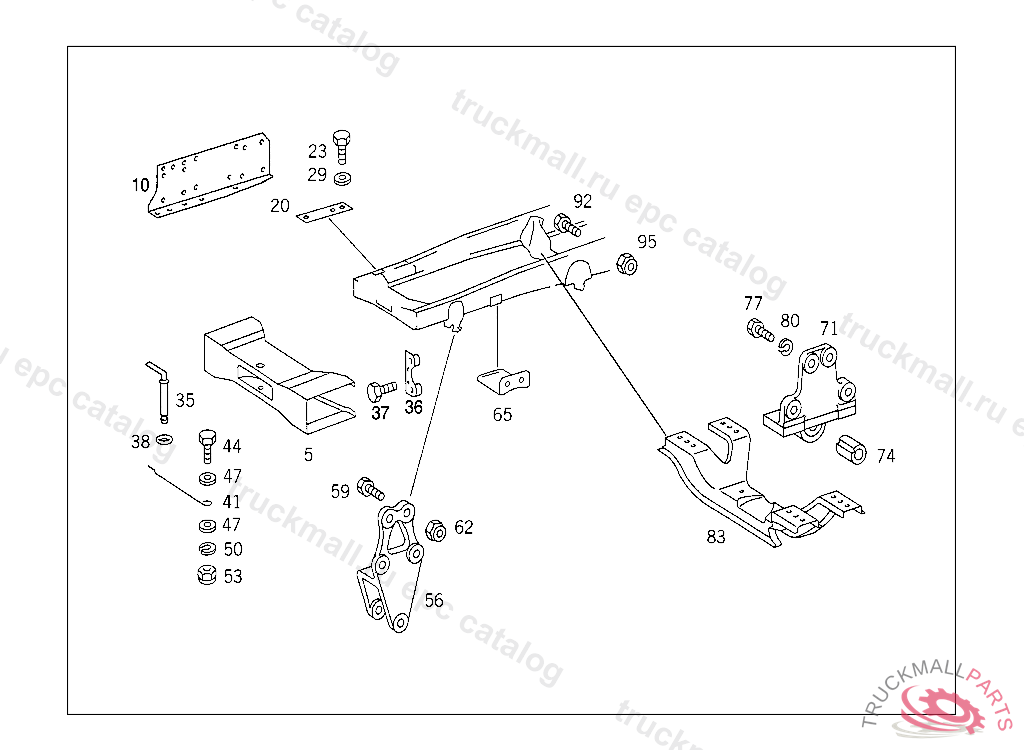

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
10
GUSSET PLATE
20
SHIM SUPPORT TO SIDE MEMBER
23
SCREW , Replaced By: N308676012026
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
29
WASHER
35
COUPLING PIN FOR COUPLING MOUTH
38
SEALING CORD FOR COUPLING MOUTH
41
LOCKING SPRING TO SECURE COUPLING PIN
44
SCREW BRACKET TO CROSS CONNECTION STRUT
44
SCREW , Replaced By: N304017008034
47
WASHER EXHAUST MUFFLER TO STRAP
47
WASHER , Replaced By: N000125008443
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
NUT , Replaced By: N913004008001
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
FRONT SPRING BRACKET FRONT, TO BE ADAPTED DURING ASSEMBLY
59
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
59
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
62
NUT , Replaced By: N910113016001
62
NUT CONSOLE TO SUPPORT
65
PLATE HELPER SPRING
71
REAR SUBFRAME REAR
74
RUBBER MOUNTING
74
RUBBER MOUNTING
77
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
77
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
80
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
83
CROSS MEMBER TRANSMISSION MOUNTING
92
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
95
NUT , Replaced By: N910113014000
95
NUT STEERING SUPPORT TO FRAME
999
GUSSET PLATE , Replaced By: A6203120987
999
GUSSET PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3873122087
999
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
