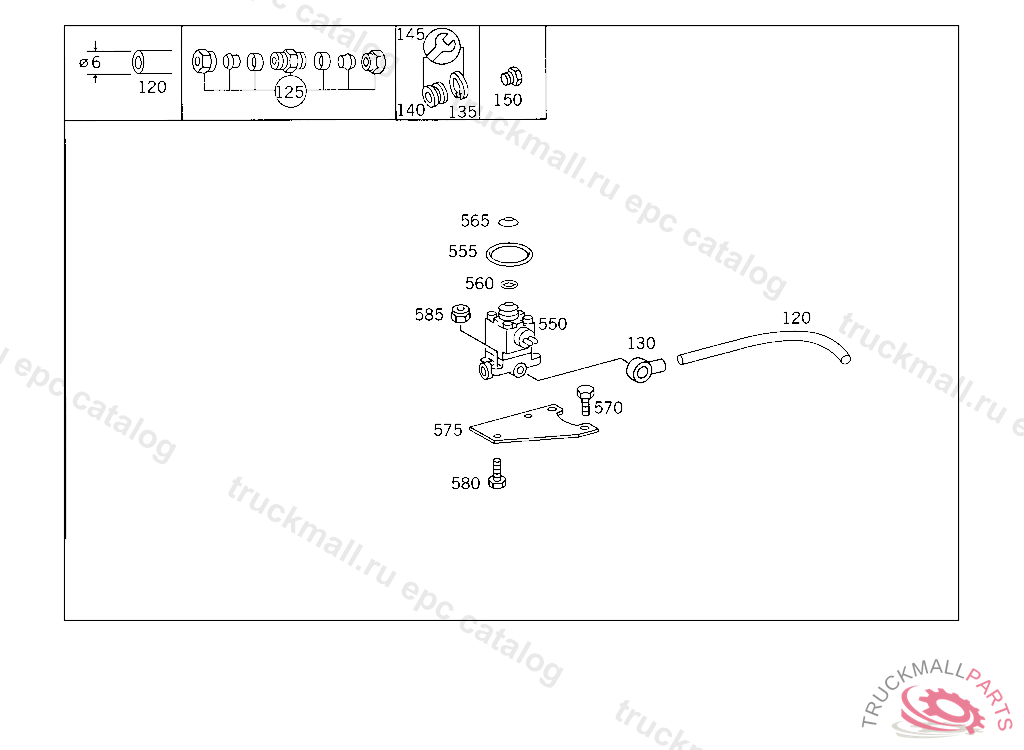

Поз.
Артикул
Описание
120
PLASTIC PIPE RISING PIPE 4X6 MM
120
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
125
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
130
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
135
LOCK , Replaced By: A0009945448
135
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
135
LOCK LINE CONNECTION
140
SEAL RING , Replaced By: A0009940747
140
LOCK RING LINE CONNECTION
140
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
145
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
145
REPAIR KIT , Replaced By: A0309971748
145
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
150
SCREW. UNION SCREW , Replaced By: A0009973734
150
SCREW. UNION SCREW LINE CONNECTION
150
SCREW. UNION SCREW LINE CONNECTION
550
VALVE (3/2-WAY SOLENOID VALVE) "WABCO"
555
SEAL RING25X1.5 MM
560
SEAL RING5.5X1.5 MM
565
PROTECTIVE CAPWABCO
570
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
575
BRACKET LONGITUDINAL DIFFERENTIAL LOCK CONTROL,5 963747
580
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
585
NUT , Replaced By: N913004006001
585
NUT PUMP TO BRACKET
585
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
999
HOLLOW SCREW LINE CONNECTION
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
999
FITTING , Replaced By: A0029971372
999
NUT CHECK VALVE TO AIR RESERVOIR
999
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
999
SEAL RING LINE CONNECTION
999
SCREW , Replaced By: N308676016006
999
SCREW BRACKET TO SIDE MEMBER M 12X38
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW , Replaced By: N304017008034
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET REDUCTION VALVE
999
ANGLE
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
TANK RECESS. T-FITTING LINE CONNECTION
999
BRACKET FRONT AXLE,RIGHT
999
BRACKET FRONT AXLE,LEFT
999
BRACKET REGULATING SOLENOID VALVE,5 953054
999
STRAP DIAPHRAGM CYLINDER
999
BRACKET COMPRESSED AIR LINES
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET TRAILING AXLE
999
BRACKET
999
BRACKET , Replaced By: A6544310740
999
BRAKE HOSE REAR AXLE BRAKE CYLINDER 700 MM,K 180897
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 700 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 600 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 500 MM,K 181361
999
CLAMP BRAKE HOSE
999
BRACKET DIAPHRAGM CYLINDER
999
LOCK FRONT AXLE,LEFT,K 009080
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
GROMMET FOR PASSAGE OF LINE
999
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
GUIDE BUSHING TWO-WAY VALVE TO FRAME
999
CLAMP BRAKE HOSE
999
FITTING RELAY VALVE,CONNECTION: "40"
999
VALVE (REDUCTION VALVE)
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
VALVE (3/2-WAY SOLENOID VALVE)
999
FITTING SHUTTLE VALVE
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
CONNECTOR COMPRESSED AIR PIPING,YB227219
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
JOINT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
