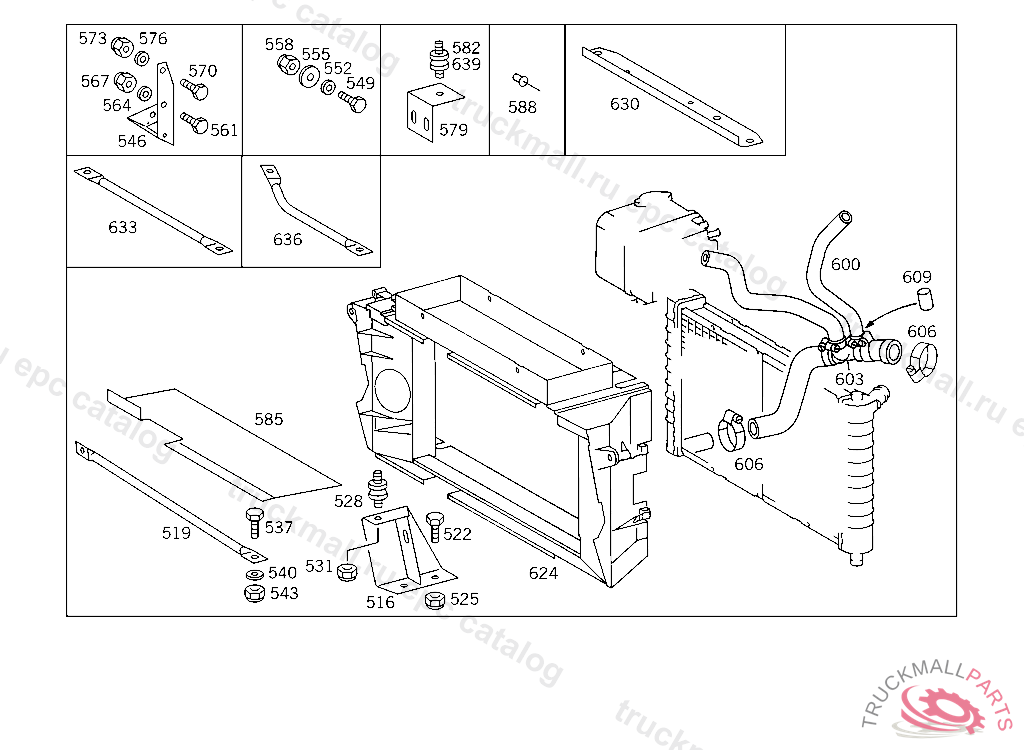

Поз.
Артикул
Описание
516
SUPPORT SUPPORT TO RIGHT SIDE MEMBER
516
SUPPORT SUPPORT TO LEFT SIDE MEMBER
519
STRUT SUPPORT TO SIDE MEMBER
522
SCREW BRACKET TO CROSS CONNECTION STRUT
522
SCREW STRUT TO CROSS MEMBER M 10X25
525
NUT STRAP TO BRACKET
528
RUBBER BUFFER
531
NUT CROSS MEMBER TO SIDE MEMBERS
537
SCREW CABLE HARNESS MOUNTING
540
WASHER EXHAUST MUFFLER TO STRAP
543
NUT STRAP TO BRACKET
546
ANGLE LEFT CONSOLE TO FRAME
546
ANGLE RIGHT CONSOLE TO FRAME
549
SCREW STRAP TO EXHAUST MUFFLER
552
WASHER EXHAUST MUFFLER TO STRAP
555
WASHER BRACKET TO COVERING
555
WASHER , Replaced By: N009021010209
558
NUT STRAP TO BRACKET
561
HEXAGON HEAD BOLT BRACKET TO BRACKET
564
WASHER STRUT TO CROSS MEMBER
567
NUT CROSS MEMBER TO SIDE MEMBERS
570
SCREW CONNECTOR TO REAR SHIFTING ROD
573
NUT CROSS MEMBER TO SIDE MEMBERS
576
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
579
BRACKET
582
BUFFER SUPPORT TO BRACKET
585
COVER PLATE AIR BAFFLE
588
RIVET LOWER PART RADIATOR
588
RIVET
600
HOSE FROM RADIATOR TO WATER PUMP, N 000001 P 100867
600
HOSE FROM WATER PUMP TO RADIATOR
603
INTERMEDIATE PIECE , Replaced By: A6685002175
606
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
606
CLAMP EXPANSION TANK & COOLING WATER LINE, FROM IDENT-NO. 827712, ALSO INSTALLED IN ENGINE 935766
606
CLAMP25-40X13 MM
606
CLAMP , Replaced By: N000000000667
606
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
609
RUBBER CAP ENGINE HEATING CONNECTION
624
AIR BAFFLE. AIR GUIDE CASE CHARGING AIR INTERCOOLER
630
BRACKET SUPPORT TO LEFT SIDE MEMBER
630
BRACKET SUPPORT TO RIGHT SIDE MEMBER
633
RADIATOR STRUT , Replaced By: A6705040122
633
STRUT , Replaced By: A6705000045
636
RADIATOR STRUT , Replaced By: A6705040222
636
STRUT , Replaced By: A6705000145
639
RUBBER BUFFER BRACKET TO SUPPORT
999
CLAMPING BRACKET
999
BRACKET
999
OIL FILLER NECK AT RADIATOR
999
SCREW COVER TO BATTERY SUPPORT M 6X16
999
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
