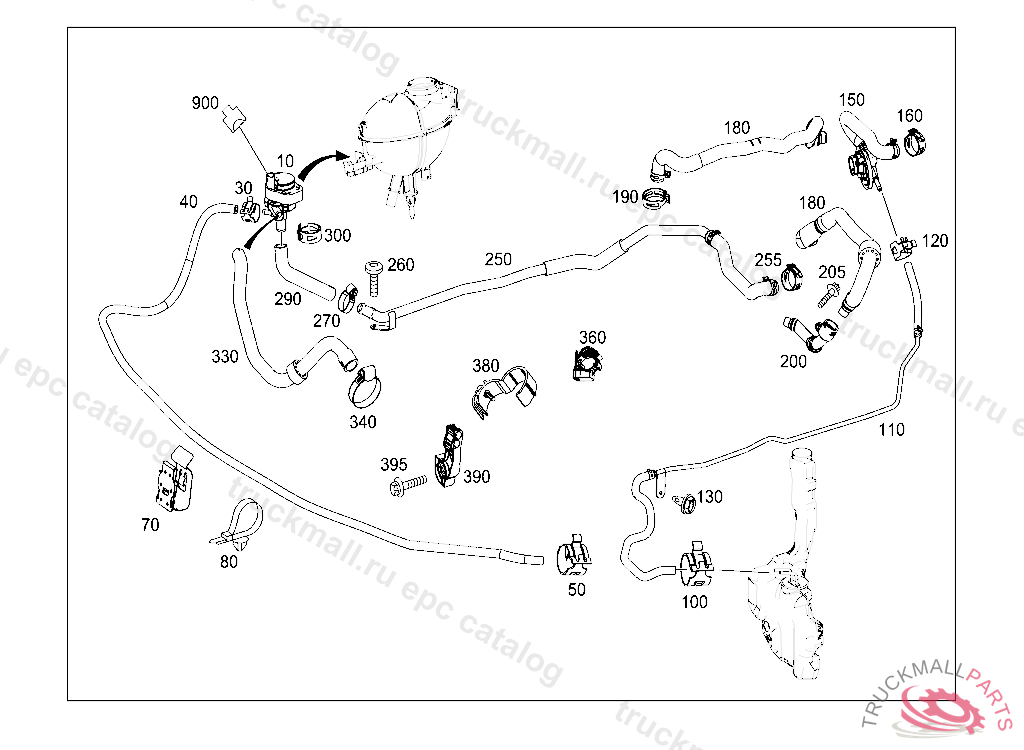

Поз.
Артикул
Описание
10
CIRCULATION PUMP
10
CIRCULATION PUMP
30
CLAMP14 MM
40
HOSE FROM RECIRCULATING PUMP TO HEAT EXCHANGER
50
CLAMP14 MM
70
BRACKET FASTENING, HOSES
80
CABLE STRAP LINE MOUNTING 260X3.3MM
100
CLAMP14 MM
110
HOSE ASSEMBLY FROM HEAT EXCHANGER TO DISTRIBUTOR
110
HOSE ASSEMBLY FROM HEAT EXCHANGER TO DISTRIBUTOR
120
CLAMP14 MM
130
SCREW SCREENING PLATE TO CYLINDER HEAD COVER M 5X10
150
HOSE FEED
150
HOSE FEED
150
HOSE FEED
150
HOSE FEED
160
CLAMP25 MM
180
HOSE ASSEMBLY BETWEEN ENGINE AND DISTRIBUTOR
190
SPRING HOSE CLAMP HOSE FASTENING,230301
250
HOSE LINE RETURN
250
HOSE LINE RETURN
255
CLAMP25 MM
260
SCREW SCREENING PLATE TO CYLINDER HEAD COVER M 5X10
270
CLAMP25 MM
290
HOSE FROM RETURN LINE TO RECIRCULATING PUMP
300
CLAMP25 MM
330
HOSE ASSEMBLY BETWEEN RECIRCULATING PUMP AND ENGINE
330
HOSE ASSEMBLY BETWEEN RECIRCULATING PUMP AND ENGINE
330
HOSE BETWEEN RETURN LINE AND ENGINE
330
HOSE ASSEMBLY RETURN LINE TO ENGINE
340
CLAMP25-40X13 MM
380
BRACKET AT BRACKET
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
