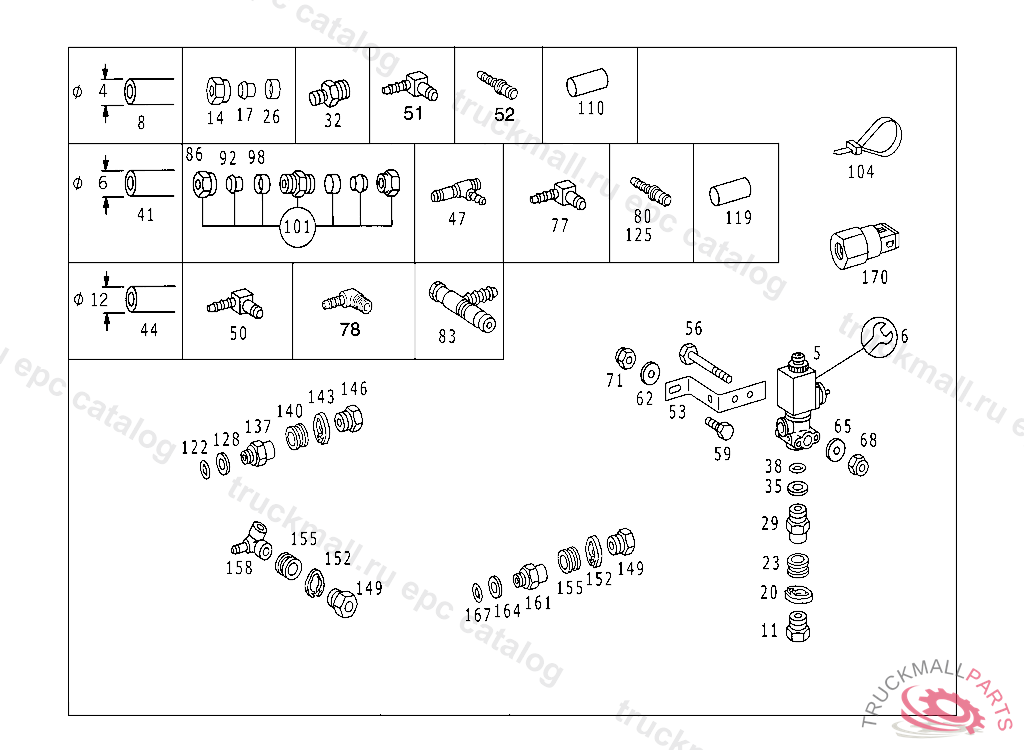

Поз.
Артикул
Описание
5
VALVE (SOLENOID VALVE) WABCO
5
VALVE 3/2-WAY VALVE
6
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
8
PLASTIC TUBE2X4MM, ORDER BY THE METER
11
SCREW. UNION SCREW , Replaced By: A0009973734
14
UNION NUT
14
UNION NUT LINE MOUNTING, Replaced By: N000000006521
17
GLAND LINE MOUNTING
17
GLAND , Replaced By: A0019901667
20
LOCK , Replaced By: A0009945448
23
SEAL RING , Replaced By: A0009940747
26
SLEEVE LEAK LINE
26
SLEEVE LINE MOUNTING
29
FITTING LINE CONNECTION
32
FITTING , Replaced By: A0019975372
35
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
35
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
38
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
41
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
44
HOSE , Replaced By: A0009872827
47
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, M 12X1.5 / 4 MM
50
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 16
51
ELBOW FITTING , Replaced By: A0019908171
51
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
52
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
53
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
56
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
59
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
62
WASHER BRACKET TO CAB REAR PANEL
65
WASHER , Replaced By: N009021006208
68
NUT BRACKET TO FIRE WALL
71
NUT HORN TO BRACKET M8
77
ELBOW FITTINGTO M10 / 4MM /VOSS 230
77
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
78
ELBOW FITTING , Replaced By: A0049905371
80
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
83
T-FITTINGTO M22 / 9MM / M10X1 / VOSS 230,D 248571
86
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
86
UNION NUT
92
GLAND , Replaced By: A0019901667
92
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
98
SLEEVE LEAK LINE
101
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
104
LOOM TIE ELECTRIC CABLE MOUNTING
110
INSULATING HOSE BLUE
110
INSULATING HOSE COLOR CODE YELLOW, ORDER BY THE METER
119
INSULATING HOSE COLOR CODE GREEN
119
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
119
INSULATING HOSE8X0,01 MM
119
INSULATING HOSE COLOR CODE BLUE,YB227219
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
125
CONNECTOR , Replaced By: A0029905378
128
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
THRUST RING LOCKING VALVE
128
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
137
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
140
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
143
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
146
SCREW. UNION SCREW LINE CONNECTION
149
SCREW. UNION SCREW , Replaced By: A0009973734
152
LOCK , Replaced By: A0009945448
155
SEAL RING , Replaced By: A0009940747
158
FITTING 3/2-WAY SOLENOID VALVE,CONNECTION: "20",5 766895, 5 806950
161
FITTING LINE CONNECTION
164
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
164
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
167
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
170
SWITCH LOCKING VALVE,CONNECTIONS: "12"
999
ELBOW FITTING AT CYLINDER
999
NUT ,D 091466
