Поз.
Артикул
Описание

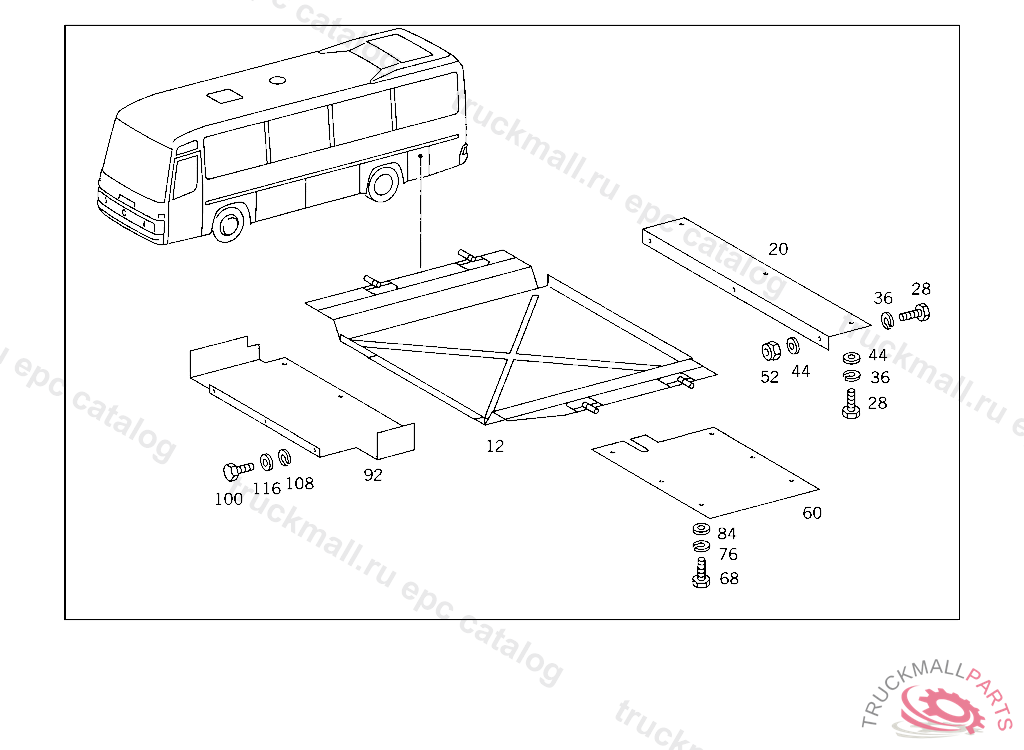

12
ANTINOISE CAPSULE
20
COVERING REAR
28
SCREW BRACKET ON LOAD SENSOR
36
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
44
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
NUT , Replaced By: N913004006001
52
NUT PUMP TO BRACKET
60
COVERING LATERAL
60
COVERING LATERAL
68
SCREW BRACKET ON LOAD SENSOR
76
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
84
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
92
COVERING TRANSMISSION
92
COVERING TRANSMISSION
100
SCREW BRACKET ON LOAD SENSOR
108
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
116
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
