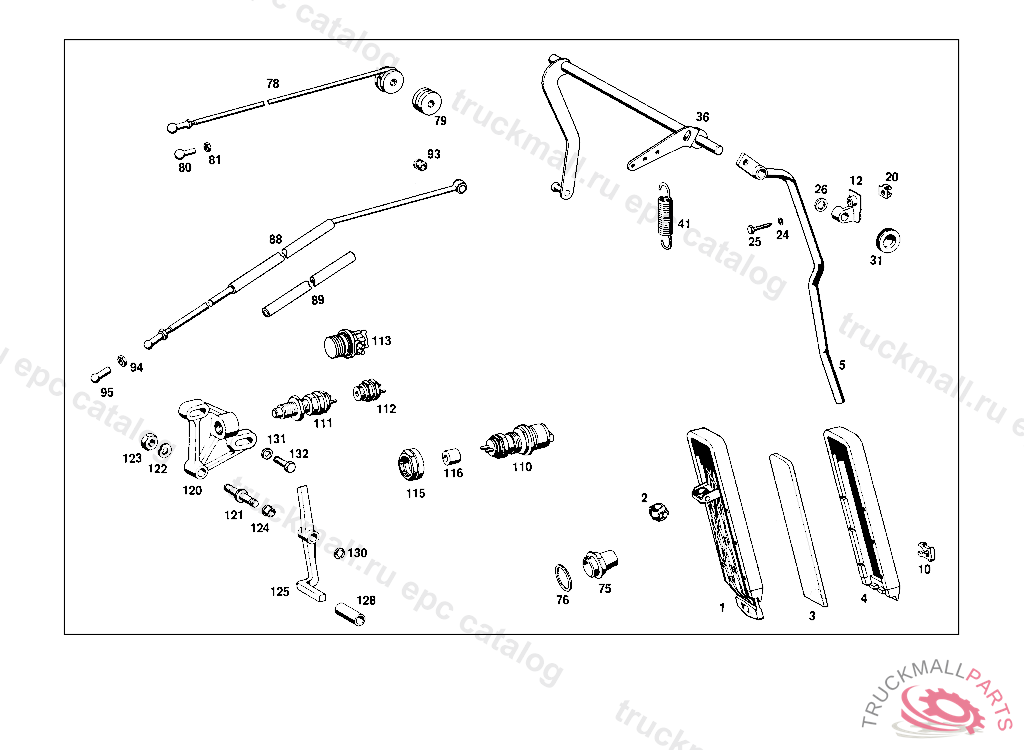

Поз.
Артикул
Описание
1
ACCELERATOR PEDAL
2
JOINT ,B 859430
3
ACCELERATOR PEDAL
3
PAD , Replaced By: A1233000204
4
PAD , Replaced By: A1233000204
4
ACCELERATOR PEDAL
5
LEVER
12
BEARING
20
CLIP PRE-GLOW TIME RELAY TO COWL
24
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
25
SHEET METAL SCREW
28
SPACER RING
31
GROMMET
36
SHAFT
41
SPRING
75
STOP
76
SEAL RING KICK-DOWN SWITCH
78
ROD
79
BOOT
80
BALL SOCKET , Replaced By: A0009918922
80
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
81
NUT TACHOGRAPH TO BRACKET
88
ROD
89
HOSE30 MM, ORDER BY THE METER
93
BUSHING CONTROL PRESSURE
94
NUT TACHOGRAPH TO BRACKET
95
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
95
BALL SOCKET , Replaced By: A0009918922
110
STOP , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
112
SWITCH , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
115
NUT
116
RUBBER BUFFER
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SPRING WASHER , Replaced By: N000137008212
999
WASHER , Replaced By: N000125008443
999
COTTER PIN
999
ACCELERATOR PEDAL , UP TO CHASSIS: 000,002,010 103904 015 131402 100,102,103,110,112 273248 115 137906, Replaced By: A1233000204, +001A1249888678
