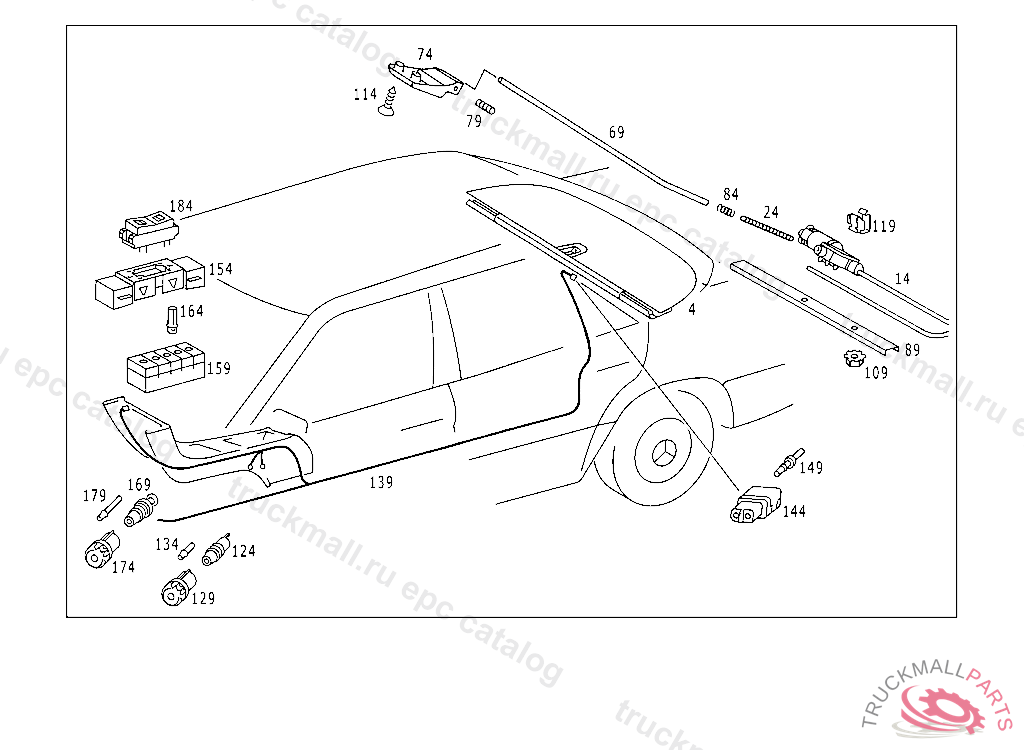

Поз.
Артикул
Описание
4
ROLLER BLIND GREY,B 145537
4
ROLLER BLIND LIGHT BROWN,B 145537
4
ROLLER BLIND MEDIUM RED
4
ROLLER BLIND BLUE,B 603275
4
ROLLER BLIND BRAZIL
4
ROLLER BLIND GREY,B 603275
4
ROLLER BLIND LIGHT BROWN,B 145537
4
ROLLER BLIND CREAM
4
ROLLER BLIND BLACK
4
ROLLER BLIND GREY
4
ROLLER BLIND GREY,B 145537
4
ROLLER BLIND BLACK
4
ROLLER BLIND BLUE
4
ROLLER BLIND BLUE
4
ROLLER BLIND MEDIUM RED,B 603275
4
ROLLER BLIND ,B 145537
4
ROLLER BLIND BLUE
4
ROLLER BLIND GREEN, NEW EQUIPMENT 11/86 : FROM IDENT-NO.126A 296642ALSO INSTALLED ON A 292413, A 294424
4
ROLLER BLIND LIGHT BROWN
4
ROLLER BLIND BLACK
4
ROLLER BLIND MEDIUM RED
4
ROLLER BLIND GREEN, NEW EQUIPMENT 11/86 : FROM IDENT-NO.126A 296642ALSO INSTALLED ON A 292413, A 294424
4
ROLLER BLIND BRAZIL
4
ROLLER BLIND MEDIUM RED
4
ROLLER BLIND GREEN,B 603275
4
ROLLER BLIND MEDIUM RED,B 145537
4
ROLLER BLIND CREAM
4
ROLLER BLIND LIGHT BROWN,B 603275
4
ROLLER BLIND ANTHRACITE,B 603275
4
ROLLER BLIND BLUE,B 145537
4
ROLLER BLIND BLACK,B 603275
4
ROLLER BLIND GREEN, NEW EQUIPMENT 11/86 : FROM IDENT-NO.126A 296642ALSO INSTALLED ON A 292413, A 294424
4
ROLLER BLIND BRAZIL,B 603275
4
ROLLER BLIND CREAM
4
ROLLER BLIND BRAZIL,B 603275
4
ROLLER BLIND CREAM,B 603275
4
ROLLER BLIND BLUE,B 603275
4
ROLLER BLIND LIGHT BROWN
4
ROLLER BLIND GREEN, NEW EQUIPMENT 11/86 : UP TO IDENT-NO.126A 296641ALSO INSTALLED ON A 292413, A 294424
4
ROLLER BLIND GREEN,B 145537
4
ROLLER BLIND MEDIUM RED,B 603275
4
ROLLER BLIND BRAZIL,B 145537
4
ROLLER BLIND CREAM,B 145537
4
ROLLER BLIND GREEN, NEW EQUIPMENT 11/86 : UP TO IDENT-NO.126A 296641ALSO INSTALLED ON A 292413, A 294424
4
ROLLER BLIND GREY,B 603275
4
ROLLER BLIND GREEN,B 145537
4
ROLLER BLIND GREY
4
ROLLER BLIND GREY
4
ROLLER BLIND BRAZIL
4
ROLLER BLIND LIGHT BROWN,B 603275
4
ROLLER BLIND GREEN,B 603275
4
ROLLER BLIND BRAZIL,B 145537
4
ROLLER BLIND BLACK,B 145537
4
ROLLER BLIND MEDIUM RED,B 145537
4
ROLLER BLIND CREAM,B 145537
4
ROLLER BLIND GREEN, NEW EQUIPMENT 11/86 : UP TO IDENT-NO.126A 296641ALSO INSTALLED ON A 292413, A 294424
4
ROLLER BLIND SENSE OF ROTATION,LEFT
4
ROLLER BLIND BLUE,B 145537
4
ROLLER BLIND CREAM,B 603275
14
ELECTRIC MOTOR
14
ELECTRIC MOTOR ,B 145537
24
ROPE ROLLER BLIND MOTOR, TO BE ADAPTED DURING ASSEMBLY
69
GUIDE
69
GUIDE
69
GUIDE ,B 603275
69
GUIDE ,B 145537
74
BEARING
74
BEARING ,B 145537
74
BEARING ,B 603275
74
BEARING
79
HEADLESS SETSCREW ,B 603275
84
SPRING ,B 145537
89
RAIL ,B 145537
109
NUT HINGE TO WHEELHOUSE
109
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
114
SHEET METAL SCREW
119
CLIP BELT LOCK TO SEAT RAIL
124
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
129
COVERTO 011 545 10 28
134
ROUND PIN BUSHING4 MM2
139
CABLE HARNESS REARVIEW MIRROR ADJUSTMENT,10/92
139
CABLE HARNESS REARVIEW MIRROR ADJUSTMENT,10/92
139
CABLE HARNESS
139
CABLE HARNESS REARVIEW MIRROR ADJUSTMENT,10/92
139
CABLE HARNESS , Replaced By: A1245403113, +001A1245400109
144
PIN BUSHING HOUSING TELL-TALE LAMP ASD
149
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
154
PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH VORN
159
PIN BUSHING HOUSING OUTBOARD TEMPERATURE INDICATOR
164
ROUND PIN BUSHING2.5 MM2
169
PLUG HOUSING MAIN CABLE HARNESS
174
COVERTO 011 545 10 28
179
PLUG PIN
184
SWITCH REAR WINDOW ROLLER BLIND
999
PARTS KIT ROLLER BLIND,RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION, ORDER ADDITIONALLY: 1 REAR WINDOW ROLLER BLIND
999
PARTS KIT ROLLER BLIND,RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION, ORDER ADDITIONALLY: 1 REAR WINDOW ROLLER BLIND
999
PARTS KIT ROLLER BLIND,RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION, RANGE OF DELIVERY DOES NOT INCLUDE: ROLLER BLIND, COVER RAIL, LEFT AND RIGHT COVERING, HEADREST CABLE HARNESS USED WITH ROLLER BLIND,END STOP/END SWITCH
