Mercedes N007981004325 - Болт

E 300 TURBODIESEL 124.133 200-320 FROM 10/92, 200D-300D FROM 7/93

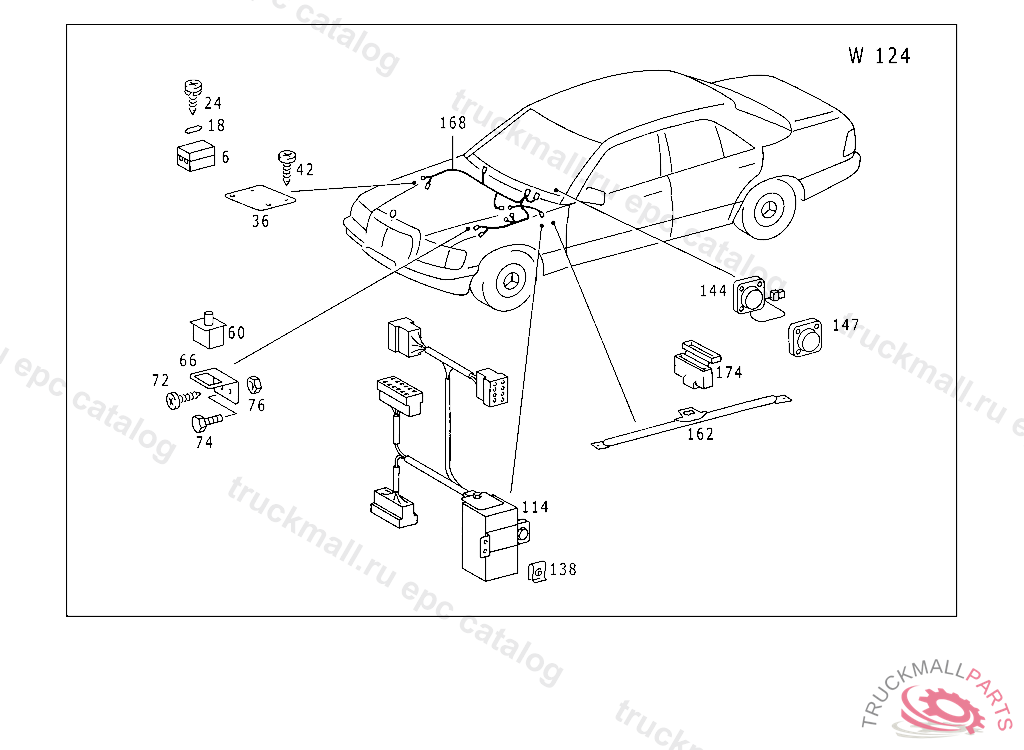

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 040 FUSE CABINET,FUSE BOX AND RELAY UNIT
  • Поз.
    Артикул
    Описание
  • 6
    FUSE BOX
  • 6
    FUSE BOX PRE-GLOW SYSTEM 50 A
  • 18
    FUSE25 A
  • 18
    FUSE30A
  • 24
    COMBINATION BOLT FUSE IN FUSE BOX
  • 36
    BRACKET FUSE BOX TO DAMPER STRUT COVERING
  • 42
    SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
  • 60
    SWITCH HAND BRAKE CONTROL
  • 66
    BRACKET ON/OFF SWITCH BRACKET,1.9.89 B 065822 F 122353
  • 66
    ANGLE ON/OFF SWITCH BRACKET,1.9.89 B 065821 F 122352
  • 72
    SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
  • 74
    SCREW BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
  • 76
    NUT BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
  • 114
    CONTROL UNIT (ALARM UNIT), FROM IDENT NO. C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
  • 114
    CONTROL UNIT (ALARM UNIT), UP TO IDENT NO. C 020764 EXCEPT FOR B 891779 - C 020763 WITH CODE 859
  • 114
    CONTROL UNIT (ALARM UNIT)
  • 138
    LOCK GROMMET TO CAB,4 940046
  • 144
    SWITCH EMERGENCY ALARM,STEERING COLUMN JACKET TUBE COVERING
  • 147
    CAP
  • 162
    STRUT BETWEEN FRONT PANEL PILLAR AND STEERING COLUMN JACKET TUBE STRUT
  • 168
    ELECTRIC CABLE ALARM UNIT
  • 174
    SOCKET-TERMINAL STRIP
  • 999
    BLINKER UNIT TAXI ALARM SYSTEM,RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
  • 999
    CONTROL UNIT TAXI ALARM SYSTEM,RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
  • 999
    BLINKER UNIT TAXI ALARM SYSTEM,RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
