Поз.
Артикул
Описание

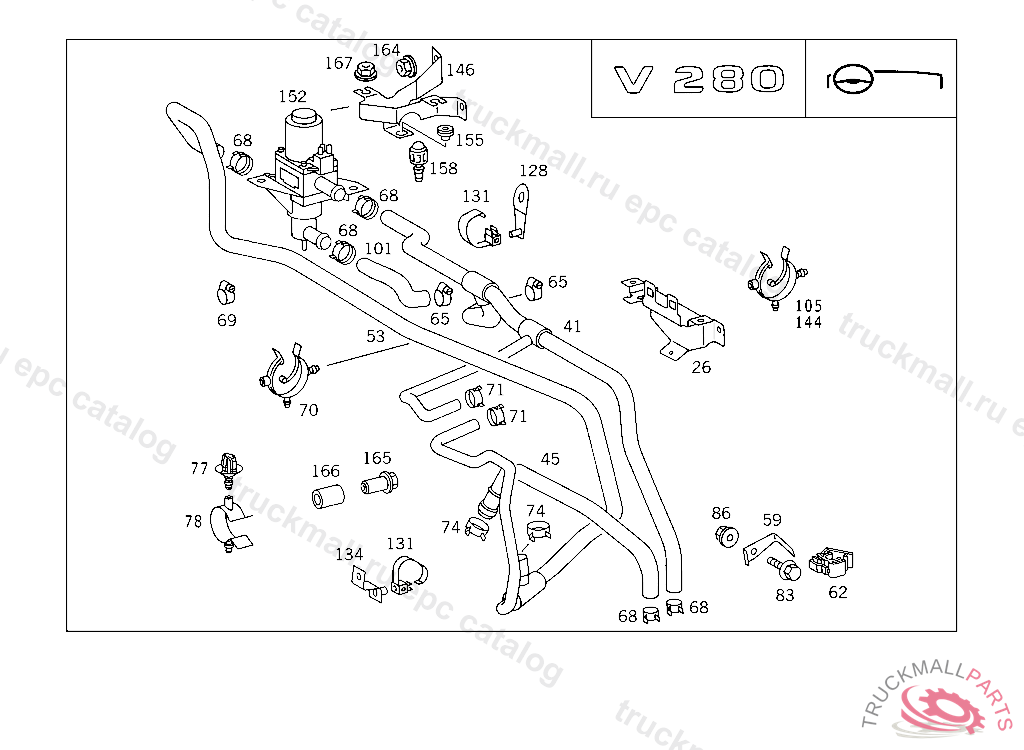

26
BRACKET FEED HOSE TO FIRE WALL
101
HOSE FROM VALVE TO HEAT EXCHANGER
105
HOSE BRACKET FEED LINE AND RETURN LINE 23-30 MM
128
BRACKET FEED HOSE TO FIRE WALL
131
BRACKET FEED LINE
144
HOSE BRACKET FEED LINE AND RETURN LINE 23-30 MM
144
CLAMP , Replaced By: A0009956265
146
BRACKET HEATING WATER VALVE
152
VALVE SUPPLIER: MESSRS. BOSCH, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
155
RUBBER BUFFER WATER VALVE TO BRACKET
158
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
164
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
167
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
999
HOSE HEATING FEED
