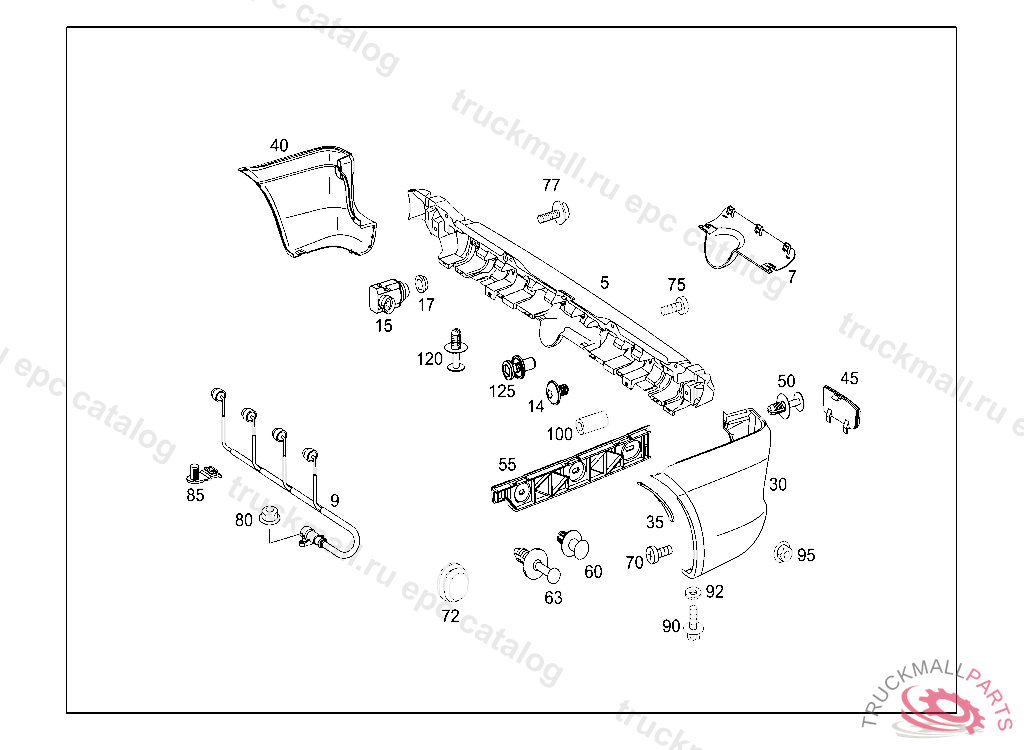

Поз.
Артикул
Описание
5
REAR BUMPER , 20111130 TO BE ADAPTED DURING ASSEMBLY TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS
5
5
5
REAR BUMPER , 00618320030331 12538320050126 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS
5
REAR BUMPER ,360347220100831 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS
5
REAR BUMPER ,360347120100831 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS
5
REAR BUMPER ,360347120100831 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS, Replaced By: A6398800371
5
REAR BUMPER ,360347120100831 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS, Replaced By: A6398800571
5
REAR BUMPER ,360347120100831 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS, Replaced By: A6398800371
7
COVER HITCHING MECHANISM,360347120100906 9999QFT639L9000 COLORLESS
7
COVER TRAILER COUPLING, 9B51QFT636A6055 ANTHRACITE
9
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, REAR,360347220100906
9
WIRING HARNESS PARKTRONIC SYSTEM, REAR,360347120100906
9
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, REAR,360347220100906
14
BOLT. SCREW PARKING BRAKE VALVE TO BRACKET M8X12, Replaced By: N000000002207
15
SENSOR CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
15
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION
17
SPACER RING PARKTRONIC SYSTEM, A 55589720030630804 E 02000020070101804 A 97499920070630 E 06000020080901809
17
SPACER RING SENSOR, PARKTRONIC SYSTEM,367361420110630
30
30
REAR BUMPER REAR OUTSIDE LEFT, 20111130 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS
30
35
35
40
REAR BUMPER REAR OUTSIDE RIGHT, 20111130 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT639L9000 COLORLESS
40
40
45
REFLECTOR RIGHT
45
REFLECTOR LEFT
45
REFLECTOR LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 42357120080227, Replaced By: A6398260440
45
REFLECTOR RIGHT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 42357120080310, Replaced By: A6398260540
50
RIVET BUSHING AND LEVER TO CAB
55
TAKE-UP DEVICE BUMPER,RIGHT
55
55
55
TAKE-UP DEVICE BUMPER, LEFT
60
RIVET BUSHING AND LEVER TO CAB
63
RIVET COVERING TO SIDE MEMBER
63
PIN CONTACT TAKE-UP DEVICE TO BODY, 20120629
70
BOLT REAR BUMPER
72
STOP PLUG TAKE-UP DEVICE TO BODY
75
BOLT REAR BUMPER
77
BOLT. SCREW PARKING BRAKE VALVE TO BRACKET M8X12, Replaced By: N000000002207
80
NUT COVERING TO CAB FIRE WALL
85
BRACKET LINE MOUNTING
90
HEXALOBULAR BOLT BRACKET TO TIMING CASE COVER M6X80
92
WASHER LINE MOUNTING
95
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
100
120
RIVET BUSHING AND LEVER TO CAB
125
EXPANSION RIVET BRACKET TO BODY
