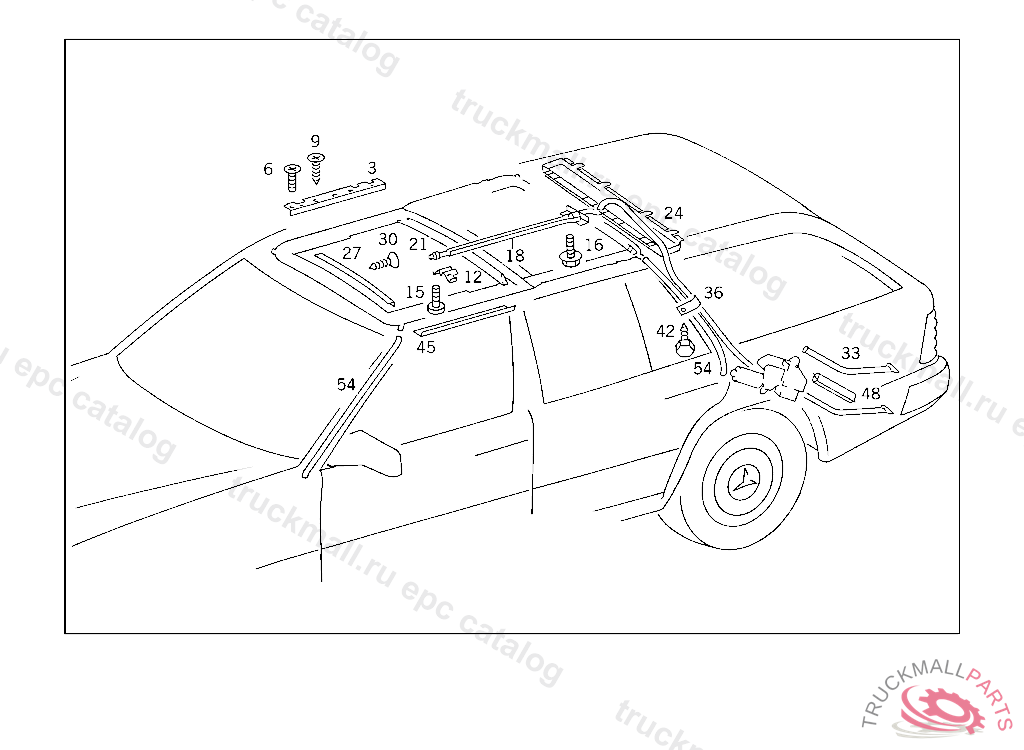

Поз.
Артикул
Описание
3
SLIDING RAIL FRONT RIGHT
3
SLIDING RAIL FRONT LEFT
3
SLIDING RAIL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 354333, Replaced By: A1247822026
3
SLIDING RAIL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 354333, Replaced By: A1247821926
6
SCREW
9
SCREW , Replaced By: A1409900436
9
SCREW
12
SHACKLE AT TRANSPORT BRIDGE
12
SHACKLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 554503, Replaced By: A1267820140
15
SCREW SHACKLE TO BRIDGE
16
SCREW
18
TUBE FROM MOTOR TO SLIDING ROOF PLATE
21
CABLE FROM MOTOR TO SLIDING ROOF PLATE
21
CABLE , Replaced By: A1247801589
21
CABLE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1247801189
24
COVERING ON SLIDING ROOF DRIVE CABLE CONDUIT UNDER ROOF PANELLING
27
COVER RAIL
30
SHEET METAL SCREW
33
TUBE AT MOTOR
36
CLAMP TUBE TO REAR PILLAR
42
SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083
45
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, LEFT
45
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, RIGHT
48
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
54
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
54
HOSE , Replaced By: A1247820796
999
TUBE FROM MOTOR TO SLIDING ROOF PLATE
