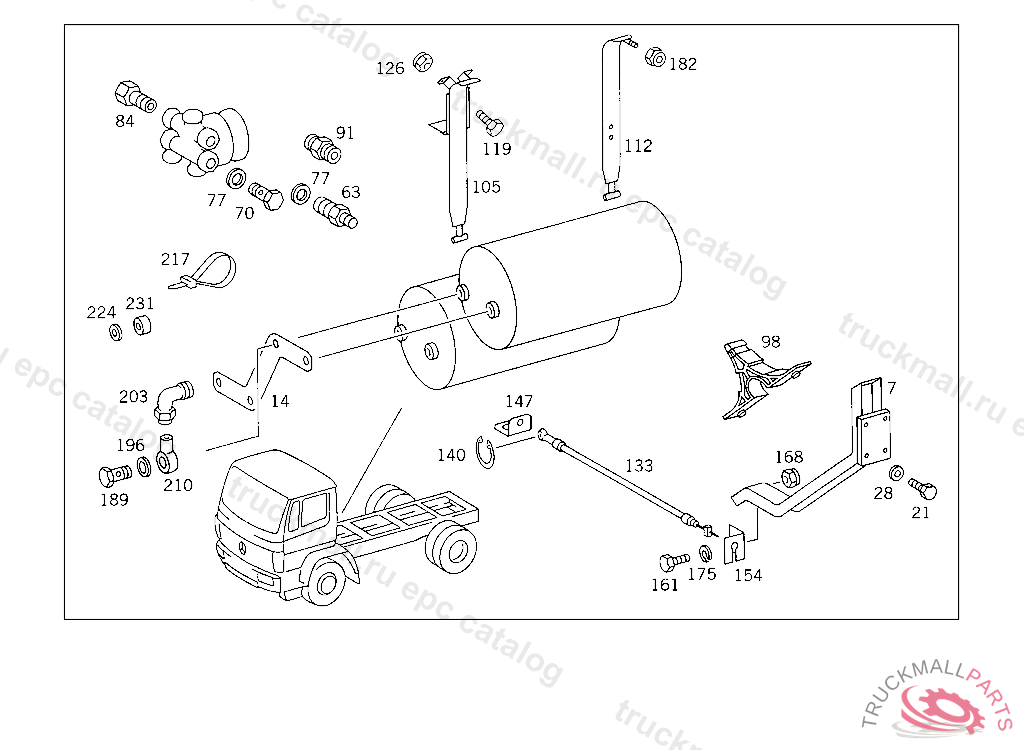

Поз.
Артикул
Описание
7
CONSOLE APPARATUS SUPPORT
14
LOCK APPARATUS SUPPORT
21
SCREW END PIECE TO EXHAUST PIPE M 10X25
28
WASHER , Replaced By: N006902011102
28
WASHER , Replaced By: N006902011100
28
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
63
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
70
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
77
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
84
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
91
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
91
FITTING AIR RESERVOIR,CONNECTION: "13"
98
BASE AIR RESERVOIR TO APPARATUS SUPPORT, BOTTOM
105
STRAP AIR RESERVOIR TO CONSOLE
112
STRAP AIR RESERVOIR TO CONSOLE
119
SCREW REAR AXLE REGULATING SOLENOID VALVE
126
NUT , Replaced By: N913004008001
126
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
133
WIRE CABLE AIR RESERVOIR DRAIN,5 5930225 318121
140
RING DRAIN VALVE TO 000 432 08 07, NOT USED
140
RING , Replaced By: A0005830296
147
BRACKET MANUAL DRAIN
154
BRACKET MANUAL DRAIN
161
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
161
SCREW BRACKET TO TRANSMISSION
161
SCREW , Replaced By: N308676012038
168
NUT , Replaced By: N910113010000
168
NUT SUPPORT TO SIDE MEMBER
168
NUT STRAP TO BRACKET
168
NUT STRAP TO BRACKET
175
CLIP CABLE TO BRACKET,5 318121
182
NUT , Replaced By: N910113010000
182
NUT STRAP TO BRACKET
189
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
196
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
203
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
210
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
210
BANJO UNION , Replaced By: N915052009009
217
LOOM TIE LINE MOUNTING 280 MM
217
LOOM TIE LINE MOUNTING
224
WASHER EXHAUST MUFFLER TO STRAP
224
WASHER , Replaced By: N000125008443
231
WASHER BRACKET TO LEFT SIDE MEMBER
231
WASHER , Replaced By: A3609902340
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
999
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
SCREW , Replaced By: N304017008016
999
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",5 936365
999
WASHER BRACKET TO FRAME
999
CLIP AIR RESERVOIR DRAIN,5 593023
999
CABLE AIR RESERVOIR DRAIN,5 593023
999
BRACKET BRACKET TO STRAP,5 593023
999
CONSOLE AIR RESERVOIR TO FRAME
999
CONSOLE (PROTECTION AGAINST TORSION),5 936365
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
