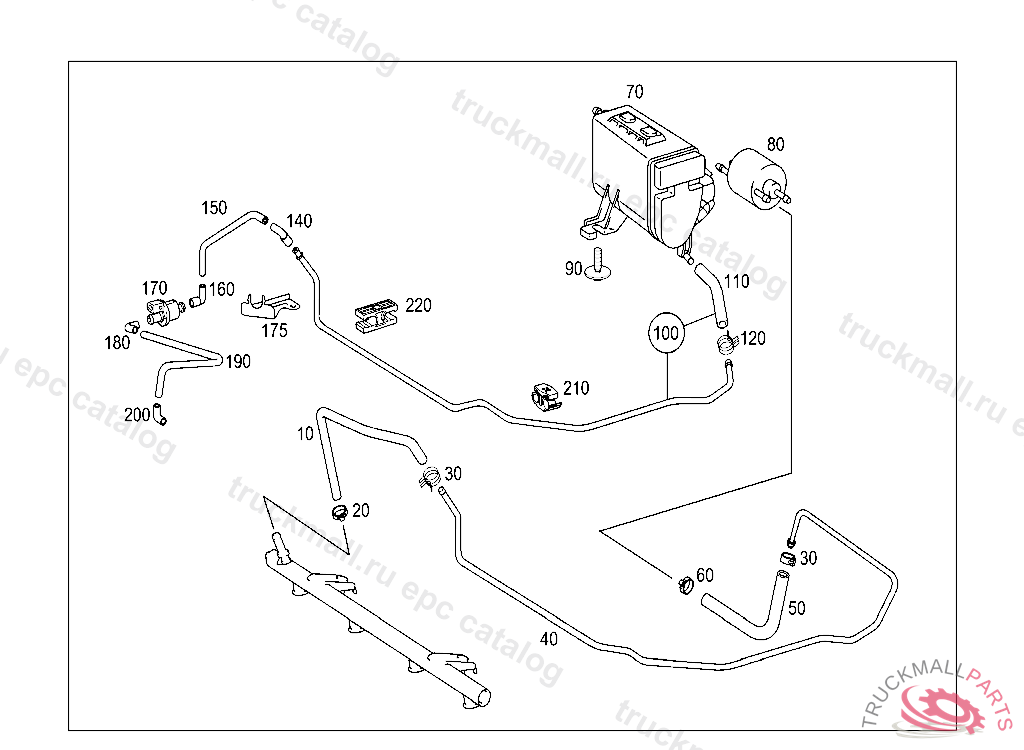

Поз.
Артикул
Описание
10
HOSE FROM FEED LINE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
10
HOSE FROM FEED LINE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1684760127
10
HOSE FROM FEED LINE TO ENGINE, Replaced By: A1684767926
20
HOSE CLAMP HOSE ATTACHMENT
30
HOSE CLAMP HOSE ATTACHMENT
40
LINE FEED LINE
50
HOSE FROM FEED LINE TO FILTER 240 MM
60
HOSE CLAMP HOSE ATTACHMENT
70
FUEL FILTER FOR ACT. CHARCOAL FILTER AND FUEL FILTER
80
FUEL FILTER
90
BOLT FUEL FILTER TO SUBSTRUCTURE
100
LINE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE
110
HOSE FROM RETURN LINE TO FUEL TANK
120
HOSE CLAMP HOSE ATTACHMENT
140
HOSE REGENERATION VALVE TO THROTTLE HOUSING,C 013142SIEHE KG 15
150
BREATHER PIPE REGENERATION LINE, J 07147319980715 J 22122619990410
150
BREATHER PIPE REGENERATION LINE, J 22122719990410
160
HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE
170
PURGE VALVE , J 07147319980731 J 22122619990410
175
BRACKET
180
HOSE DISTRIBUTOR TO REGENERATION VALVE, RIGHT, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
190
BREATHER PIPE REGENERATION VALVE TO INTAKE PIPE
200
HOSE REGENERATION VALVE TO THROTTLE HOUSING,C 013142SIEHE KG 15
210
CLAMP. LOCK FUEL LINES
