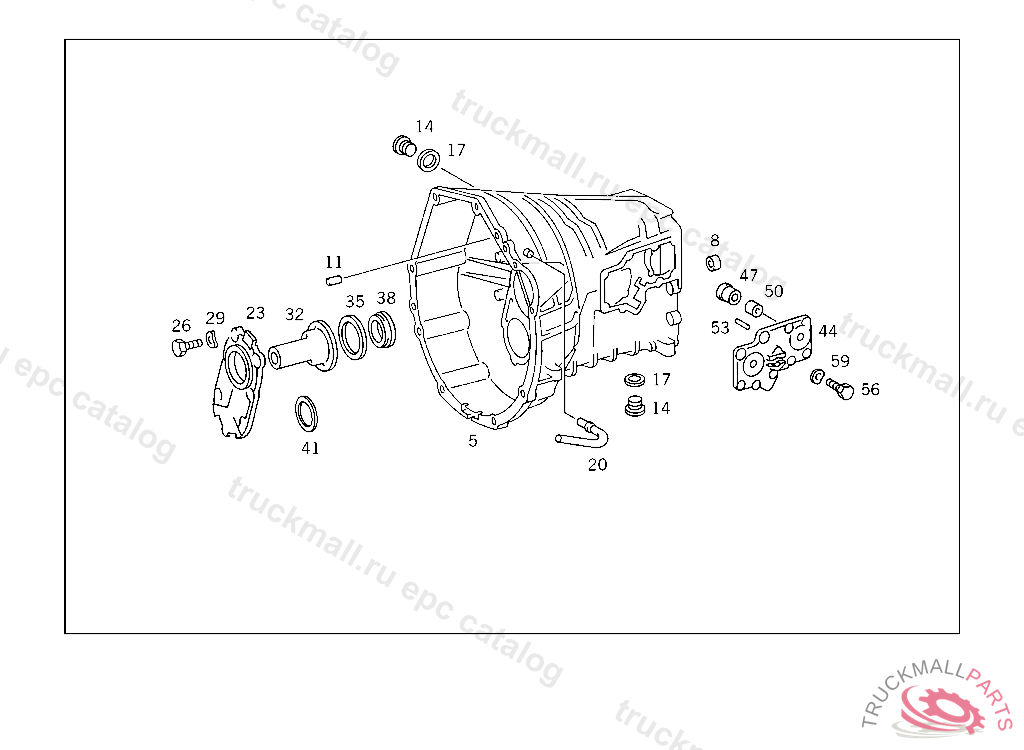

Поз.
Артикул
Описание
5
TRANSMISSION CASE
8
BUSHING
11
CYLINDRICAL PIN
14
SCREW PLUG
14
SCREW PLUG , Replaced By: A2109970132
17
SEAL RING OIL FILLING AND OIL DRAIN
20
PIPE BELL HOUSING BREATHING
23
TRANSMISSION CASE COVER
26
SCREW , Replaced By: N000933008337
26
SCREW , Replaced By: N304017008027
26
SCREW , Replaced By: A0099900101
26
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
26
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
29
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
29
SPRING WASHER , Replaced By: N000137008212
32
GUIDE TUBE
35
WASHER0.4
35
WASHER0.5
35
WASHER0.3
38
SEAL RING
38
SEAL RING
41
WASHER COUNTERSHAFT,FRONT 2.00 MM
41
WASHER COUNTERSHAFT,FRONT 50 X 62 X 0.4
41
WASHER COUNTERSHAFT,FRONT 50 X 62 X 0.3
41
WASHER COUNTERSHAFT,FRONT 50 X 62 0.5
44
COVER
47
BUSHING
50
NEEDLE BEARING , Replaced By: A0129810510
53
CYLINDRICAL PIN DRIVE SHAFT,REAR
56
SCREW COVER PLATE TO BRACKET
59
SPRING WASHER LICENSE PLATE TO BRACKET
