Поз.
Артикул
Описание

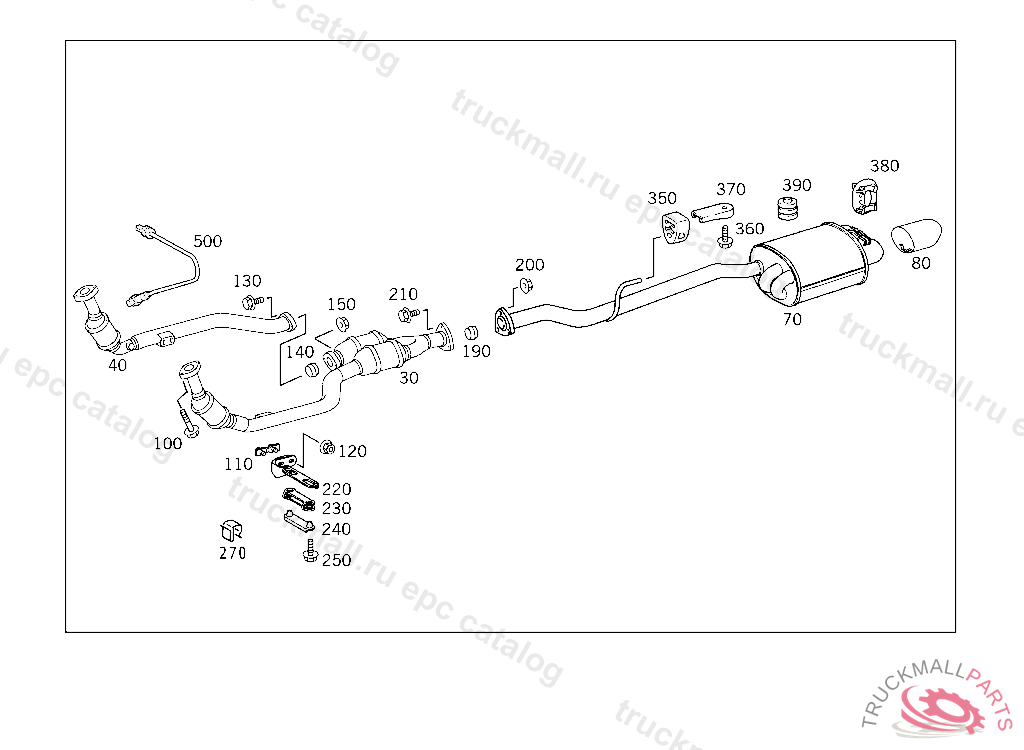

70
EXHAUST PIPE CENTRAL AND REAR
80
END PIECE TAIL PIPE TO EXHAUST MUFFLER TO A 170 490 03 21
100
BOLT AND WASHER ASSY. FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M8X55
110
PLATE BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
120
NUT , Replaced By: A1409900750
190
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
200
NUT POWER CYLINDER TO BRACKET
210
BOLT AND WASHER ASSY. FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M8X55
220
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION, RIGHT
220
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION, RIGHT
220
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION, LEFT
230
BASE PLATE BRACKET TO TRANSMISSION
240
BASE PLATE FRONT EXHAUST PIPE TO TRANSMISSION
250
SCREW CLAMP ON BRACKET
270
CLIP BELT LOCK TO SEAT RAIL
270
CLIP23 X 24 MM
270
BRACKET
360
SCREW PUMP TO BRACKET
360
SCREW-AND-WASHER ASSEMBLY SUSPENSION REAR MUFFLER,LEFT M8X25
380
SUSPENSION RING REAR MUFFLER SUSPENSION
390
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
500
OXYGEN SENSOR DIAGNOSTICS PROBE LEFT AND RIGHT TO TWC CONVERTER, A 00876720000630800
500
SENDER UNIT 02 SENSOR IN FRONT OF CATALYTIC CONVERTER
500
OXYGEN SENSOR UPSTREAM CATALYTIC CONVERTER, J 56858920000131
