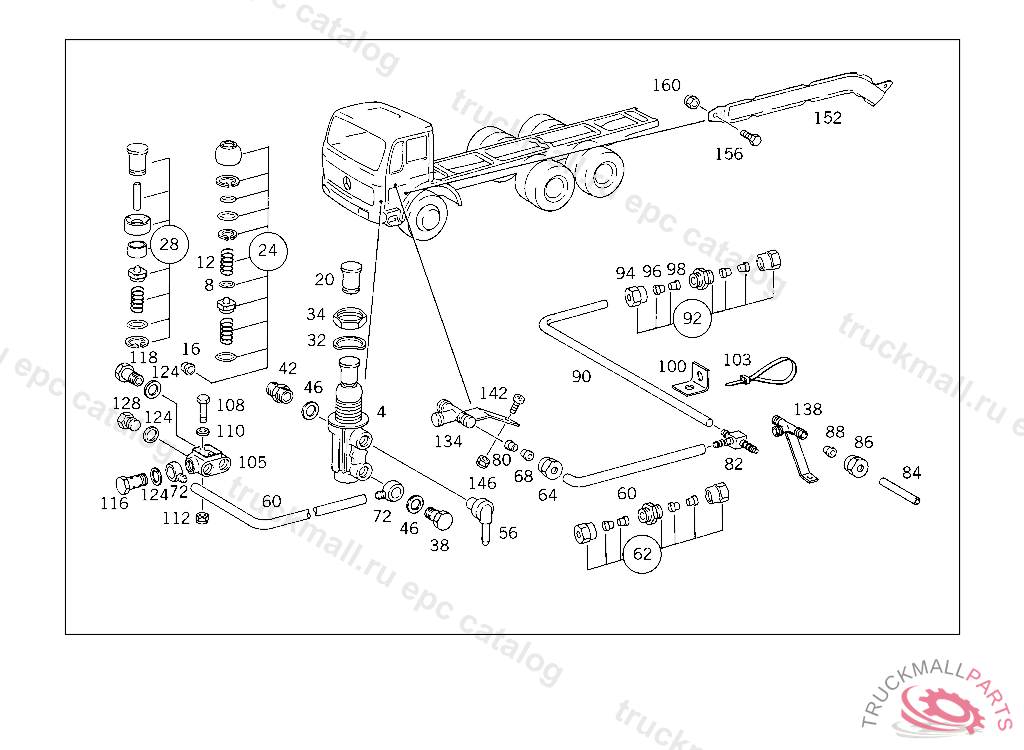

Поз.
Артикул
Описание
4
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
4
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
8
SEAL RINGTO 000 434 21 01
12
SPRINGTO 000 434 21 01
16
STRAINERTO 000 434 21 01
20
HANDLETO 000 434 23 01
24
REPAIR KIT 3/2-WAY VALVE WABCO
28
REPAIR KIT 3/2-WAY VALVE BOSCH
32
SPRING WASHER AT CAB FLOOR
34
NUT SUCTION LINE TO OIL PUMP
38
HOLLOW SCREW HEATING CONNECTION
42
FITTING LINE CONNECTION, Replaced By: N000000006446
42
FITTING LINE CONNECTION
46
SEAL RING LINE CONNECTION
56
BREATHER , Replaced By: A3933280065
56
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
60
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
60
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
62
FITTING , Replaced By: A0029905971
62
FITTING (PARTS KIT),LINE RUPTURE
64
UNION NUT LINE CONNECTION
68
GLAND LINE CONNECTION
72
BANJO UNION , Replaced By: N915052006013
72
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
80
SLEEVE , Replaced By: N915062006000
80
SLEEVE LINE CONNECTION
84
LINE , Replaced By: A0004296201
84
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
86
UNION NUT
88
GLAND , Replaced By: A0019901667
88
SEAL CONE
90
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
90
PLASTIC PIPE RISING PIPE 4X6 MM
92
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
94
UNION NUT
96
GLAND , Replaced By: A0019901667
96
SEAL CONE
98
BUSHING , Replaced By: N915062004000
98
SLEEVE LEAK LINE
103
LOOM TIE LINE MOUNTING
103
LOOM TIE LINE MOUNTING 280 MM
105
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
108
SCREW , Replaced By: N304017006027
108
SCREW APPARATUS PLATE M 6X45
110
WASHER , Replaced By: N009021006208
110
WASHER COMPRESSED AIR LINE TO BRACKET
112
NUT , Replaced By: N913004006001
112
NUT PUMP TO BRACKET
116
HOLLOW SCREW LINE CONNECTION
118
HOLLOW SCREW HEATING CONNECTION
124
SEAL RING LINE CONNECTION
128
SCREW PLUG , Replaced By: N000908012009
128
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
134
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
138
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
142
SCREW , Replaced By: N000000001146
142
SCREW CLAMP MOUNTING M 6X16
146
NUT , Replaced By: N913004006001
146
NUT PUMP TO BRACKET
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
CUP 3/2-WAY VALVE WABCO
