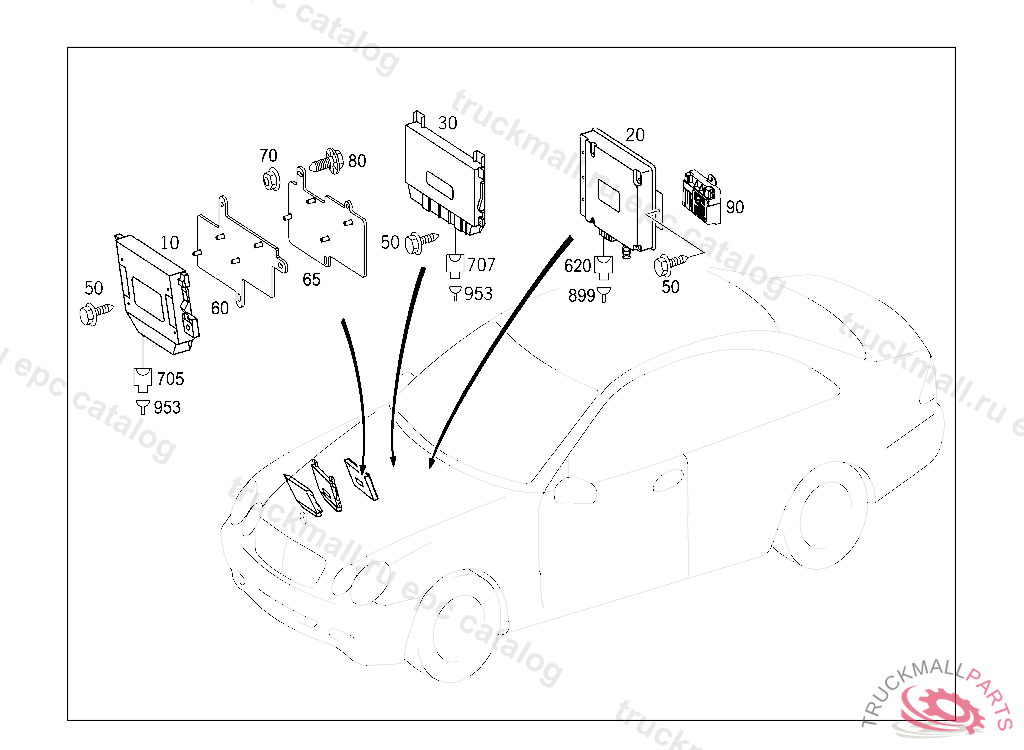

CLK 500 - 209.372 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

  • Поз.
    Артикул
    Описание
  • 30
    CONTROL UNIT PARKTRONIC SYSTEM, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804 E 02999920061231
  • 50
    SCREW
  • 620
    PLUG HOUSING DOOR SEPARATION POINT, REAR 8-PIN MQS,X35/3 X35/4
  • 620
    PLUG HOUSING. PLUG CONTROL UNIT 8 POLIG, A 394036 X 004166 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 394035 / X 004165 WITH CODE 808
  • 705
    PLUG HOUSING CONTROL UNIT EGS
  • 705
    PLUG HOUSING CONTROL UNIT EGS
  • 705
    PLUG HOUSING CONTROL UNIT CONNECTION
  • 705
    COVER. CAP CONTROL MODULE FOR ELECTRONIC TRANSMISSION CONTROL TO 210 545 01 40
  • 705
    COVER. BRACKET RELAY, A 394035 J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807
  • 707
    CAPTO 210 545 01 40
  • 707
    PLUG HOUSING CONTROL UNIT EGS
  • 899
    REP.SET CONTACT0.75 MM2 MQS, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
  • 899
    FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
  • 953
    CONTACT SPRING0.5-1.0 MM2
