Поз.
Артикул
Описание

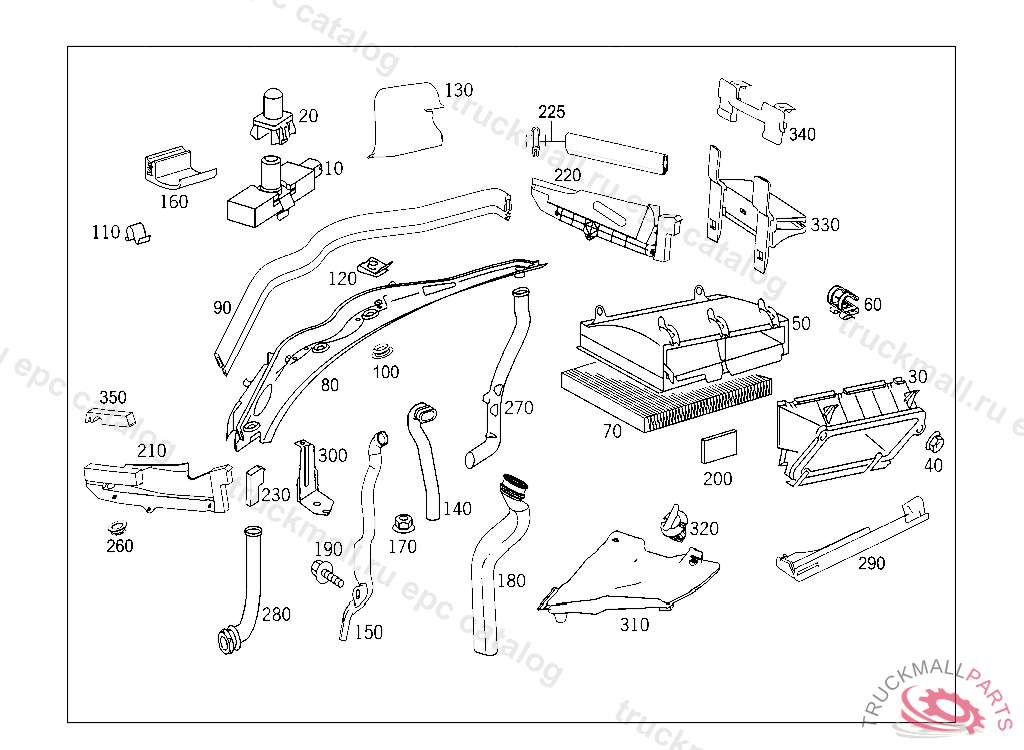

10
SENSOR SUN SENSOR
10
LIGHT SENSOR SUN SENSOR, Replaced By: A2118701310
20
COVER SUN SENSOR
30
HOUSING DUST FILTER
30
HOUSING DUST FILTER
40
NUT MOUNTING FRAME TO SUPPORT M6
50
FILTER BOWL FILTER FUER STAUB-/KOMBIFILTER RECHTSLENKER
50
HOUSING FILTER
60
MOUNTING CLAMP HOUSING, A 42814020020812 E 02000020070101
70
COMBINATION FILTER INBOARD
70
COMBINATION FILTER INBOARD
80
COVER COVERING ABOVE ELECTRONICS
80
COVER COVERING ABOVE ELECTRONICS
90
SEAL RIGHT
100
BUSHING
110
CLIP AT COVERING
120
LOCK NUT. LOCK
130
SEAL ON A-PILLAR
130
SEAL ON A-PILLAR
140
FITTING CENTRAL LEFT
160
SEAL SCREENING PLATE
180
FITTING CENTRAL RIGHT
190
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
200
SEAL AT SIDE MEMBER
210
DRIP MOULDING AT RIGHT SIDE MEMBER,TOP
210
DRIP MOULDING AT LEFT SIDE MEMBER, TOP LINKS/LINKSLENKER
220
DRIP MOULDING AT LEFT SIDE MEMBER, TOP
220
DRIP MOULDING AT RIGHT SIDE MEMBER,TOP RECHTS/LINKSLENKER
225
SEAL UPPER WATER DRAIN, A 42814020020813
230
SEAL CROSS MEMBER
270
DRIP MOULDING ENGINE COMPARTMENT
270
DRIP MOULDING ENGINE COMPARTMENT
280
DRIP MOULDING TOP
280
DRIP MOULDING ON WATER DRAIN AND LONGITUDINAL MEM. BOTTOM
300
BRACKET COVERING
300
BRACKET COVERING
310
COVER AIR DUCT
310
COVER AIR DUCT
320
CATCH COVERING TO COVERING
330
BRACKET AT PARTITION PANEL
340
COVER
350
SEAL
