Поз.
Артикул
Описание
5

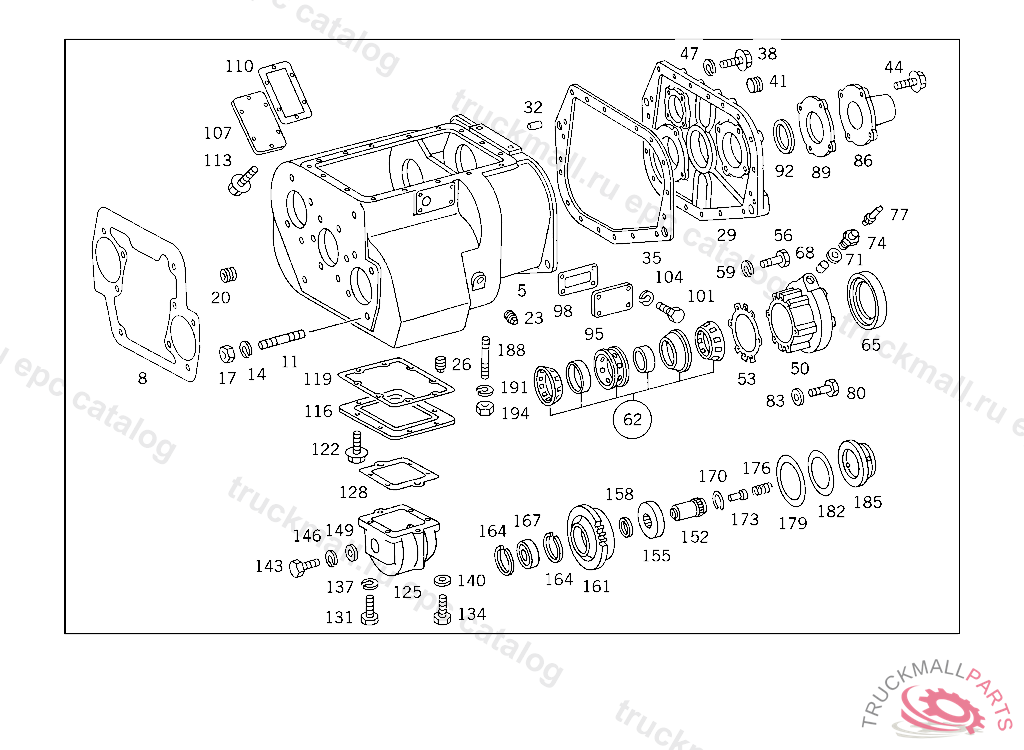

TRANSMISSION CASE
11
STUD , Replaced By: A0002610770
11
STUD TRANSMISSION TO BELL HOUSING
14
LOCK WASHER TRANSMISSION TO BELL HOUSING
14
LOCK WASHER , Replaced By: A0009903947
17
NUT , Replaced By: A0029905751
17
NUT SHIFT CASE TO TRANSMISSION COVER
20
PLUG TRANSMISSION CASE FRONT COVER
23
PLUG OIL FILLING
23
PLUG , Replaced By: A0009971706
26
PLUG OIL FILLING
29
TRANSMISSION CASE COVER REAR
32
DOWEL PIN TRANSMISSION CASE REAR COVER
35
GASKET ADDITIONAL GEARBOX TO TRANSMISSION
38
SCREW COVER TO SHIFT CASE
41
SCREW PLUG GEARSHIFT COVER
44
SCREW ADDITIONAL GEARBOX TO TRANSMISSION, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
44
SCREW SENSOR CABLE TO BRACKET
44
SCREW , Replaced By: A0009901404
44
SCREW , Replaced By: A0009901304
47
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
50
BEARING CAP SPEEDOMETER DRIVE COVER
53
GASKET SPEEDOMETER DRIVE COVER
56
SCREW SENSOR CABLE TO BRACKET
59
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
59
ANGULAR CONTACT BEARING OUTPUT SHAFT, INAPPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
65
SEAL RING OUTPUT FLANGE
68
BUSHING SPEEDOMETER DRIVE
71
SEAL RING SCREW FITTING
74
LOCK NUT SPEEDOMETER DRIVE COVER
77
DRIVE GEAR SPEEDOMETER
80
SCREW BEARING COVER TO ADDITIONAL GEAR GROUP CASE, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES FOR TRANSMISSION RT 12509
83
SEAL RING SPEEDOMETER
83
SEAL RING , Replaced By: A0002641160
86
COVER COUNTERSHAFT,REAR
89
GASKET COVER TO CASE REAR COVER
92
SPACER RING ELONGATED COUNTERSHAFT
95
COVER LEFT LATERAL TOP
98
GASKET TRANSMISSION CASE
101
SCREW TRANSMISSION CASE COVER TO TRANSMISSION CASE
104
LOCK WASHER TOP COVER TO SHIFT CASE, L.H.D., FROM TRANSMISSION N 047285, R.H.D.:FROM TRANSMISSION N 042437 (MANUFACTURED IN FRANCE)
107
TRANSMISSION CASE COVER LATERAL TOP RIGHT
110
GASKET CASE COVER TO TRANSMISSION
113
SCREW BRACKET TO COMPRESSOR, TO BE ADAPTED DURING ASSEMBLY
116
FLANGE CLUTCH BRAKE
119
GASKET TRANSMISSION CASE BOTTOM COVER
122
SCREW , Replaced By: A0059906201
122
SCREW TRANSMISSION CASE BOTTOM COVER
125
HOUSING CLUTCH BRAKE
128
GASKET CASE COVER TO TRANSMISSION
131
SCREW HOUSING,BOTTOM
134
SCREW HOUSING,BOTTOM
137
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
140
SEAL RING SPEEDOMETER
143
SCREW CLUTCH BRAKE
146
LOCK WASHER CLUTCH BRAKE
149
PRESSURE PLATE CLUTCH BRAKE
152
SHAFT CLUTCH BRAKE, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES FOR TRANSMISSION RT 9509C
155
FOLLOWER CLUTCH BRAKE
158
SPACER RING CLUTCH BRAKE
161
INTERMEDIATE GEAR CLUTCH BRAKE
164
SNAP RING CLUTCH BRAKE
167
BALL BEARING CLUTCH BRAKE
170
SNAP RING CLUTCH BRAKE
173
PISTON CLUTCH BRAKE
176
SPRING CLUTCH BRAKE
179
BRAKE DISC OUTSIDE
182
BRAKE DISC INSIDE
185
PRESSURE PLATE CLUTCH BRAKE
