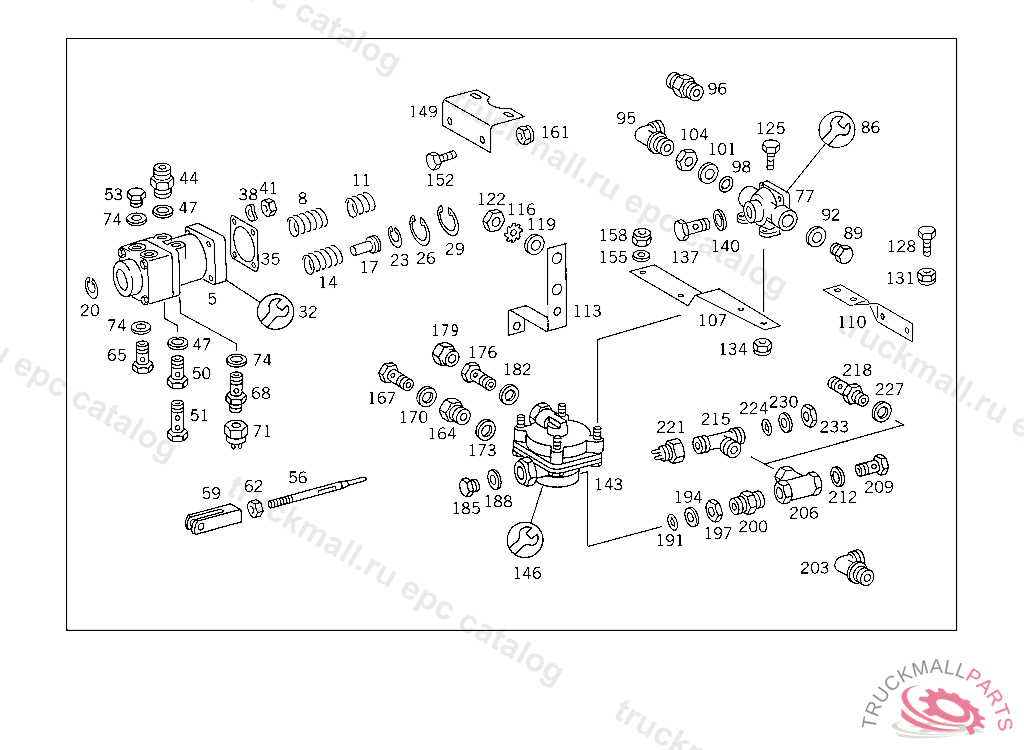

Поз.
Артикул
Описание
5
BRAKE VALVE SERVICE BRAKE KNORR
5
BRAKE VALVE SERVICE BRAKE WABCO
8
SPRINGTO 345 431 70 05
11
SPRINGTO 345 431 70 05
14
SPRINGTO 345 431 71 05
17
PISTONTO 345 431 70 05
17
PISTONTO 345 431 71 05
20
LOCK RINGTO 345 431 71 05
23
LOCK RINGTO 345 431 71 05
26
LOCK RING
29
LOCK RING PLANETARY CARRIER
32
REPAIR KIT SMALL SCOPE TO 345 431 71 05
32
REPAIR KIT LARGE SCOPE TO 345 431 70 05
32
REPAIR KIT SMALL SCOPE TO 345 431 70 05
32
REPAIR KIT , Replaced By: A0014300460
35
GASKET BRAKE SHOE WITH LINING
38
SPRING WASHER BRAKE SHOE WITH LINING
41
NUT BATTERY CASE
44
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
44
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
47
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
51
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
53
SCREW PLUG
56
ROD FROM FITTING TO CLUTCH BOOSTER
59
YOKE
62
NUT FUEL TANK TO SUPPORT
65
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
68
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
71
SWITCH EXHAUST BRAKE,K 251255
71
SWITCH TWO-CIRCUIT BRAKE VALVE
74
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
77
VALVE QUICK-RELEASE VALVE KNORR
77
VALVE (QUICK BREATHER VALVE) WABCO
77
VALVE (QUICK BREATHER VALVE) VARGA
77
VALVE (QUICK BREATHER VALVE) VARGA
77
VALVE , Replaced By: A6934297144
86
REPAIR KITTO A 364 429 70 44
86
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
89
SCREW PLUG
89
SCREW PLUG AT TANK
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
95
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
95
ELBOW FITTING , Replaced By: A3849907071
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
THRUST RING LOCKING VALVE
104
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
107
BRACKET QUICK-RELEASE VALVE
125
SCREW SHIFT LEVER TO BRACKET M8X30
134
NUT HORN TO BRACKET M8
143
VALVE (RELAY VALVE) WABCO
143
VALVE (RELAY VALVE),REAR AXLE
143
VALVE (RELAY VALVE) KNORR
146
REPAIR KIT SMALL SCOPE TO 001 429 68 44
146
REPAIR KITTO 003 429 30 44
146
REPAIR KITTO 003 429 30 44,KNORR
146
REPAIR KITWABCO
146
REPAIR KITKNORR
155
WASHER TRAILER PLUG SOCKET TO BRACKET
158
NUT HORN TO BRACKET M8
164
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
167
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
170
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
173
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
176
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
182
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
185
SCREW PLUG
188
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
191
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
194
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
194
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
194
THRUST RING LOCKING VALVE
197
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
200
FITTING LOCKING VALVE,CONNECTION: "2"
206
VALVE (TRAILER CONTROL VALVE) "KNORR"
206
VALVE TWO-WAY
206
VALVE (TRAILER CONTROL VALVE) "KNORR"
209
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
212
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
215
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
215
T-FITTING TWO-WAY VALVE,CONNECTION: "Z"
221
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
221
SWITCH SUPPLY PRESSURE,5 966147
221
SWITCH
224
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
230
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
230
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
230
THRUST RING LOCKING VALVE
233
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
VALVE BODYTO 002 429 95 44
999
DIAPHRAGM ,058011
999
SEAL RING ,058011
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
