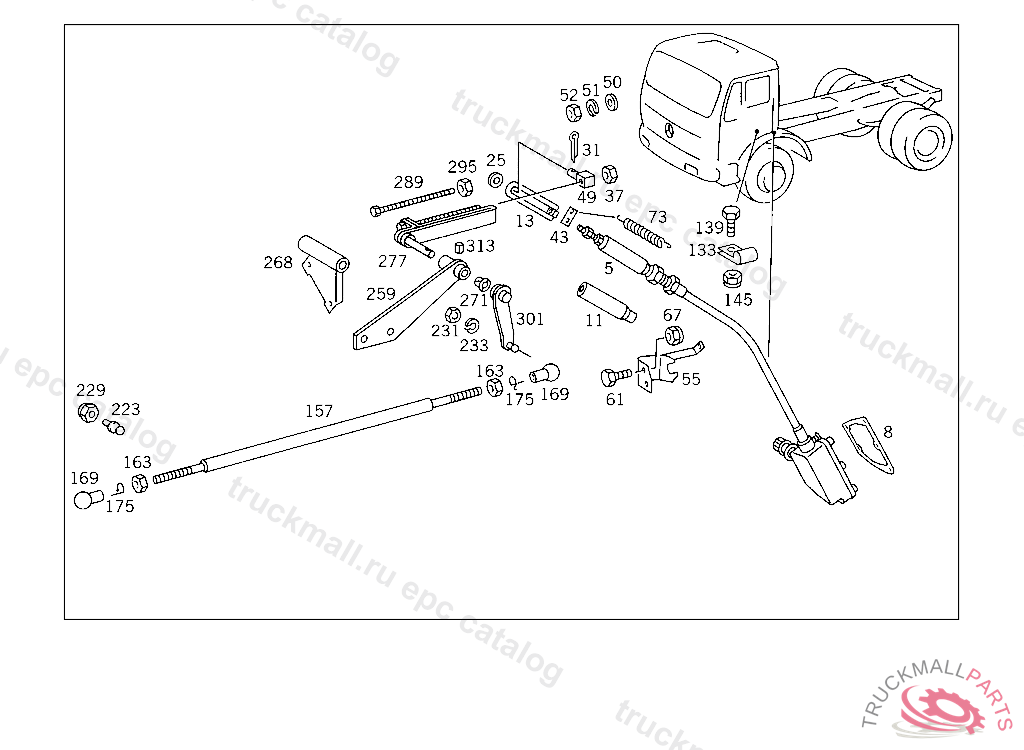

Поз.
Артикул
Описание
5
MODULATOR
5
MODULATOR
5
MODULATOR
8
GASKET
11
BOOT
13
END PIECE MODULATOR
13
END PIECE MODULATOR
13
END PIECE MODULATOR
25
WASHER RADIATOR TO RUBBER MOUNTING
25
WASHER , Replaced By: N000125010532
31
COTTER PIN CYLINDER TO BRACKET
37
NUT BALL PIVOT TO LEVER
43
BRACKET MODULATOR
49
PIN MODULATOR TO ENGINE CONTROL SHAFT
49
PIN FOR SPRING
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
WASHER COMPRESSED AIR LINE TO BRACKET
51
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
52
NUT BALL PIVOT TO LEVER
55
BRACKET RELEASE SPRING AND ENGINE SUPPORT
61
SCREW PIPE CLAMP
61
SCREW , Replaced By: N304017008021
67
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
67
NUT , Replaced By: N913004008001
73
SPRING MODULATOR
73
SPRING BOWDEN CABLE TO BRACKET
73
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
133
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
139
SCREW , Replaced By: N304017006018
139
SCREW COVER PLATE TO COVER PLATE M 6 X 12
145
NUT , Replaced By: N913004006001
145
NUT PUMP TO BRACKET
157
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
157
ROD PULL ROD
163
NUT BALL PIVOT TO LEVER
169
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
175
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
223
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
223
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
229
NUT PUMP TO BRACKET
229
NUT , Replaced By: N913004006001
231
NUT BALL PIVOT TO LEVER
233
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
259
BEARING TUBE MOUNTING
268
BRACKET MOUNTING
271
BUSHING MOUNTING
271
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
277
SHAFT MOUNTING
289
SCREW APPARATUS PLATE M 6X150
295
NUT BALL PIVOT TO LEVER
301
LEVER MOUNTING
313
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
313
CLAMPING SLEEVE , Replaced By: N308752004001
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
BRACKET WIRE CABLE TO ENGINE
999
BRACKET WIRE CABLE, NOT USED
999
BRACKET WIRE CABLE, NOT USED
999
ROD PULL ROD
999
LEVER , Replaced By: A6253000128
999
LEVER MODULATOR
999
BRACKET WIRE CABLE, NOT USED
999
WIRE CABLE FROM ENGINE TO TRANSMISSION, NOT USED
999
LEVER , Replaced By: A6153000328
999
ROD PULL ROD
999
BRACKET FLYWHEEL HOUSING
999
COVERING , Replaced By: A6153010088
999
BALL PIVOT LEVER
999
BALL SOCKET FROM REVERSING LEVER TO CONTROL LEVER
999
JOINT , Replaced By: A3009910022, +001A3073010060, +001N071803010102, +001N071805010403
999
SCREW WIRE CABLE TO TRANSMISSION
999
WIRE CABLE MODULATOR TO 000 300 03 62
