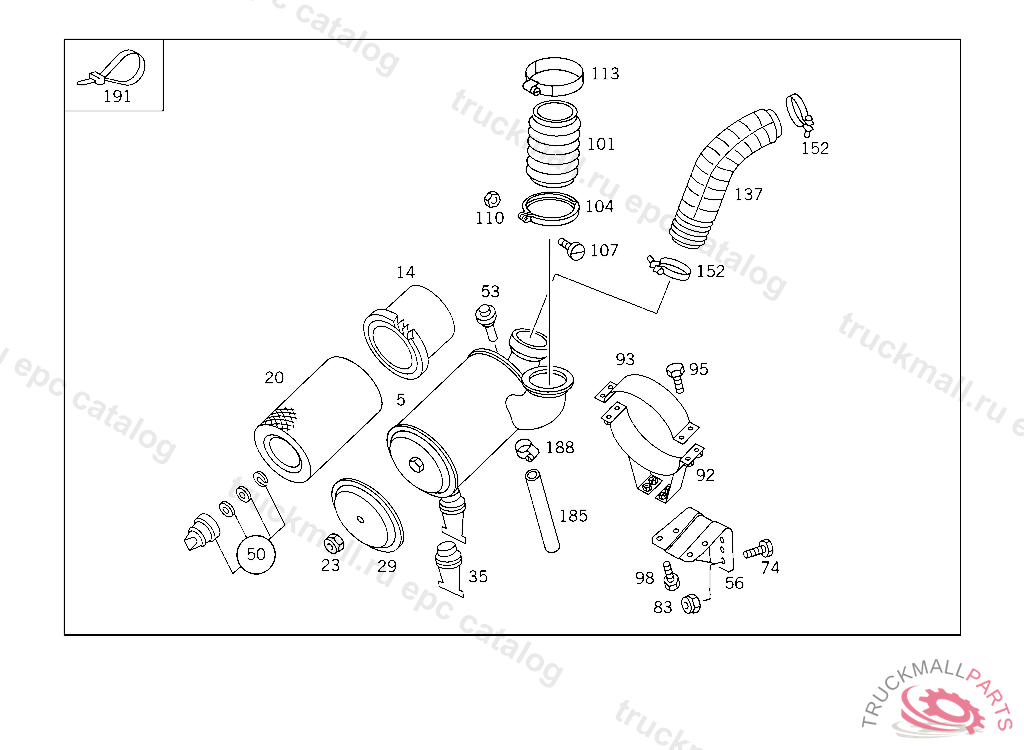

Поз.
Артикул
Описание
5
AIR CLEANERPICLON MANN
5
AIR CLEANER
5
AIR CLEANERPICLON FRAM
20
FILTER ELEMENTTO 394 094 70 01
20
FILTER ELEMENTTO 376 090 82 04
23
NUT INSIDE TO 688 094 71 02, 73 02, 77 02, 00 02
29
COVERTO 386 090 83 01,84 01
35
VALVE
50
NUTTO 376 090 82 04
53
SWITCH
53
SWITCH
53
SWITCH INCLUDED IN RANGE OF DELIVERY OF: TO 376 090 98 04
56
BRACKET AIR CLEANER,FRONT RIGHT
74
SCREW BRACKET TO SIDE MEMBER
83
NUT BRACKET TO LEFT SIDE MEMBER
92
STRAP AIR CLEANER
93
STRAP AIR CLEANER
98
SCREW LINES TO BRACKET
101
BOOT AIR CLEANER
101
BOOT AIR CLEANER
104
CLAMP BELLOWS TO AIR CLEANER
107
SCREW CONTROL UNIT TO BRACKET M 4X12
110
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
113
CLAMP , Replaced By: N000000000678
113
LOOM TIE
137
HOSE , Replaced By: A3845287882
152
CLAMP , Replaced By: N000000000678
152
LOOM TIE
152
CLAMP
185
HOSE 18-MM-DIA. LINE
188
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
188
CLAMP25-40X13 MM
191
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
999
WASHER PARTS KIT TO 376 090 82 04
